Dome Heat Shrinkable Seal Fiber Optic Splice Closure 96 core

The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network。Over FTTX network，fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables

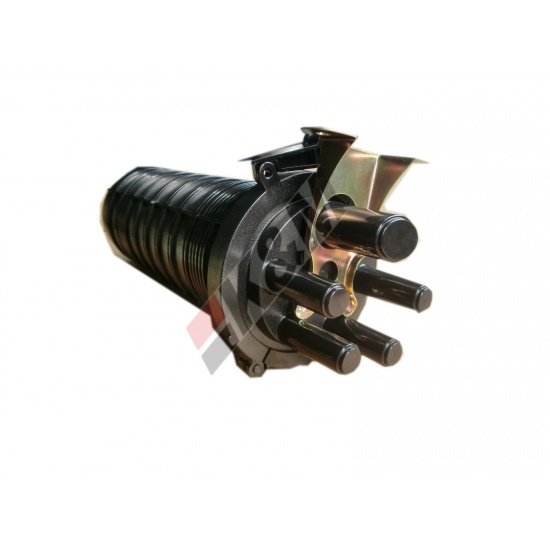

96 core Dome type fiber optic splice closure

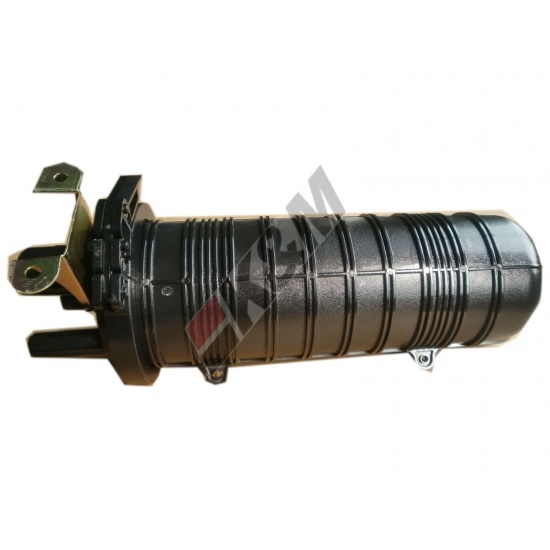

  • 96 core Dome type fiber optic splice closure
  • 96 core Dome type fiber optic splice closure
  • 96 core Dome type fiber optic splice closure

  • Brand:

    K&M

  • Item NO.:

    KDMGJSD003

  • Shipping Port:

    Shenzhen,HongKong

  • Payment:

    TT,LC

  • Color:

    Black

  • Lead Time:

    7-12 days
Contact Now
  • Features & Benefits

Dome Heat Shrinkable Seal Fiber Optic Splice Closure (FOSC)



1.    Scope of application

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

 The scope of application is: aerial, underground, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from –40℃ to +65℃.

2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (Height x Diameter)

440mm×190mm

Weight (excluding outside box)

2350 g— 2600g

Number of inlet/out ports

6 pieces in general

Diameter of fiber cable

Φ8mm～Φ25 mm

Capacity of FOSC

Bunchy: 12-96 (cores), Ribbon: up to 288 (cores)

 2.2 Main components

No.

Name of components

Quantity

Usage

Remarks

1

FOSC cover

1 piece

Protecting fiber cable splices in whole

Height x Diameter

355mm x 150mm

2

Fiber optic splice tray (FOST)

Max. 6 trays (bunchy)

Max. 4 trays (ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)

3

Fiber holding tray

1 pcs

Holding fibers with protective coat



4

Base

1set

Fixing internal and external structure



5

Plastic hoop

1 set

Fixing between FOSC cover and base



6

Seal fitting

1 piece

Sealing between FOSC cover and base



7

Pressure testing valve

1 set

After inject air, it is used for  pressure testing and sealing testing

Configuration as per requirement

8

Earthing deriving device

1 set

Deriving metal parts of fiber cables in FOSC for earthing connection

Configuration as per requirement
