48V 9U 24kW Compact System

HHY48400-H9A3 is an embedded power supply system that supplies power to communication equipment of -48Vdc

series and the maximum output current is 400A.

Moduflex+ 10U 24kW 48V DC Power Core
  • Moduflex+ 10U 24kW 48V DC Power Core
  • Moduflex+ 10U 24kW 48V DC Power Core
  • Moduflex+ 10U 24kW 48V DC Power Core
  • Moduflex+ 10U 24kW 48V DC Power Core
  • Moduflex+ 10U 24kW 48V DC Power Core

  • Product Orgin:

    Shenzhen

  • Brand:

    K&M

  • Shipping Port:

    Shenzhen/HK

  • Payment:

    TT/WU

  • Color:

    Black

  • Lead Time:

    3-4weeks
Contact Now
  • Features & Benefits

HHY48400-H9A3

19’’Rack Mount 9U 24KW DC Power Core

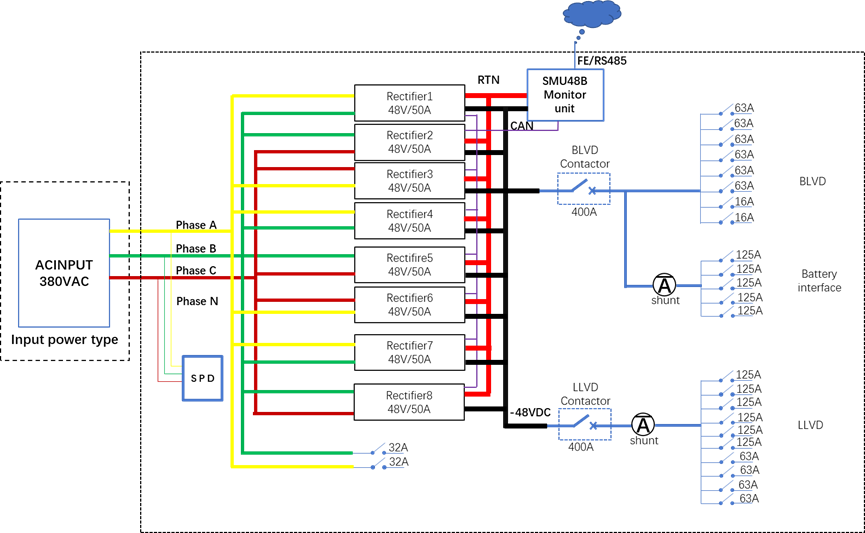

Principle block diagram of power cabinet system

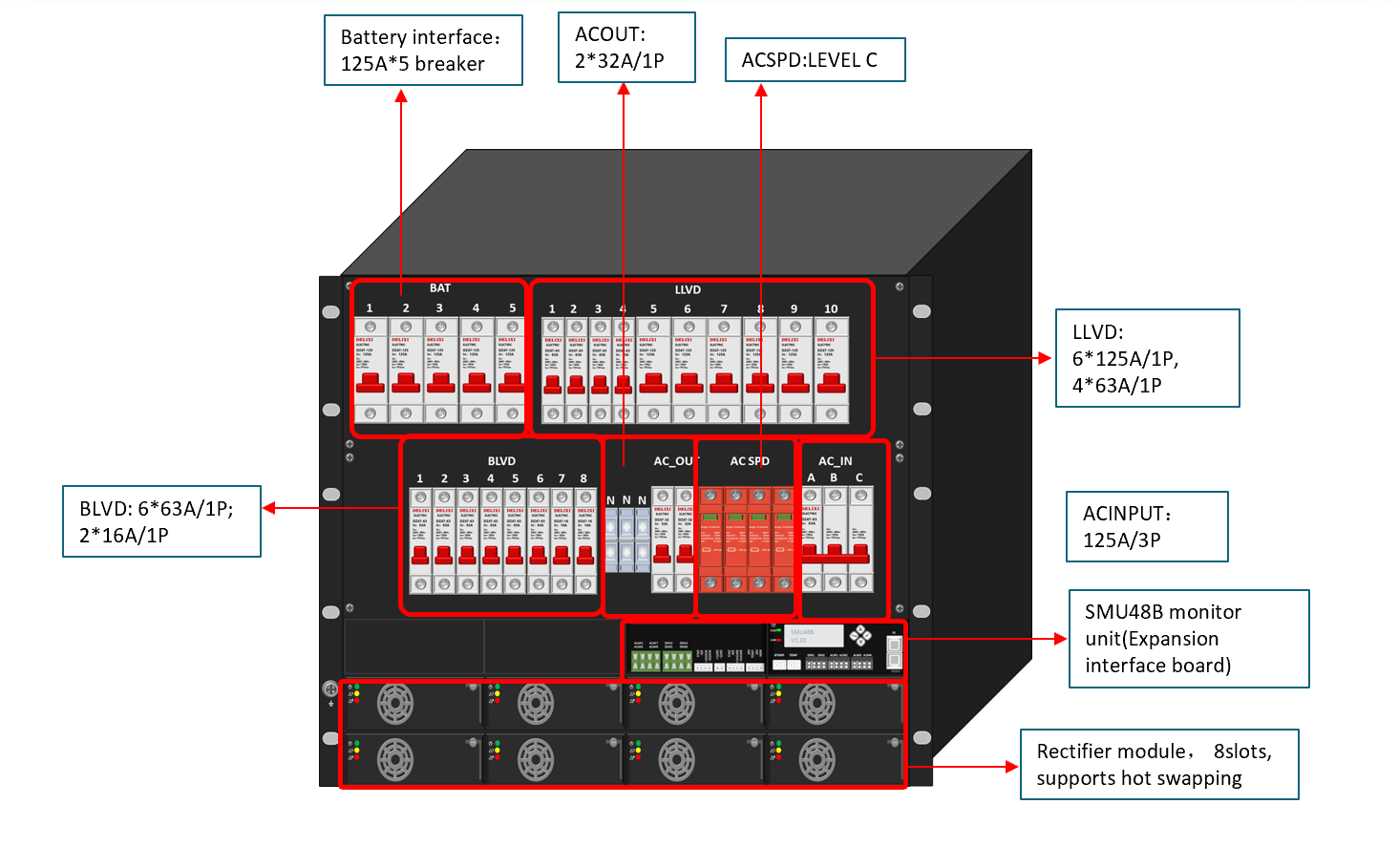

Product structure sketch

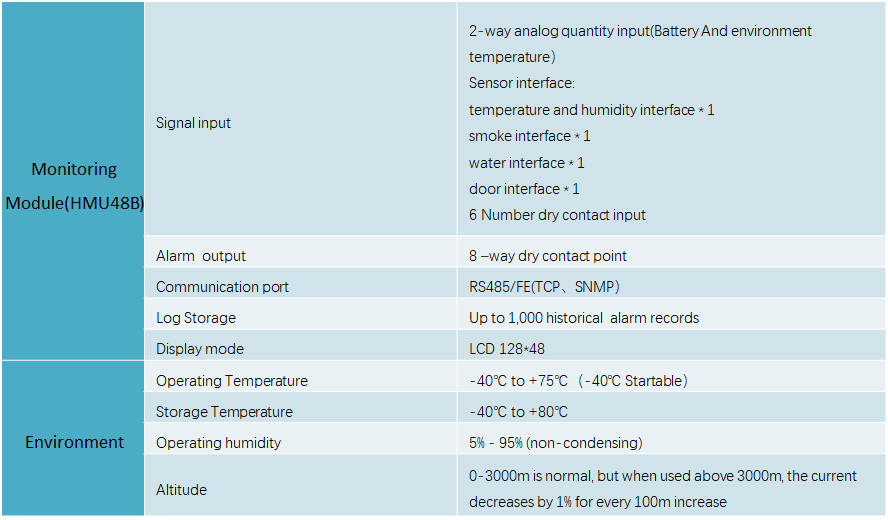

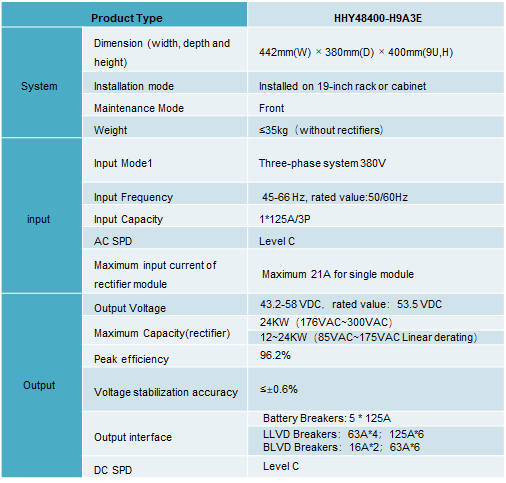

System parameter description（9U）


System parameter description（9U）

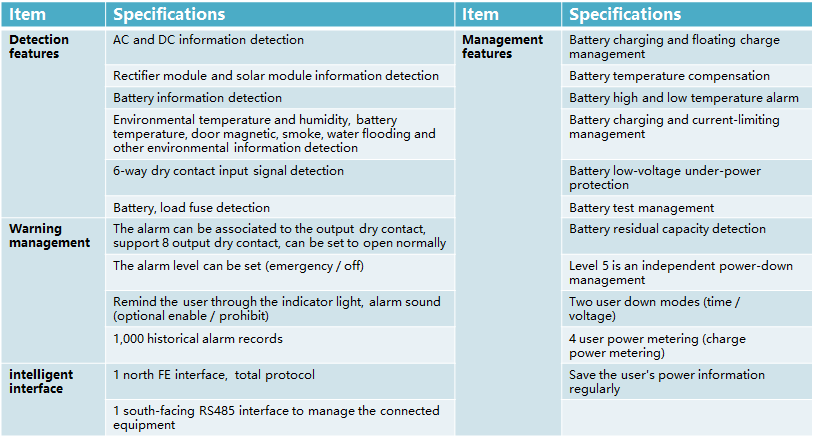

HMU48B monitor unit


HMU48B Monitoring module (hereinafter referred to as “HMU48B") is a small monitoring unit, mainly for different Types Check the operating status of the power system and control the operation of the power system. Provide rich interfaces such as sensor interface, CAN connection The port, RS 485 interface, input / output dry contact interface, etc., can be used to manage the site environment and alarm reporting. It can be provided at the same time Remote communication with the third party network management supporting the general protocol to manage the power system remotely.

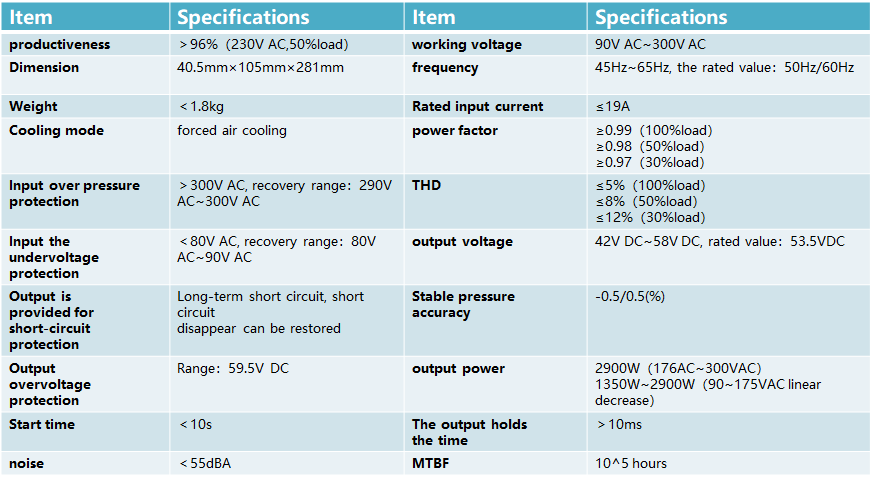

SR4850H-1U Rectifier


SR4850H-1U is a high efficiency, high power density of the digital rectifier module, to achieve a wide range of voltage input, 53.5V The DC has the default output。

It has the advantages of soft start function, perfect protection function, low noise, and parallel use. pass through Power supply monitoring realizes the real-time monitoring of rectification module status and load and output voltage regulation function.



Related Tags :

Moduflex+ 9U 24kW 48V DC Power Core 19’’Rack Mount 9U 24KW DC Power Core DC Power distribution Unit
