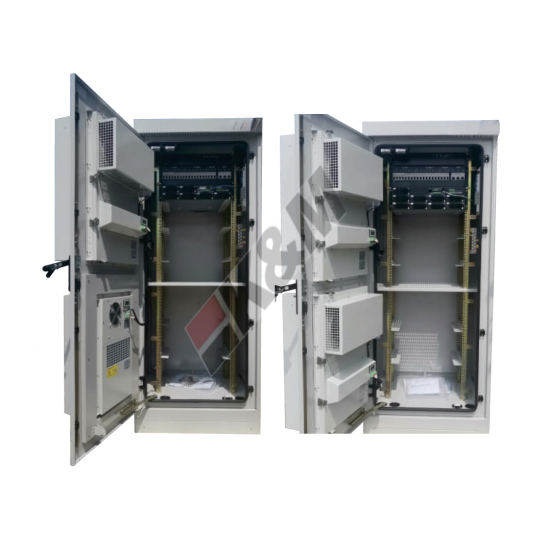

K&M All in One power cabinet provides space for, up to two Nokia AirScale BBU sub racks (6U), user equipment (6U/15kW, 5U/24kW) and either VRLA or Li-ion batteries (16U).
Structure Size
Product Orgin:
ShenzhenBrand:
K&MShipping Port:
Shenzhen/HKPayment:
TT/WUColor:
GrayLead Time:
15days
|
Dimension |
Dimensions of the cabinet:H2100*D800*W750mm (including base) Base: |
|
Weight |
＜250kg |
|
Cooling Mode |
Equipment compartment: Fan: 2 x 175x69mm Filter: F7 (IN) + G4 (OUT) or H12 (IN) + G4 (OUT) Battery differential compartment: Air conditioner, 500W DC heat dissipation ability |
Key Characteristic
• Single row of upper and lower subcontraction cabinet, 11U user space.

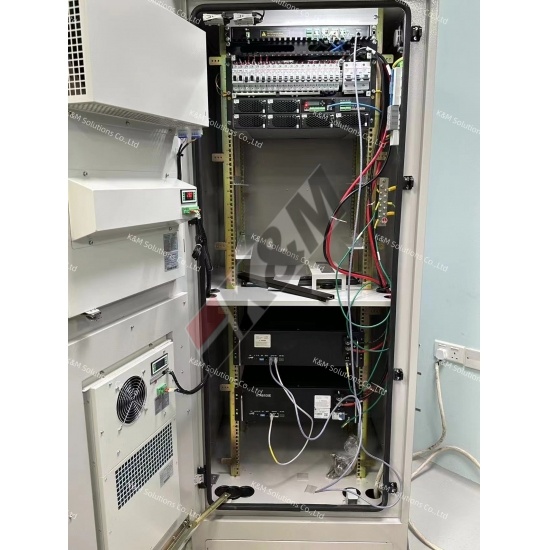

• Install communication equipment in the cabinet, install a lithium battery in the lower cabinet.
• Air conditioning heat dissipation ability: 500W DC
• Modular & Flexible All-In-One solution
• Different power core options - 24 / 15 kW
• High efficiency 3 kW rectifiers
• Different battery options - Li-ion / Lead acid (VRLA)
• Different cooling options - Fan+Filter and DC aircon - Fan+Filter and Fan+Filter
• Front access for optimal layout design
• Protection (IP55) for both equipment and battery compartment
Application
• High-capacity outdoor locations
• Urban hot spot areas
• Stadion / mass event locations
