FIBER Termination Box – 24F

FIBER Termination Box – 24F K&M

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Shipping Port:

    ShenZhen/Hong Kong

  • Payment:

    TT/WU

  • Color:

    grey

  • Lead Time:

    Can be discussed
Contact Now
  • Features & Benefits

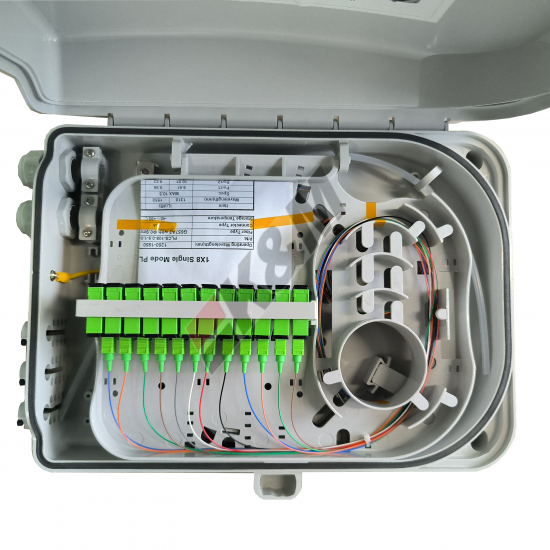

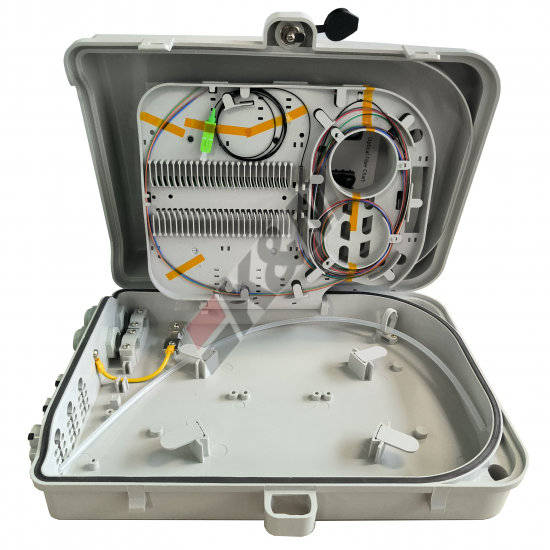

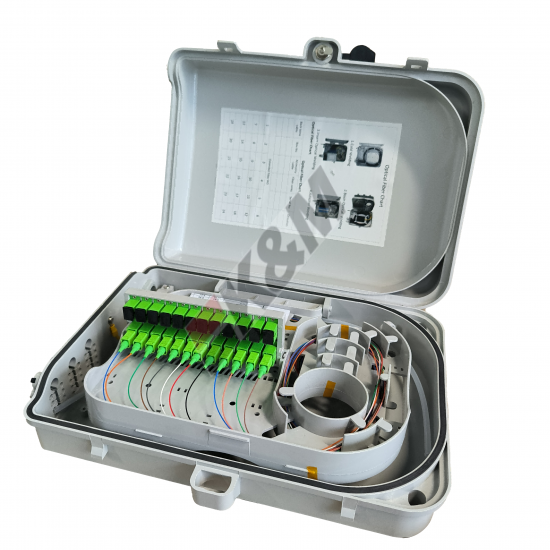

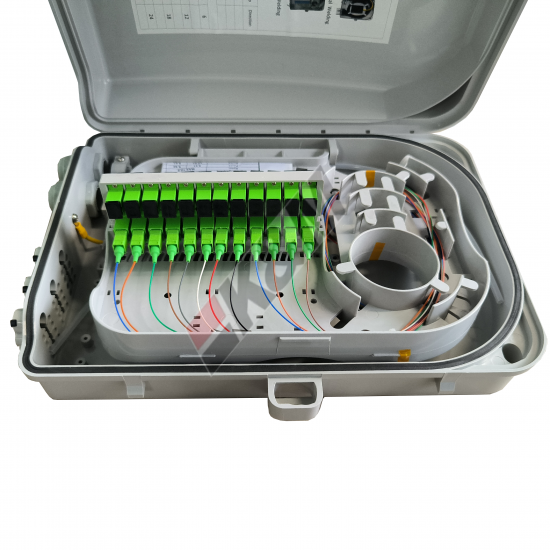

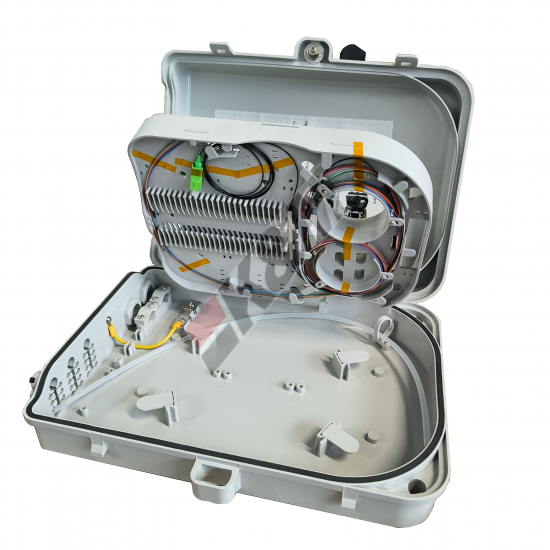

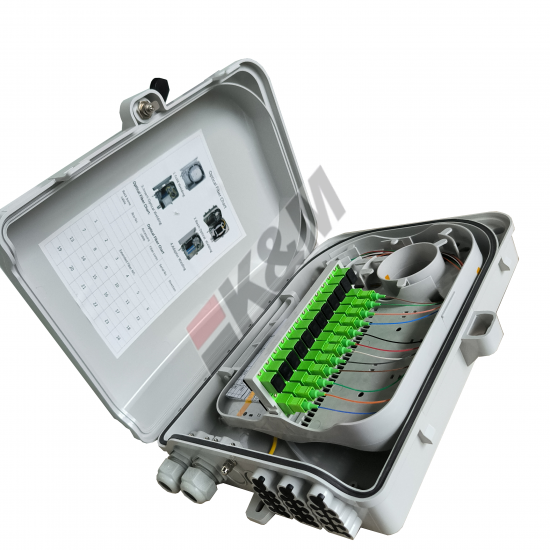

FIBER Termination Box – 24F

Fiber Termination Box (FTB) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber ,the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network

Features
Indoor/Outdoor type
Nonmetallic material
Compacted wall mount type
Simple and clearly arranged incoming and outgoing cable management
Higher fiber count capacity box is available upon request
Easy maintenance ,easy access with front door
Support both mechanical and fusion splicing
Low cost solution with high protection for the terminated fibers
IP65 rated for outdoor applications

Customized design product is available upon request


Applications
FTTX Systems
PON Networks
Fiber Optic Termination

CATV


Specification
Wall Mounted termination box for indoor/outdoor use
Up to 24 Fiber capacity LC duplex(24Pcs) or 24 fiber SC Simplex
Available for SC Simplex Adaptors or LC duplex
Available install 1*4/1*8/1*16 Mini type PLC Splitters as required

Cable entry available for uncut cable

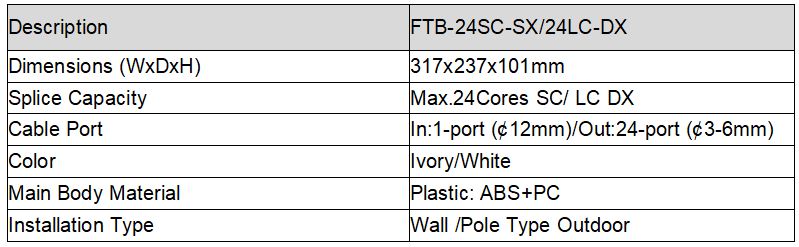

Dimensions

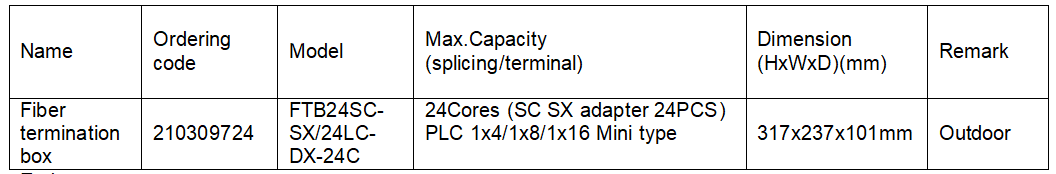

Order information
