Aerial Drop Joint Closure (FAT)

The fiber access termination hub is able to hold up to 16-24 subscribers and 96splicing points as terminal. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Aerial Drop Joint Closure (FAT) K&M

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Shipping Port:

    ShenZhen/Hong Kong

  • Payment:

    TT/WU

  • Color:

    grey

  • Lead Time:

    Can be discussed
Contact Now
  • Features & Benefits


Aerial Drop Joint Closure (FAT)

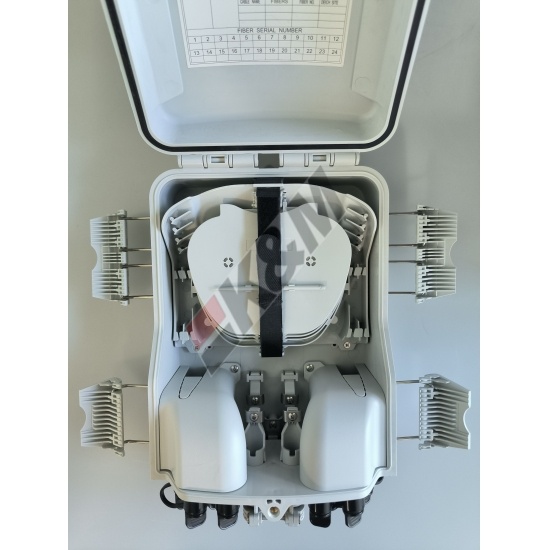

The fiber access termination hub is able to hold up to 16-24 subscribers and 96splicing points as terminal. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.







Features
·Water-proof design with IP-68 Protection Level.
·Material: ABS,PP,PC+ABS
·Integrated with flap-up splice cassette and adaptor holder
·All stainless metal plate and anti-rusting bolts, nuts
·Suitable for the fusion splicer or mechanical splice
· Ability to host 4 mini steel PLC splitters 1:4 or 1:8
·Mechanical sealing structure and mid-span cable entry, Uncut port and 2 separate cable ports

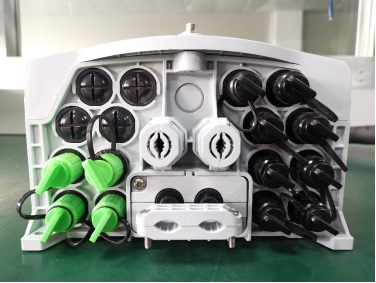

·12 Fast Connect ports divided into two groups: 4 pre-terminated dual LC/APC ports and 8 pre-terminated single SC/APC ports and a minimum of 2 legacy ports for traditional drop cables
·Pole-mounted.

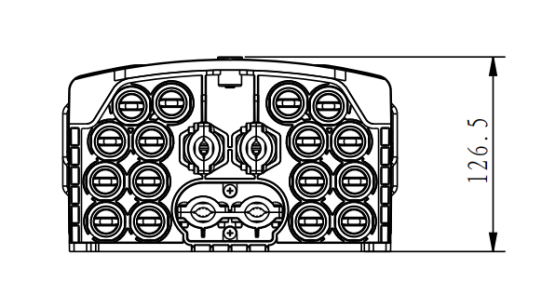

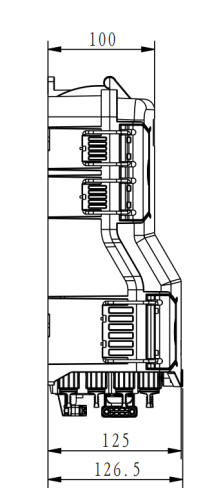

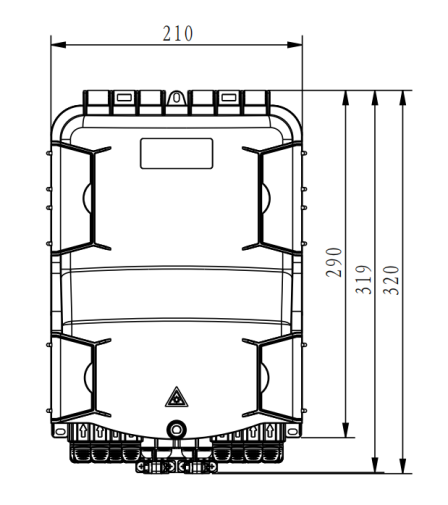

Dimension: H320*W210*D126.5mm

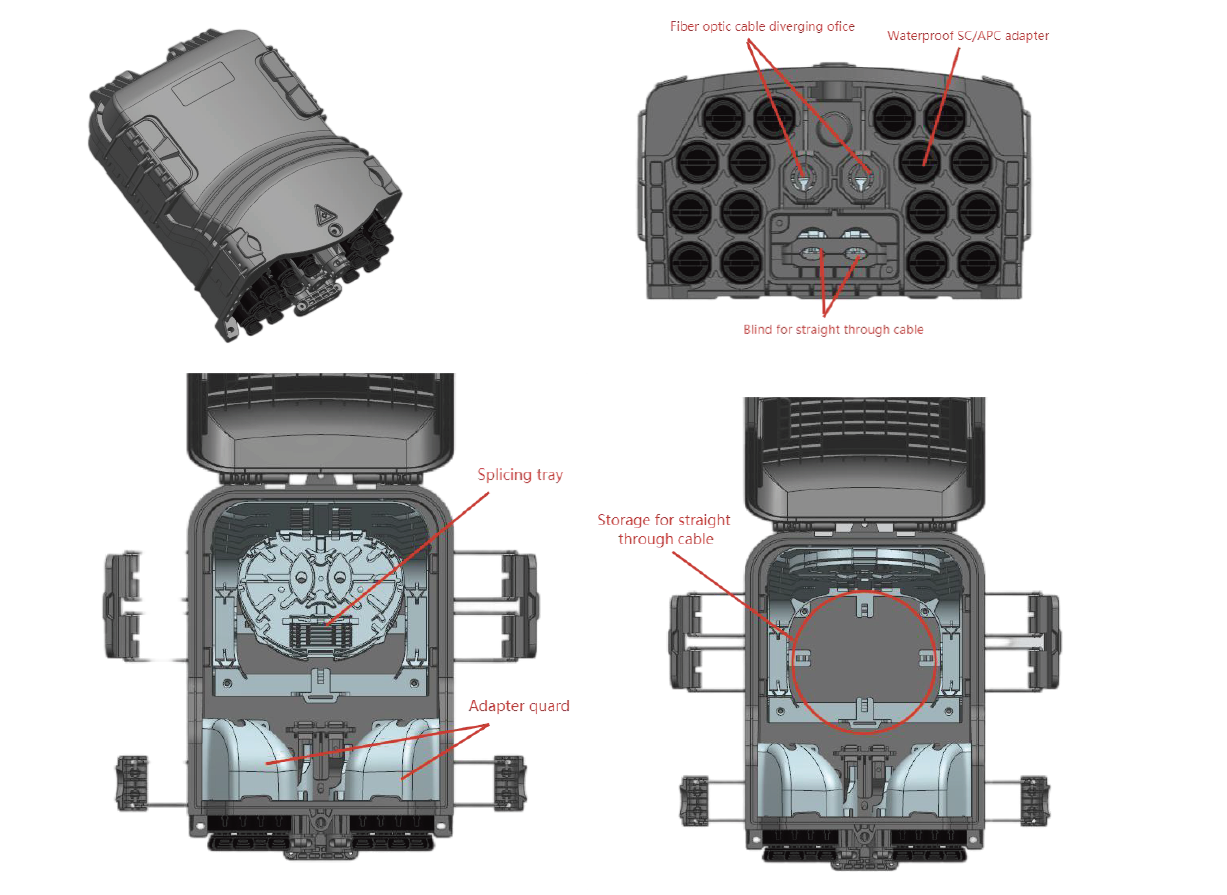

Details

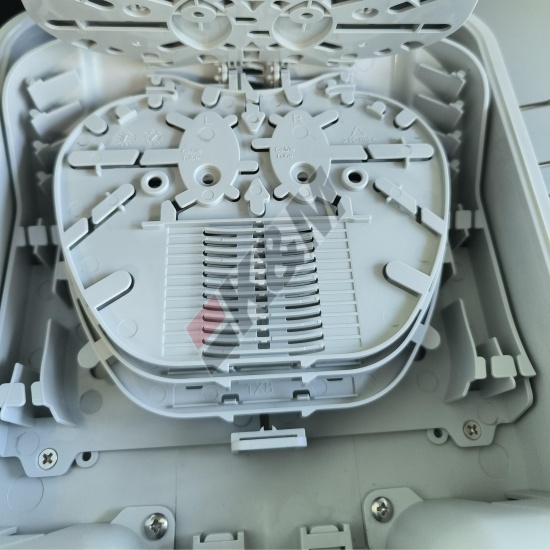

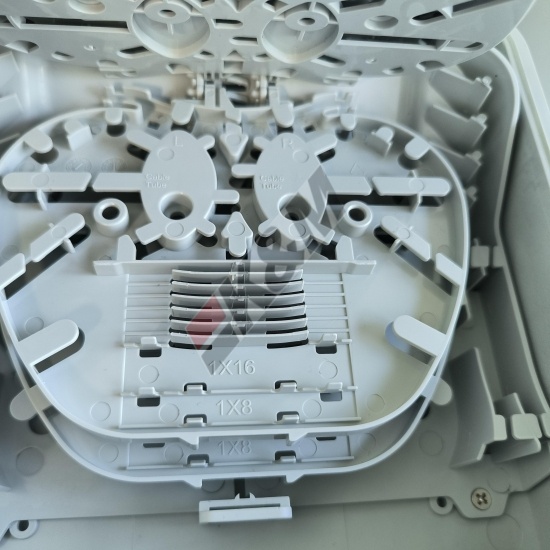

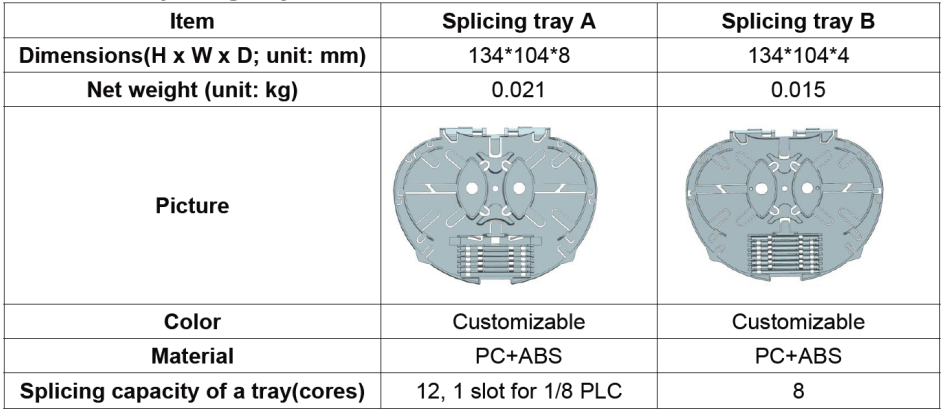

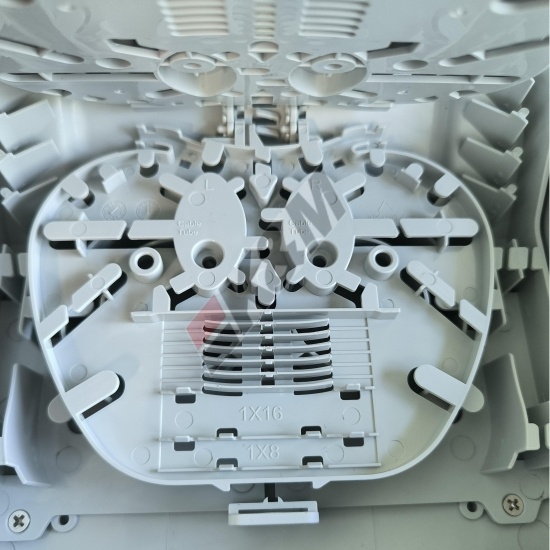

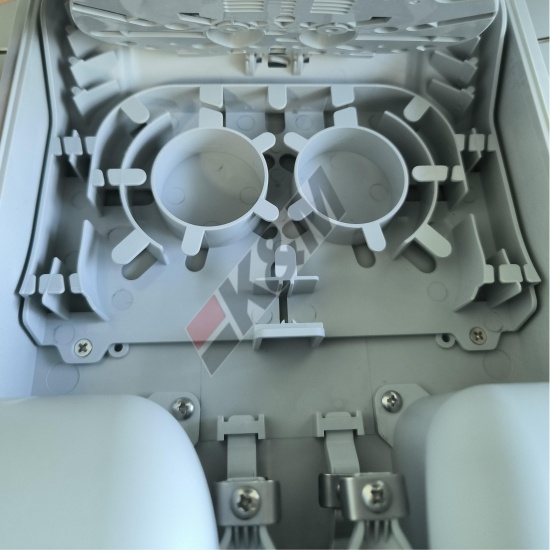

Cassettes:

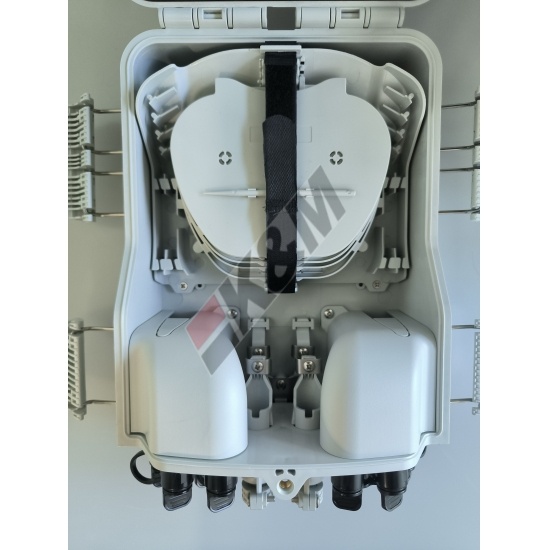

Installation

Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp

cable tube, wrench, cover, holder, rubber seal for cable entrance

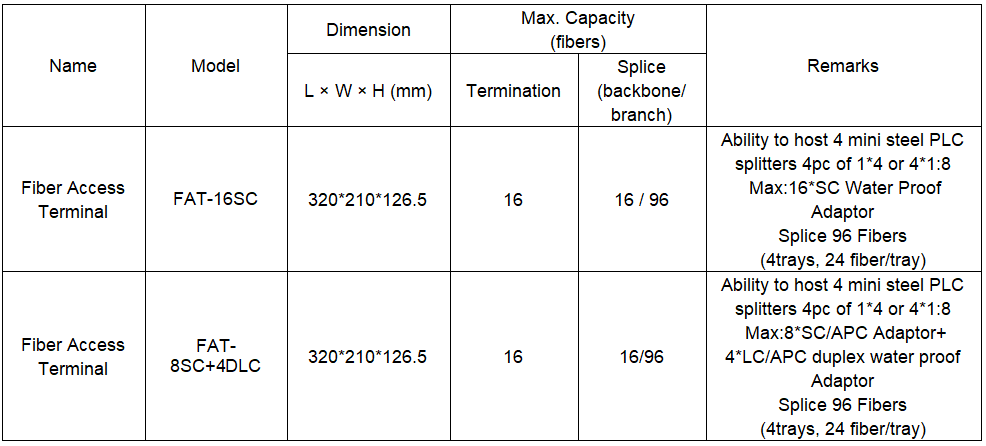

Product Information
