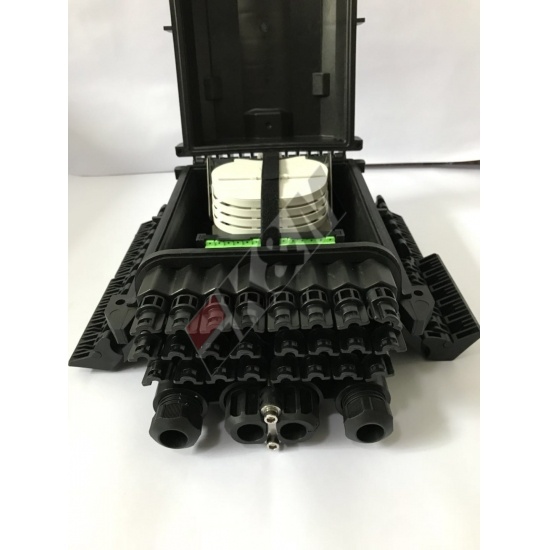

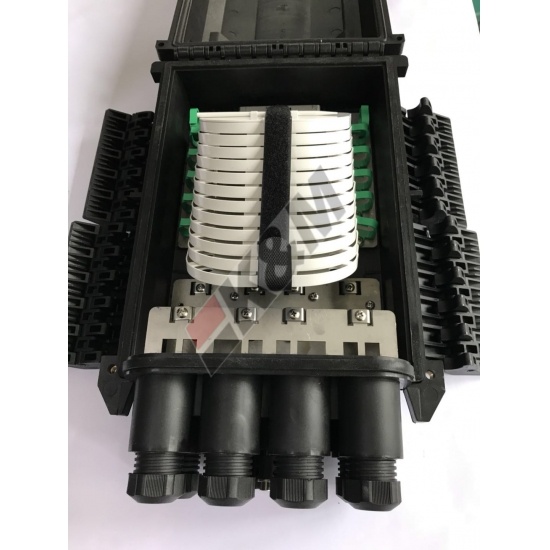

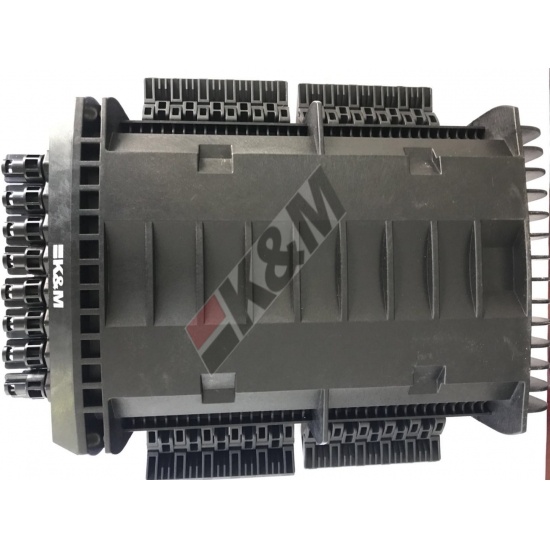

Fiber Access Terminal Closure 288 cores

Fiber Access Terminal Closure
  • Fiber Access Terminal Closure
  • Fiber Access Terminal Closure
  • Fiber Access Terminal Closure
  • Fiber Access Terminal Closure

  • Product Orgin:

    Shenzhen

  • Brand:

    K&M

  • Item NO.:

    KDMFATC288

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU/PayPal

  • Lead Time:

    7 days
Contact Now
  • Features & Benefits



GJS-FATC004 Dome style fiber splices closure

The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network. Over FTTX network fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables。

 Technical specifications

Compliance with YD 814.1-2004 and YD 814.2-2005

 Physical performance

l  Complete bend radius control， the bend radius >30mm

l  Flammability: GB5169.7 Experiment A

l  Ambient condition

l  Operating temperature: -40℃~+65 ℃

l  Relative humidity: ≦ 85% （+30℃）

l  Atmospheric pressure： 70~106kP

l  Storage temperature:-25℃~+60 ℃

l  Voltage Strength: under 15KV direct current, without breakdown or flashover phenomenon.

l  Insulation Resistance: ≥2×104MΩ

l  Tensile Force: ≥800N

l  Leakproofness: inflate the closure, making internal pressure to 100Kpa，then put the closure into the water over 15min, without any bubbles or pressure drop happened.

l  Impact Strength: can bear 16N.m.after 3 impact times; there is no crack on the body.

 Dimension and Capacity

Outside dimension (MM)

395mmX245X130mm

Weight (excluding outside box)

5Kg

Number of inlet/out ports

1 input cable port for un-cut cable from diameter 10-17.5mm,6 output cable port for cable diameter from 8-17.5mm

Splice Tray Qty

1-12Pcs

Capacity of FOSC

Single fiber up to 288 (cores)

 Ordering information

Product Name

Ordering code

Model

Dimension

Splice capacity

(fiber)

Cable Inlet

Remarks

Bundle

Dome fiber splice closure



Body

0801008802

GJS-FATC004

395mmX245X130mm

288

1 input cable port for un-cut cable from diameter 10-17.5mm,6 output cable port for cable diameter from 8-17.5mm）



Splice stry

080103043

RJ-J203

\

24

12Pcs
