Dome style fiber splices closure 144 cores

The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network. Over FTTX network fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables

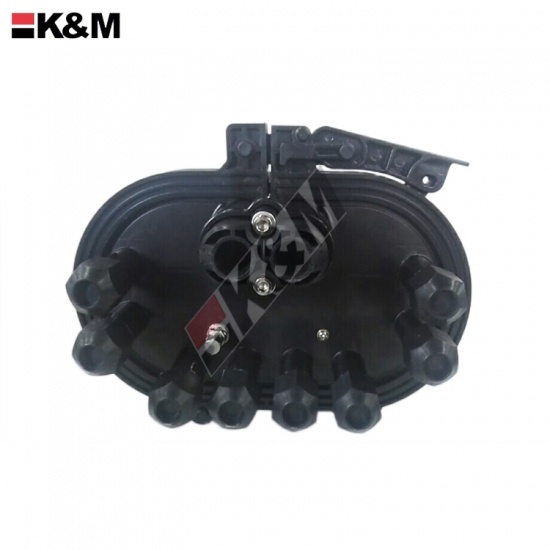

144 core Dome type fiber optic splice closure
  • 144 core Dome type fiber optic splice closure
  • 144 core Dome type fiber optic splice closure
  • 144 core Dome type fiber optic splice closure

  • Brand:

    K&M

  • Item NO.:

    KDMGJSHH144

  • Shipping Port:

    Shenzhen,HongKong

  • Payment:

    TT,LC,WU

  • Color:

    Black

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network. Over FTTX network fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables

Technical specifications

Compliance with YD 814.1-2004 and YD 814.2-2005

 Physical performance



    • l  Complete bend radius control， the bend radius >30mm

    • l  Flammability: GB5169.7 Experiment A

    • l  Ambient condition

    • l  Operating temperature: -40℃~+65 ℃

    • l  Relative humidity: ≦ 85% （+30℃）

    • l  Atmospheric pressure： 70~106kP

    • l  Storage temperature:-25℃~+60 ℃

    • l  Voltage Strength: under 15KV direct current, without breakdown or flashover phenomenon.

    • l  Insulation Resistance: ≥2×104MΩ

    • l  Tensile Force: ≥800N

    • l  Leakproofness: inflate the closure, making internal pressure to 100Kpa，then put the closure into the water over 15min, without any bubbles or pressure drop happened.

    • l  Impact Strength: can bear 16N.m.after 3 impact times; there is no crack on the body.

 Features:

l  Can be installed in overhead, buried, wall and pipe wall

l  Plastic parts are made of high quality anti-aging engineering plastics, and metal parts are made of high quality materials.

l  Box seal and cable access hole are quick and easy to seal and can be used repeatedly.

l   Cable port adopts “spin-type mechanical seal”, and the non-cut cable port adopts “direct pressure mechanical seal” to support re-packaging.

l  Select the splice tray for strip or integrated bundled fiber, arbitrarily configurable within the maximum capacity

l  Splice tray has large storage space and the flip angle is greater than 90°. It is convenient for maintenance and expansion.

l  There is a cable fixing structure inside, and the cable is safer and more reliable. Fast and easy sealing of closure body and optical cable openings

l  Service life not less than 20 years

l  IP degree：IP68

Ordering information

Product Name

Ordering code

Model

Dimension

Splice capacity

(fiber)



Max Splitting

Cable Inlet

Remarks

Bundle/ribbon

Dome fiber splice closure



Body

08010100

KDMGJS-HH-144

380*280*200（L*W*H）

144





2-inlet Ф13mm

8-outletФ10mm

Inlet cable diameter:

Ф13 circle soft cable figure 8 soft cable

Ф10 cable

Splice stry

080103040

RJ-J202

\

12



\

Max splice tray: 12Pcs
