Product Orgin:
Shenzhen ChinaBrand:
K&MItem NO.:
KDMCA0001Shipping Port:
Shenzhen/hkPayment:
FOB/EXW/CIF/DPPrice:
$900/PcsMarket Price:
$1500Price Range:
50-1000/800$Color:
GrayLead Time:
As per Qty

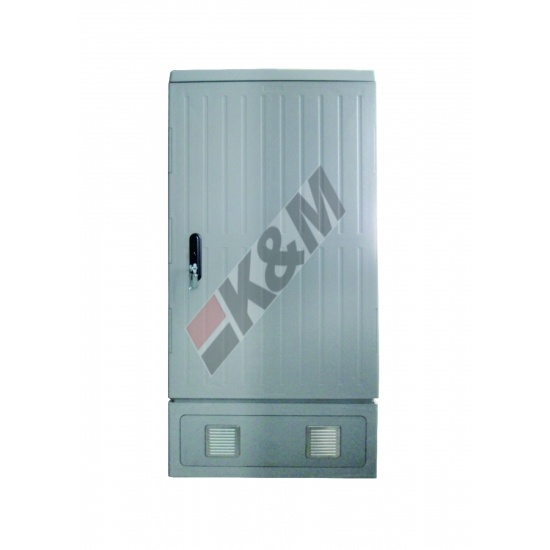

FIBER DISTRIBUTION HUB – OUTDOOR (STREET CABINET)
The Outdoor Fiber Distribution Hub / Street Cabinets accommodate passive components, for spliced, cross-connect and splitter applications to serve different fiber optic and FTTH/FTTX network architectures. It has high-density fiber connectivity, weather proof design and specifications. It is the best choice for the outdoor solutions
Stainless steel material
Outdoor painted coating
Double layer with heat-assistance filled-in material

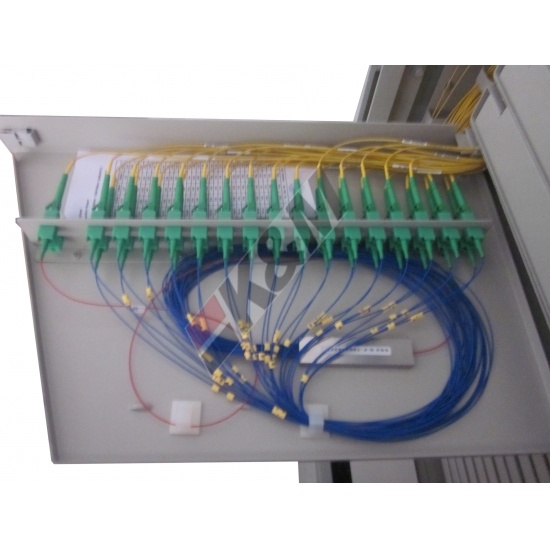

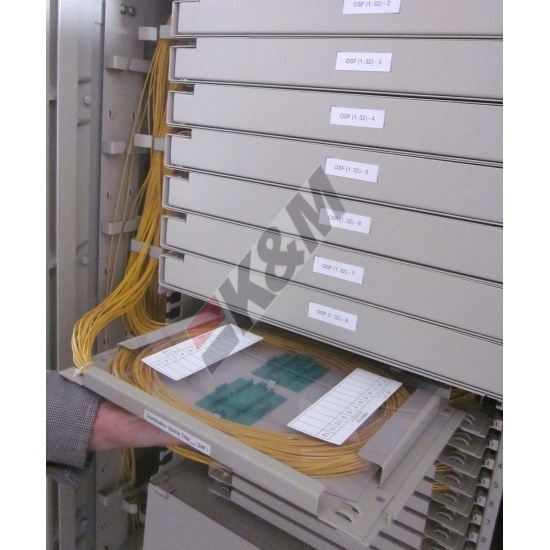

Optional location for splitter modules
Applicable for both single fiber and ribbon fiber
Reliable fiber storage and protection function
Built in cable management
Single door, front single-side operation
Perfect fiber route design to ensure bend radius of fibers
Whole hinge 3 points lock
Distribution, Interconnect and splitter applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Specification
Up to 6 splitters (extra splitters up on request)
Capacity 144/288 fibers
IP rating: IP65
Operating temperature -40°C to + 60ºC
Storage temperature -25°C to + 55ºC
Connector type: SC, LC, ST, FC
Connector attenuation ≤ 0.35 dB
Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB
Number of termination > 500 times
Dimensions
Description |
Dimension (H x W x D mm) |
T1 |
1500 x 750 x 320 |
T2 |
1500 x 750 x 320 |
T3 |
1000 x 600 x 300 |
Ordering Information
FDH with PLC Splitter |
|
Description |
Part No. |
Fiber Distribution Hub with PLC Splitter |
KMFDHOTaxyyzzbn |
Ta: Cabinet type (T1, T2, T3)
x: Number of splitter inputs (1,2)
yy: Number of output channels (2, 4, 8,16, 32)
zz: Connector type (SC, LC, ST, FC)
b: Connector surface type (U=UPC, A=APC)
n: Fiber type (A=G657A, D=G652D)
Ordering Sample: KMFDHOT1132SCAD (FDH, Outdoor, Type T1, PLC Splitter 1:32, SC connector, APC, G652D)
