Optical Cable Assembly DLC-DLC Multi-mode GYFJH-2A1a (LSZH) 7.0mm 2 Cores 0.03m/0.34m 2mm Outdoor Branch Cable

Outdoor Waterproof Patch Cord mainly used in ocean communication, airborne communication, military, and very harsh environments like extremely acid, hydrochloric and humid

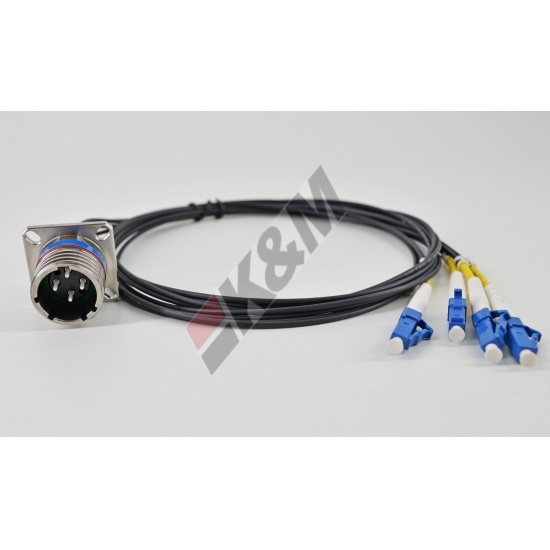

FTTA Fiber Optical Patch Cord
  • FTTA Fiber Optical Patch Cord
  • FTTA Fiber Optical Patch Cord
  • FTTA Fiber Optical Patch Cord

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDM-FTTA-LC

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/LC/WU

  • Price:

    $32/Pcs

  • Market Price:

    $40

  • Price Range:

    500-1000/20$

  • Color:

    Black

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

Optical Cable Assembly DLC-DLC Multi-mode GYFJH-2A1a (LSZH) 7.0mm 2 Cores 0.03m/0.34m 2mm Outdoor Branch Cable

Features And Applications

Outdoor waterproof fiber optic connector applies tri-start thread and five-key positioning, it’s anti-vibration and wrongly plugging can be avoided. Made with stainless steel 316L, it’s featured as high-density, anti-electromagnetic shielding, loss insertion loss, high reliability, and easy to install with removable parts. And it’s also water/ dust proof, and anti-corrosion.

It’s mainly used in ocean communication, airborne communication, military, and very harsh environments like extremely acid, hydrochloric and humid.

1core, 4cores, 8cores and 12cores are optional.


Connector Specification

Insertion Loss

SM

≤1.5dB

MM

≤1.0dB

Return Loss

SM

≥50dB

Mechanical Features

Plug

≤1000N(main cable)

Socket

≤100N(Branch cables)

Operating Temperature



-40C ~ +85C

Grade



IP68



Cable parameter

Cable diameter

4.0mm/ 7.0mm/ 8.0mm

Material of jacket

TPU

Filling

Kevlar

Fiber

SM or MM

Coating of fiber

900um tight buffer

Tensile

Short term- 1200N; Long term- 600N

Operating Temperature

-40C ~ +85C

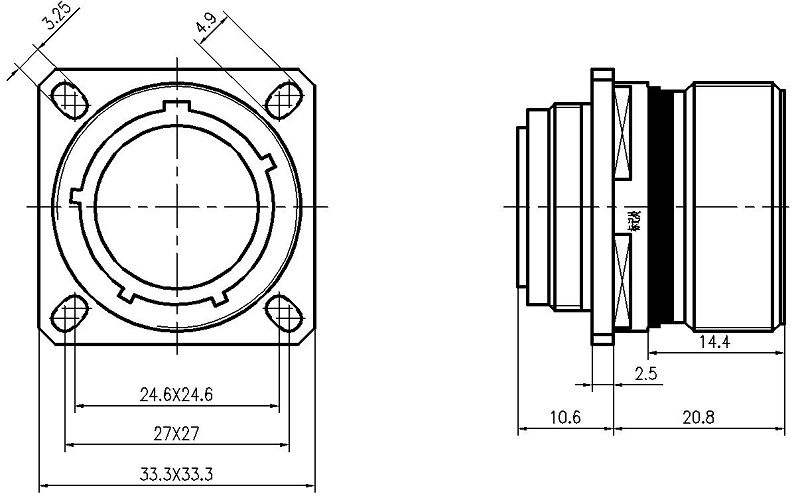

Drawing
