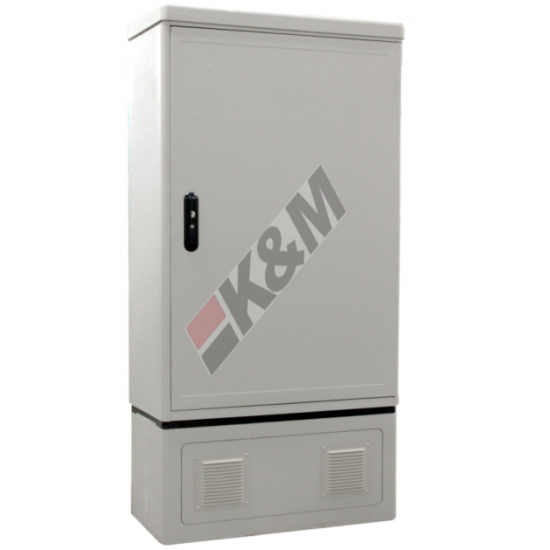

KDM218-T2 is a kind of single-sided FDH outdoor cabinet; it is mainly using for the fiber cable’s connection, distribution and management between each fiber distribution hubs, especially for the FTTH applications.
Product Orgin:
Shenzhen ChinaBrand:
K&MItem NO.:
KDMFDT-144/288Shipping Port:
Shenzhen/hkPayment:
TT/WUColor:
GrayLead Time:
As per Qty

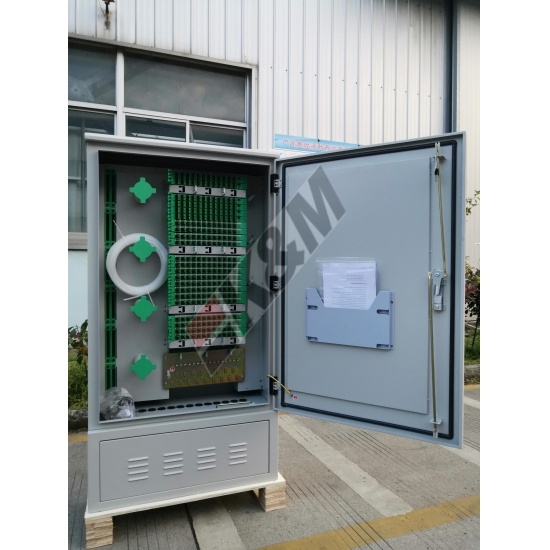

FIBER DISTRIBUTION HUB – OUTDOOR (STREET CABINET)
The Outdoor Fiber Distribution Hub / Street Cabinets accommodate passive components, for spliced, cross-connect and splitter applications to serve different fiber optic and FTTH/FTTX network architectures. It has high-density fiber connectivity, weather proof design and specifications. It is the best choice for the outdoor solutions
Stainless steel material

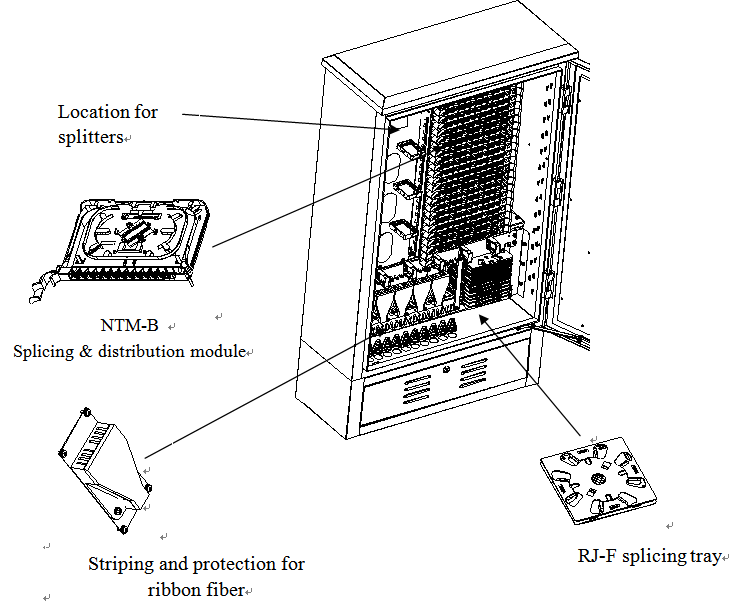

NTM-B module design
Outdoor painted coating
Double layer with heat-assistance filled-in material
Optional location for splitter modules
Applicable for both single fiber and ribbon fiber
Reliable fiber storage and protection function
Built in cable management
Single door, front single-side operation
Perfect fiber route design to ensure bend radius of fibers

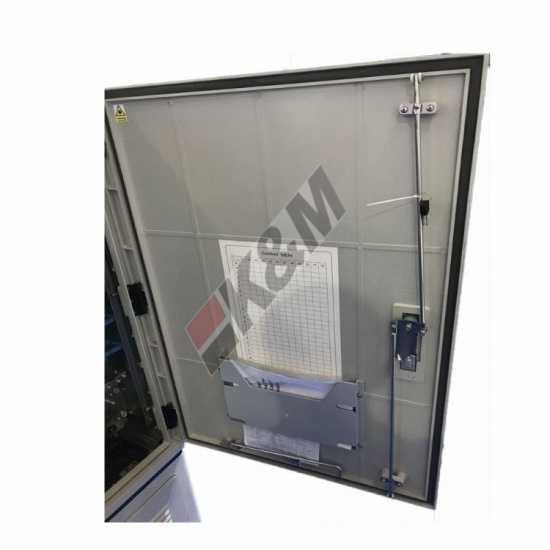

Whole hinge 3 points lock
Distribution, Interconnect and splitter applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Specification
Up to 6 splitters (extra splitters up on request)
Capacity 144/288 fibers
IP rating: IP65
Operating temperature -40°C to + 60ºC
Storage temperature -25°C to + 55ºC
Connector type: SC, LC, ST, FC
Connector attenuation ≤ 0.35 dB
Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB
Number of termination > 500 times
Dimensions
|
Description |
Dimension (H x W x D mm) |
|
T1 |
1300 x 750 x 320 |
|
T2 |
1500 x 750 x 320 |
|
T3 |
1000 x 600 x 300 |
