PDLC-DLC Waterproof Fiber Patch Cord G657A2 fiber, armored branch with Corrugated PVC tube Protection


Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord
  • Fiber Patch Cord

  • Product Orgin:

    Shenzhen

  • Brand:

    K&M

  • Shipping Port:

    Shenzhen/HK

  • Payment:

    TT

  • Color:

    Black

  • Lead Time:

    Can be discussed
Contact Now
  • Features & Benefits

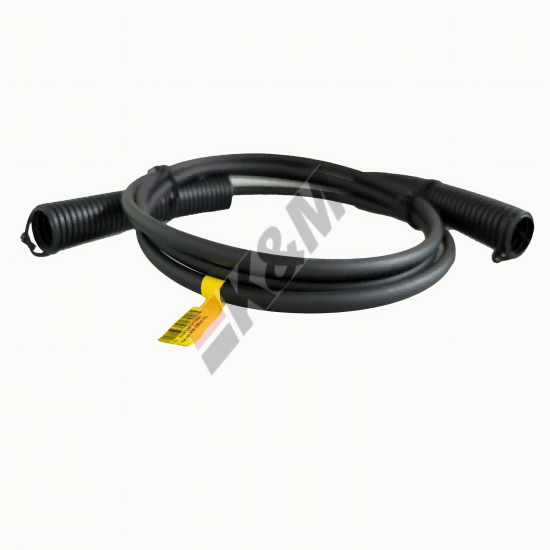

PDLC-DLC Waterproof Fiber Patch Cord G657A2 fiber, armored branch with Corrugated PVC tube Protection

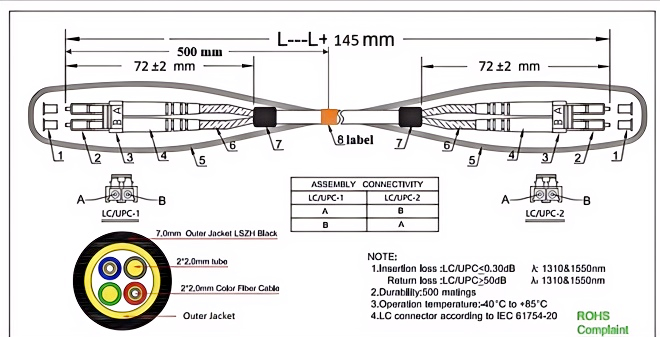

Note:

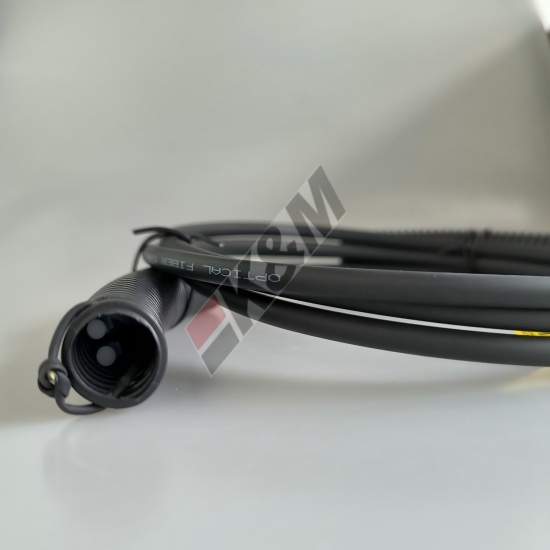

          1. Dust-proof cap

          2. LC/UPC duplex connector

          3. Identifier

          4. 15mm/19.5mm short White boot

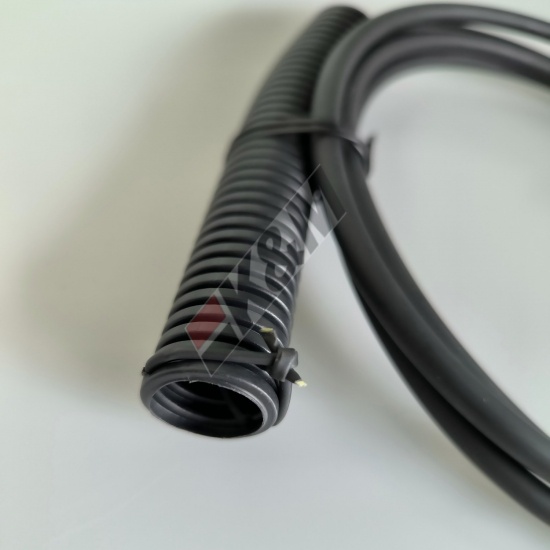

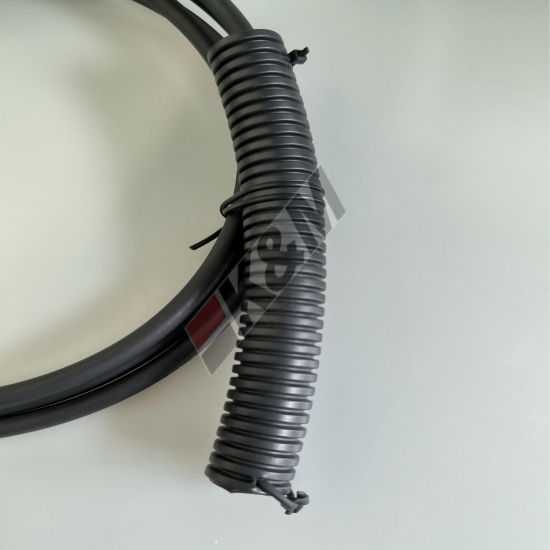

          5. Corrugated PVC tube protection diameter 20mm length140mm both sides

          6. 2.8mm armored branch length is 30mm both sides

          7. Double wall heat shrinkable tube, 20mm long installed with epoxy glue

          8. The position of the label – 0.5m from tip of the optical connectors.

          9. Cable’s sheath has been successfully tested after exposed for 1000h to UV xenox lamp test per EN 50289-4-17 Method A


Specification：

          1. GYFJH Cable：7.0mm SM Duplex Breakout fiber optic cable

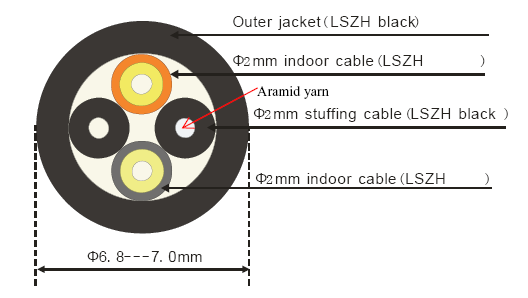

          1.1 Structure:


         1.2 Application

                Mainly used in wireless base station horizontal and vertical cabling

         1.3 Features

                  1. Good mechanical and environmental characteristics;

                  2. Flame retardant characteristics meet the requirements of relevant standards;

                  3. the mechanical characteristics of jacket meet the requirements of relevant standards;

                  4. Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

                  5. Cable’s sheath has been successfully tested after exposed for 1000h to UV xenox lamp test per EN 50289-4-17 Method A

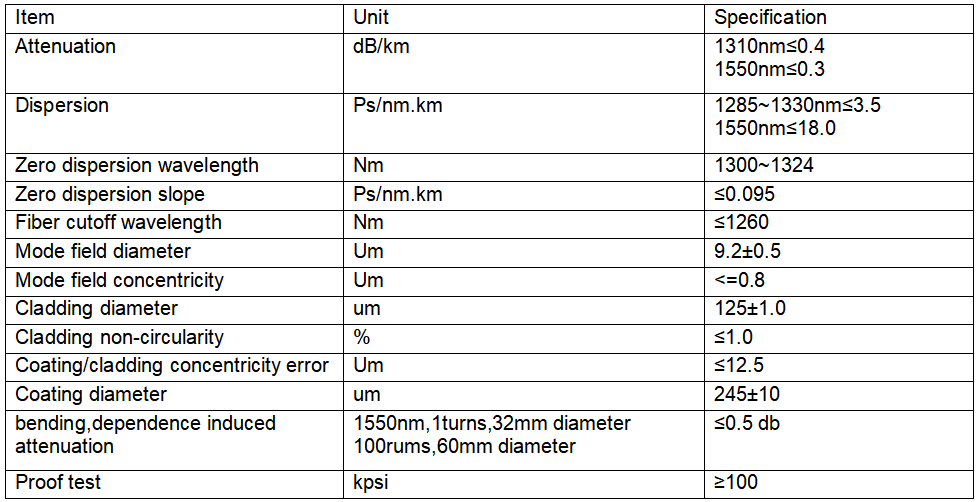

         1.4 Cable Parameters




          2. One single mode fiber SM-G675A2

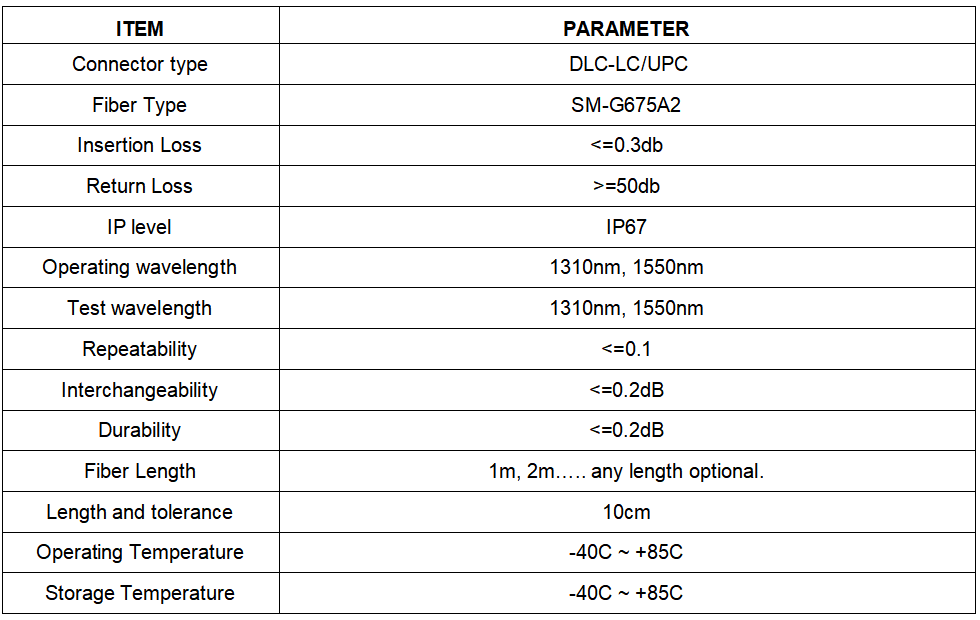

          3.Connector Specification

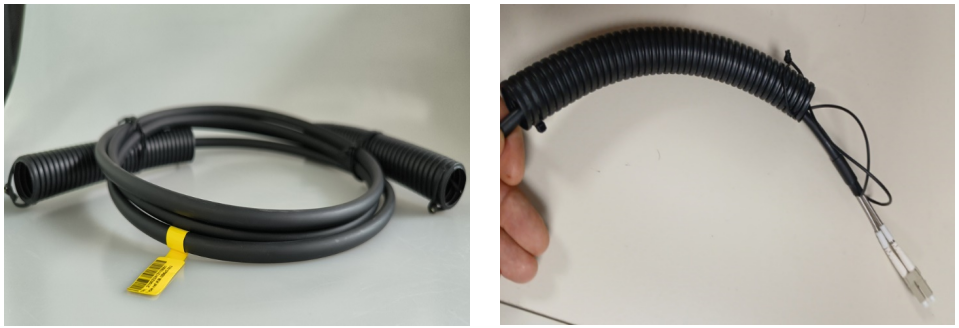

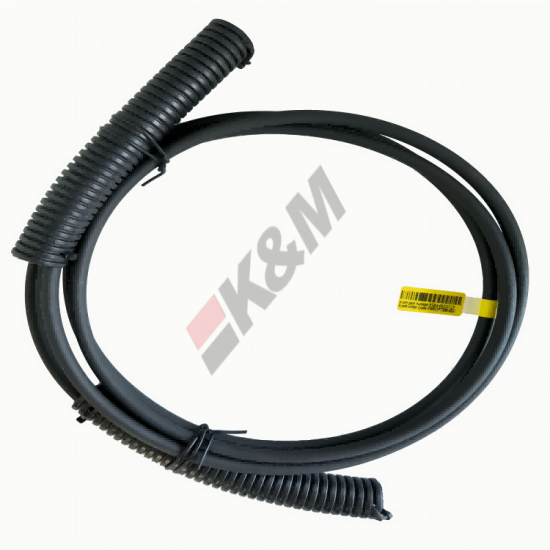

           4.Pictures



          5. Packing

             - Wooden or plywood drums with protection or bags

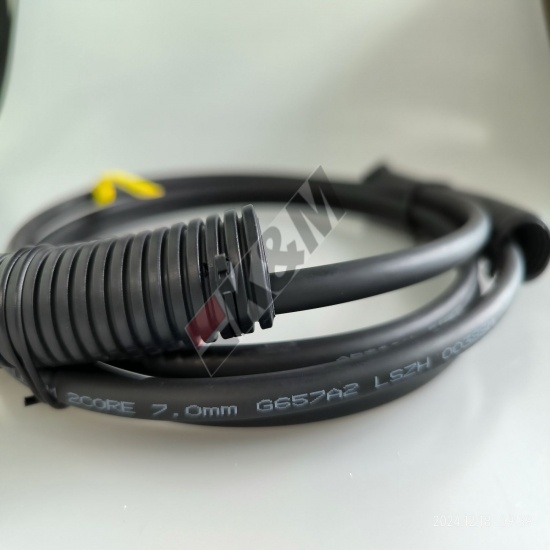

             Marking

             Cable Marker every Meter by:

             - Project name or project owner

             - Type of cable

             - Number of fiber

             - Year of manufacture

             - Cable length

             - Etc.

              Or as required: K&M FIBER OPTIC CABLE GYFJH-2B6a2 7.0 LSZH 6/2024 ***M


          6.Label requirement

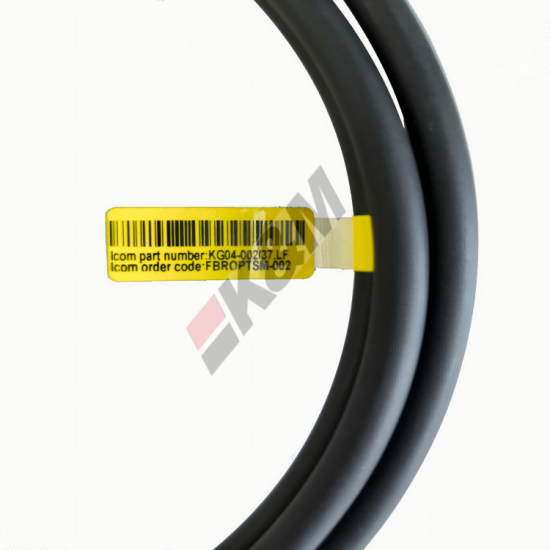

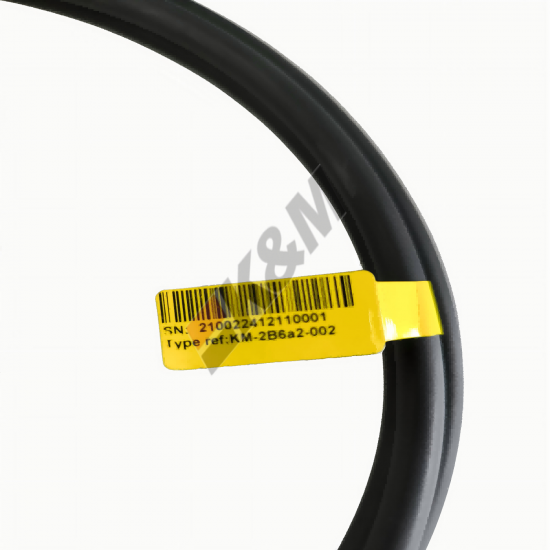

             Label on each product:

             SN: xxxxxxxxxxxx

             Type ref:

             Icom part number:

             com order code:

             Label on plastic bag if you place one cable inside a bag:

      SN:xxxxxxxxxxxx

      Type ref:

      Icom description:

      Icom part number:

      Icom order code:



      Label on drum if you place one cable use a drum:

      Company: XXX

      PO number:

      SN:xxxxxxxxxxxx

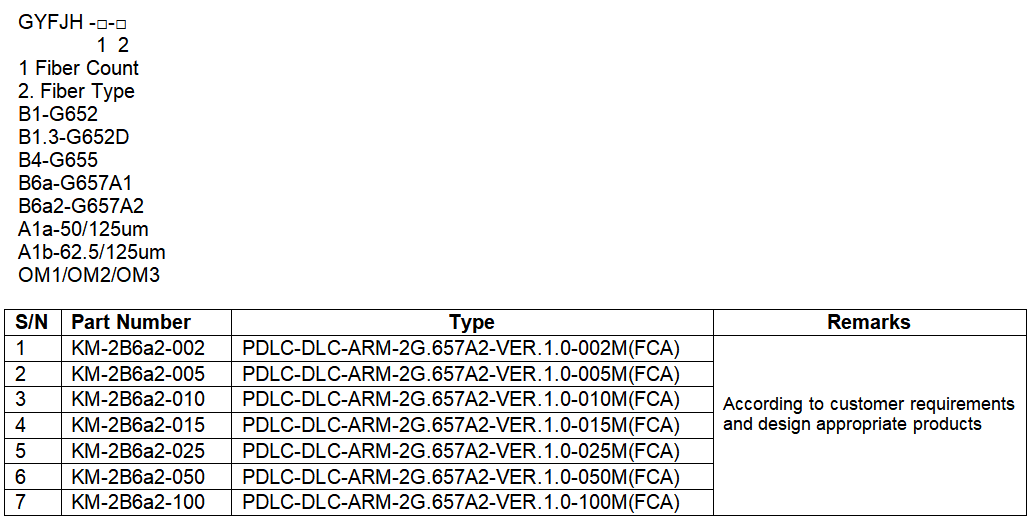

          7. Product Information
