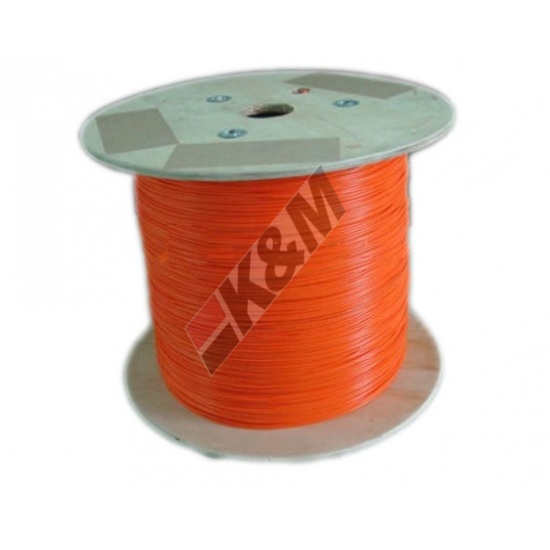

High strength kevlar yarn member Duplex zipcord cable

1000 Kilometer per Week OEM/ODM support
  • 1000 Kilometer per Week OEM/ODM support
  • 1000 Kilometer per Week OEM/ODM support

  • Product Orgin:

    Shenzhen

  • Brand:

    K&M

  • Item NO.:

    KDMZIPCABLE2C

  • Shipping Port:

    Shenzhen/HK

  • Payment:

    T/T,L/C,Wester Union,Paypal
Contact Now
  • Features & Benefits

 (Ф3) Single mode Simplex & duplex ZIP cable（LSZH）

 Modal name：GJFJH-1B1 or GJFJH-1B4                    Modal name：GJFJBH-2B1 or GJFJBH-2B4

 Dimension：Ф3

 Materials：

   Fiber： Corning, Drake, YOFC

   Kevlar： Dupont,T eijin Pwaion

   Buffer： LSZH

   Jacket： LSZH

Features：

   Cable：IEC 60794-2 and YD/T1258.2

   Fibre：ITU-T G.652, ITU-T G.655, or ITU-T G.656

Quality assurance system：

   ISO9001, and cable product confirms to ROHS.

Item

G.652

G.655

G.656

Att.

@1310nm

≤0.40dB/km

/

/

@1550nm

≤0.30dB/km

≤0.35dB/km

≤0.35dB/km

@1625nm

/

≤0.40dB/km

≤0.40dB/km

Dimension

Cladding Dia.

125±0.7μm

Non-circularity

≤１％

Conc.

≤0.7μm

Buffer Dia.

0.85±0.05mm

Cable dimension

2.85mm 0.1 -0.15

Stripping

Coating

1.3～8.9N

buffer

≤16N

Additional att.

（-40℃～60℃）

≤0.1dB/km

≤0.1dB/km

≤0.1dB/km

Mechanical characteristics

tension

Long term

70N,strain≤0.2%,Additional att.≤0.03dB

Short term

150N, strain≤0.3%, Additional att.≤0.05dB

crush

Long term

100N

Short term

500N

impact

１N.m, Additional att.≤0.05dB

Repeating bending

20N,300 cycles, Additional att.≤0.05dB

torsion

20 N,20 cycles, ±180°, Additional att.≤0.05dB

Bending radius

Load

60mm

unload

30mm
