Fiber Termination Box – 16F

Fiber Termination Box – 16F

Fiber Termination Box (FTB) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber ,the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network

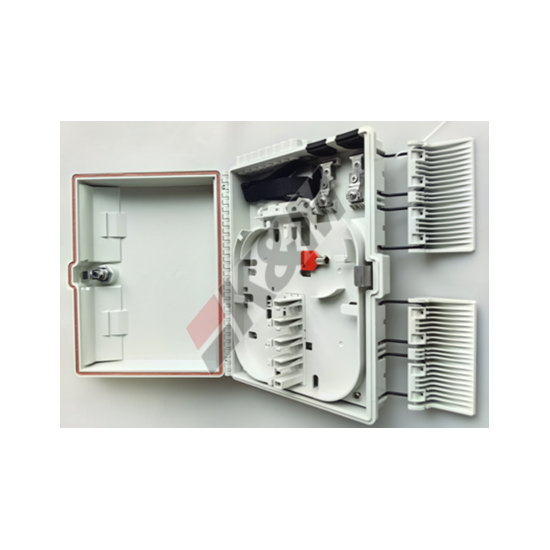

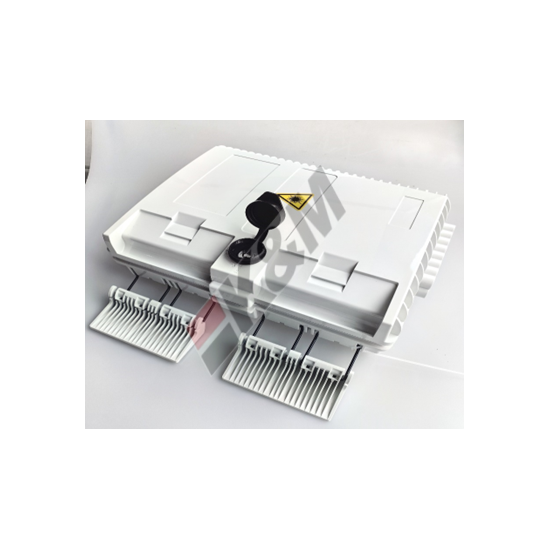

fiber ftth box
  • fiber ftth box
  • fiber ftth box
  • fiber ftth box

  • Brand:

    K&M

  • Payment:

    TT
Contact Now
  • Features & Benefits


Fiber Termination Box – 16F

Fiber Termination Box (FTB) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber ,the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network

Features

  • Indoor/Outdoor type
  • Nonmetallic material
  • Compacted wall mount type
  • Simple and clearly arranged incoming and outgoing cable management
  • Higher fiber count capacity box is available upon request
  • Easy maintenance ,easy access with front door
  • Support both mechanical and fusion splicing
  • Low cost solution with high protection for the terminated fibers
  • IP55 rated for outdoor applications
  • Customized design product is available upon request
  Applications
  • FTTX Systems
  • PON Networks
  • Fiber Optic Termination
  • CATV
 Specification
  • Wall Mounted termination box for indoor/outdoor use
  • Up to 16 fiber SC Simplex
  • Available for SC Simplex Adaptors or LC duplex
  • Available install 1*4/1*8/1*16 Mini / Box type PLC Splitters as required
 Dimensions

Description

FTB16SC

Dimensions (HxWxD)

300x230x100mm

Splice Capacity

Max.16Cores SC

Cable Port

In:2-port (¢12mm)/Out:16-port (¢3-6mm)

Color

Ivory/White

Main Body Material

Plastic: ABS+PC

Installation Type

Wall /Pole Type Outdoor

Structural Features

Product structure and recommended fiber routing diagram (Specific fiber routing according to the actual operation, the following figure is one of the fiber routing)










Order information

Name

Ordering code

Model

Max.Capacity

(splicing/terminal)

Dimension (HxWxD)(mm)

Remark

Fiber termination box

210309716

FTB16SC

16Cores (SC SX adapter 16PCS)

PLC 1x4/1x8/1x16 Mini type/Box Type

300x230x100mm

Outdoor

End
