SC FIELD FAST CONNECTOR

In FTTH installations the optical drop cable will differ in length for every house, traditional fixed length patch cords will not always be suitable.

SC FAST CONNECTOR
  • SC FAST CONNECTOR
  • SC FAST CONNECTOR
  • SC FAST CONNECTOR
  • SC FAST CONNECTOR

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDM-SC-53

  • Shipping Port:

    Shenzhen

  • Payment:

    TT/LC/WU

  • Price:

    $0.65/pcs

  • Market Price:

    $1

  • Price Range:

    1000-5000/0.65$

  • Color:

    Optinal

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

K&M-03 FIELD INSTALLABLE CONNECTOR

Field installation connector can be assembled easily and quickly in the field with no fusion device or special tool. To reduce material waste, the drop cable connector can be repeatedly used for 5 times. The fiber mating alignment and gripping technology include a factory-polished zirconia ferrule, which improve durability and provide a reliable, low-loss fiber termination. The kit can be separately ordered. It contains Trip and cut tool, cleaver, and cleaning paper.



FIC03-apc



Feature

Pre-embedded fiber in the ferrule, no fusion and polish.

Stable optical performance and reliable environmental performance.

Repeat use, low scrap rate, low cost.

Compact size length is less than 53mm.

Screw fixed structure

 Specification

Insertion loss

                   Main≤0.25dB        Max.≤0.40dB

Return loss

UPC≥40dB

APC≥45dB

Tensile

△IL＜0.3dB @ 30N

Cable

3.0X2.0mm Drop cable and Φ3.0Cable

Operating temp.

-40℃～+70℃

Storage temp.

-40℃～+80℃

 Ordering information

Products

Part NO.

Remark

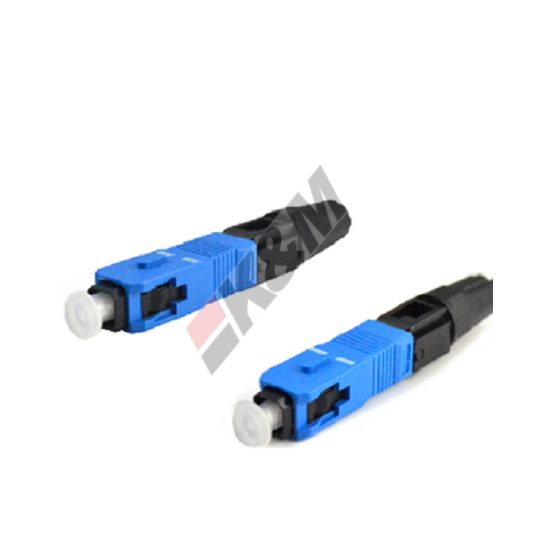

SC/UPC field connector

KDM-16-0301

Blue

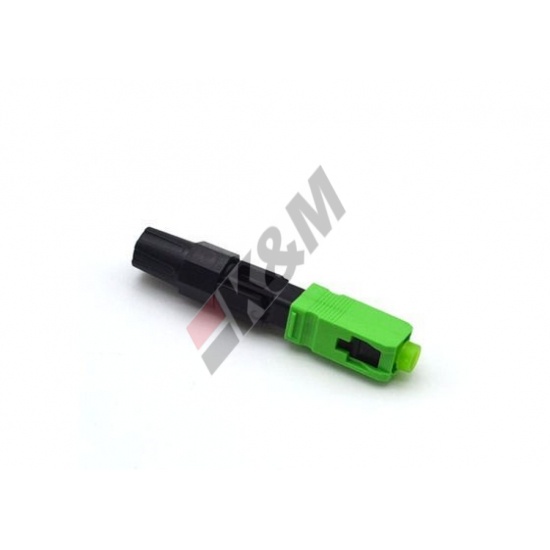

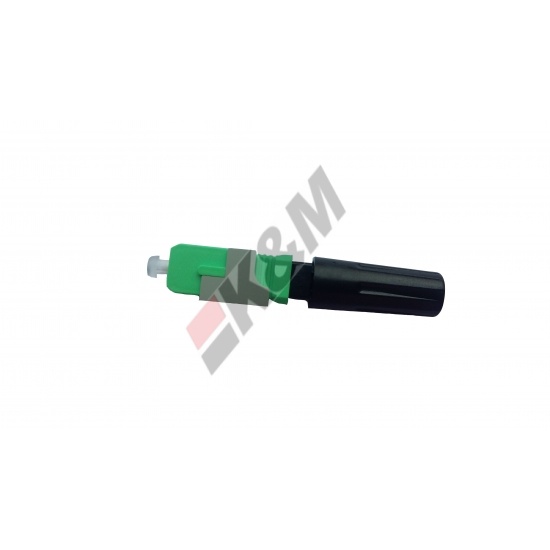

SC/APC field connector

KDM-16-0302

Green

Tripping and cutting tool

KDMT0301

For fiber tripping and

cutting to length

Fiber cleaver

KDMT0102

For cutting bare fiber
