Outdoor Energy Storage Cabinet

Introduction

The whole system is plug-and-play, easy to transport, install and maintain.lt consists of battery module,PCS, STS (optional), MPPT (optional), control system, fire control system, and temperature control system, monitoring system one-stop integration, through the synergy of the system components to achieve.

lt adopts AC coupled micro grid structure, PCS, load, grid, and access to AC bus, and the corresponding control strategy is developed according to the actual case to ensure the safety of power supply.

The battery cluster consists of 21 modules connected in series, and the whole battery system is controlled by BCM to monitor the cluster voltage and current in real time.

The battery module consists of 10200 AhLiFePO4cells; distributed BMM control system with functions of collecting battery voltage, collecting battery temperature, and battery equalization to ensure the module works

Effectively and safely



PRODUCT FEATURES

⚫Adopt automotive grade high performance lithium iron phosphate (LFP) battery, safe and reliable.

⚫Intelligent temperature control to ensure optimal temperature environment and lower system power consumption.

⚫Real-time data backup.

⚫Automatic fire fighting system with good safety.

⚫Support parallel and off-grid switching function.

⚫One button start, automatic operation, support multiple parallel connection.

⚫Protection class IP55, suitable for outdoor use.

⚫Four layers of safety protection design, safe and reliable.

⚫Support remote viewing service.

◎Model

30Kw/100kWh

60Kw/147.8kWh

◎Battery parameters

Cell Type

LFP-220Ah

LFP-220Ah

Module Model

IP10S

IP10S

Battery Cluster Configuration

1P150S（15Module）

IP210(21Module)

System Configuration

1*1P150S

1*IP210S

Battery Capacity（BOL）

100kWh

147.84kWh

Battery voltage range

420V-540V

588V-756V

◎AC on-grid parameters

Grid Type

3P4W

3P4W

Rated charge/discharge power

30KW

60kW

Rated grid voltage

AC400V

AC400V

Rated grid frequency

50Hz

60Hz

Frequency range

±5Hz

±5Hz

Rated current

43A

86A

Power Factor

1（Ahead）~1（Lag）

1（Ahead）~1（Lag）

Output Harmonics

≤3%

≤3%

◎AC off-grid parameters

Rated output power

30KW

60KW

Rated output voltage

AC400V

AC400V

Rated output frequency

50Hz

50Hz

Rated current

43A

86A

Voltage accuracy

1%

1%

Frequency accuracy

0.2Hz

0.2Hz

◎General parameters

Dimension (W*D*H)

1861*1835*1267mm

1861*1835*1267mm

Weight

1950kg

2200kg

IP Protection Rating

IP55（Battery room）IP53(Electrical room)

IP55（Battery room）IP53(Electrical room)

Seismic Intensity Rating

8（IEC60980）

8（IEC60980）

Anti-corrosion grade

C3

C3

Operating temperature【1】

-20℃～50℃

-20℃～50℃

Relative Humidity

0-95%（Non-condensing）

0-95%（Non-condensing）

Working altitude【2】

＜2000m

＜2000m

Cooling method

Battery section: air conditioning

Power section: forced air cooling

Battery section: air conditioning

Power section: forced air cooling

Noise

≤75dB

≤75dB

System efficiency

≥88%

≥88%

Cycle life

5 years or more than 2000 times

5 years or more than 2000 times

Fire Fighting System

Automatic fire extinguishing

Automatic fire extinguishing

Fire extinguishing media

FM200

FM200

Communication Interface

Ethernet

Ethernet

Communication protocols

Modbus TCP/IP

Modbus TCP/IP

Warranty

3 years

3 years

◎Photovoltaic side parameters (optional)

Maximum input module power

30KW

60KW

MPPT Voltage Range

200V-420V

200V-580V

Number of MPPT paths

1

1

Number of PV input channels

1

1

Maximum input current

100A

100A

◎ Notes：

【1】The system will be derated when the ambient temperature exceeds 45℃.

【2】The system will be derated when the altitude is between 2000 and 3000m.

◎Standard Certification：

【1】System: GB_T 36558, IEC 62933

【2】PCS: GB_T 34120

TYPICAL SYSTEM LAYOUTS


◎ Notes： STS are available as options.


On and off-grid (seamless switching)

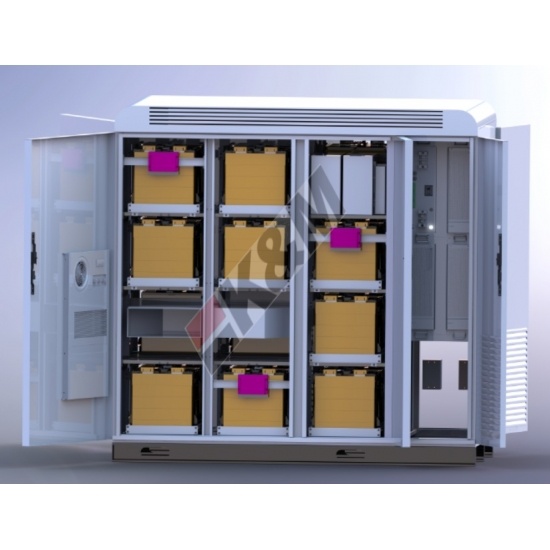

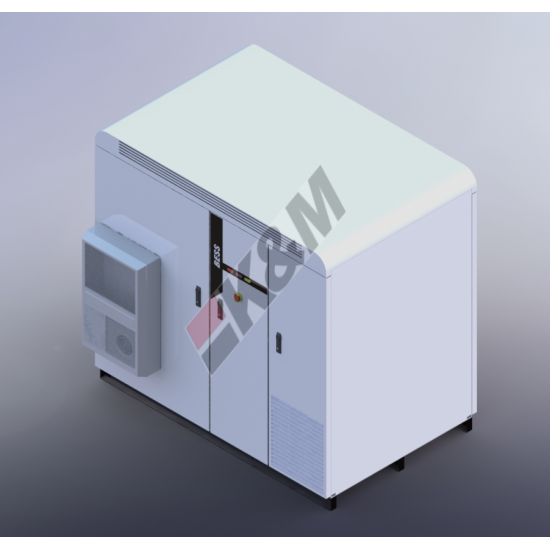

Outdoor Energy Storage Cabinet with IP55
  • Outdoor Energy Storage Cabinet with IP55
  • Outdoor Energy Storage Cabinet with IP55
  • Outdoor Energy Storage Cabinet with IP55

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDM1P150S

  • Shipping Port:

    Shenzhen, HK

  • Payment:

    TT

  • Lead Time:

    3-4 weeks
