Product Orgin:
Shenzhen ChinaBrand:
K&MShipping Port:
ShenZhen/Hong KongPayment:
TT/WUColor:
BlackLead Time:

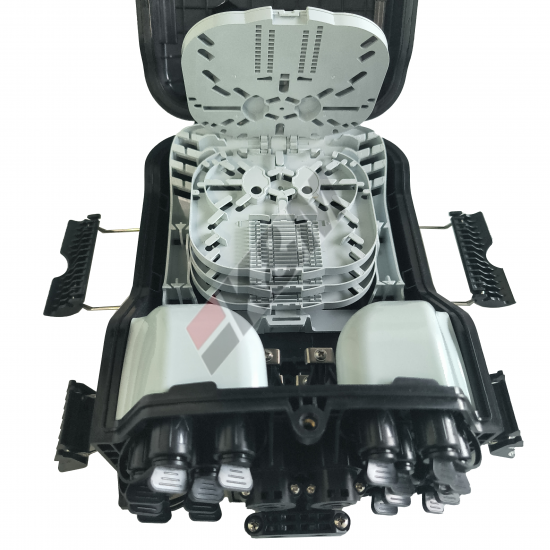

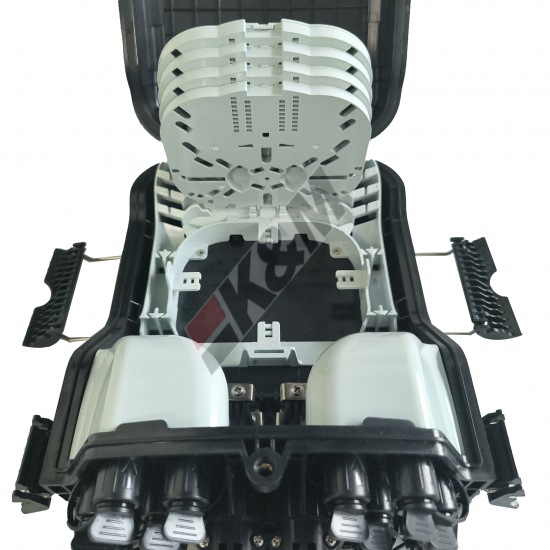

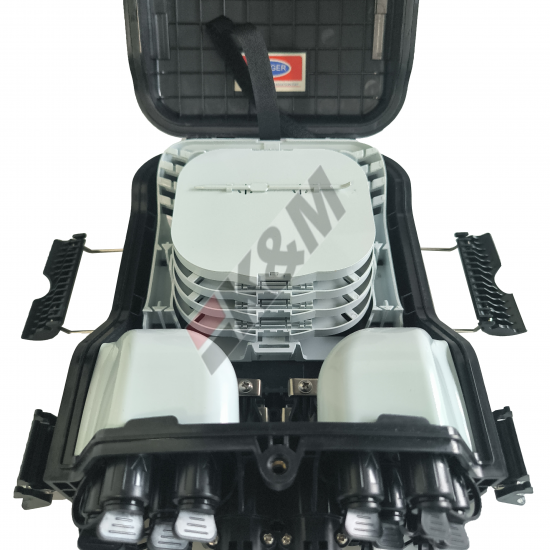

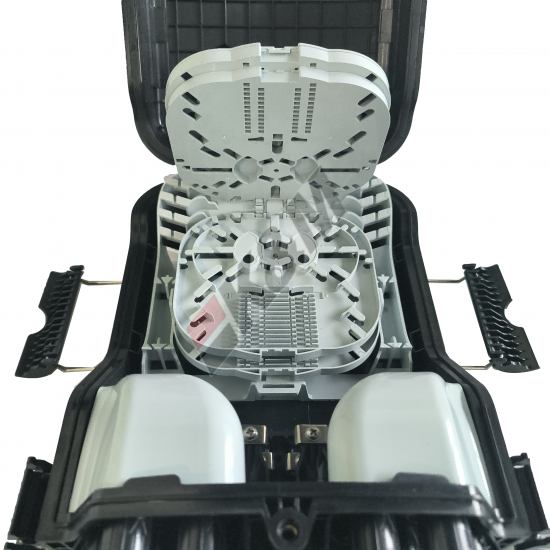

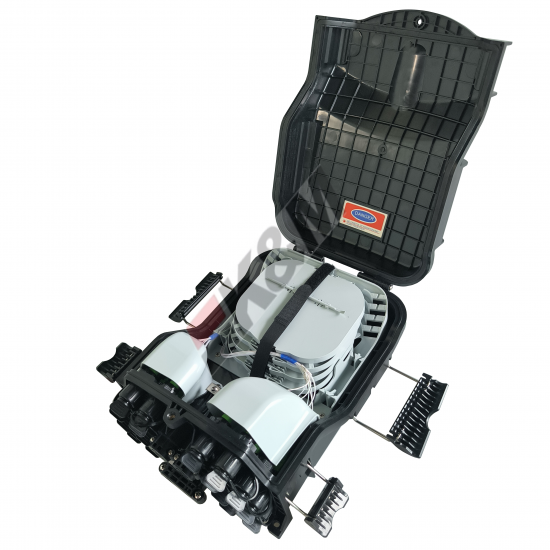

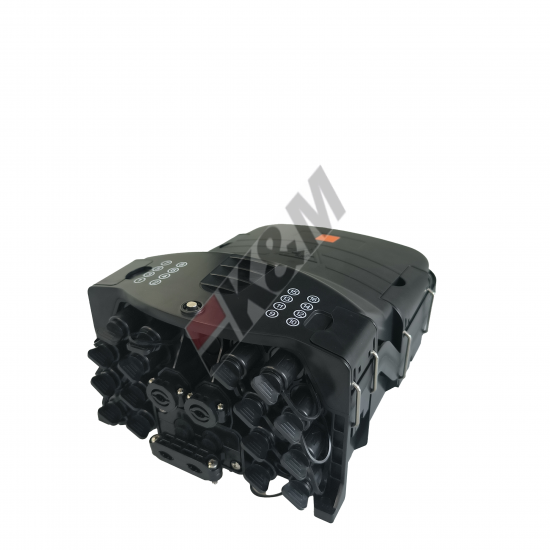

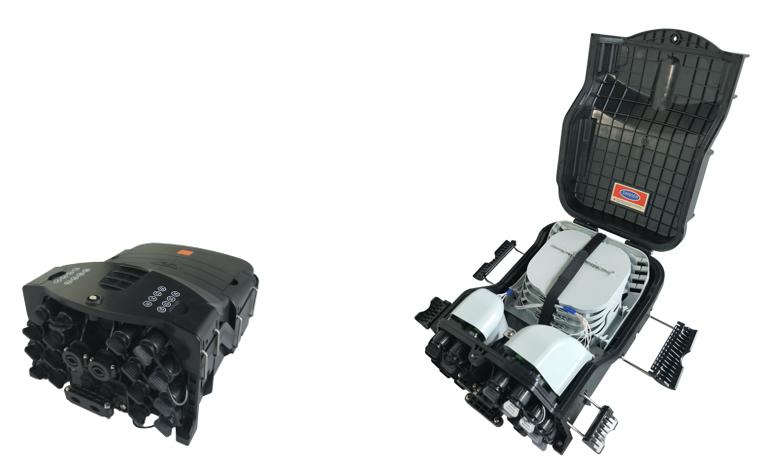

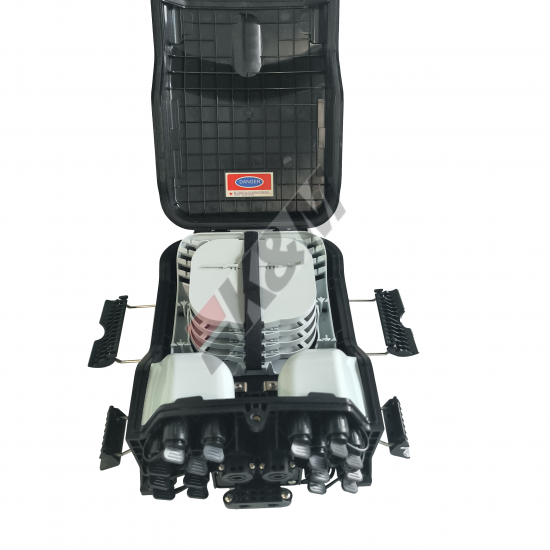

Can be discussedAerial Drop Joint Closure (FAT)
The fiber access termination hub is able to hold up to 16 subscribers and 96splicing points as terminal. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
·Water-proof design with IP-68 Protection Level.
·Material: ABS,PC+ABS

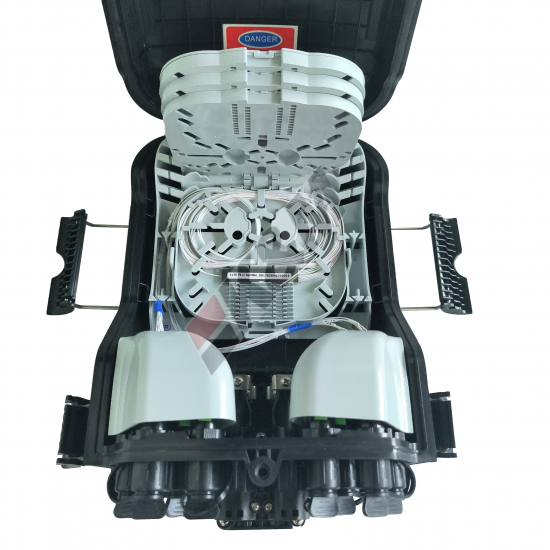

·Integrated with flap-up splice cassette and adaptor holder
·All stainless metal plate and anti-rusting bolts, nuts
·Suitable for the fusion splicer or mechanical splice
·Ability to host 4 mini steel PLC splitters 1:4 or 1:8 or 1:16
·Mechanical sealing structure and mid-span cable entry, Uncut port and 2 separate cable ports
·16 SC or 12 Fast Connect ports divided into two groups: 4 pre-terminated dual LC/APC ports and 8 pre-terminated single SC/APC ports and a minimum of 2 legacy ports for traditional drop cables
·Pole-mounted.

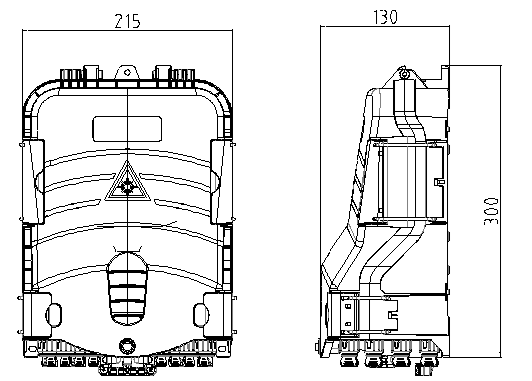

Dimension: H316*W215*D130mm

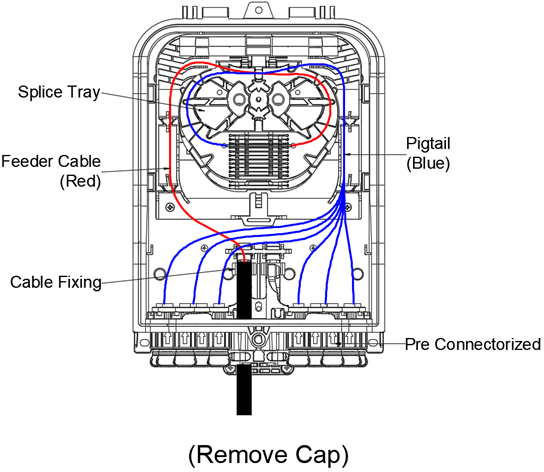

Cable Routing

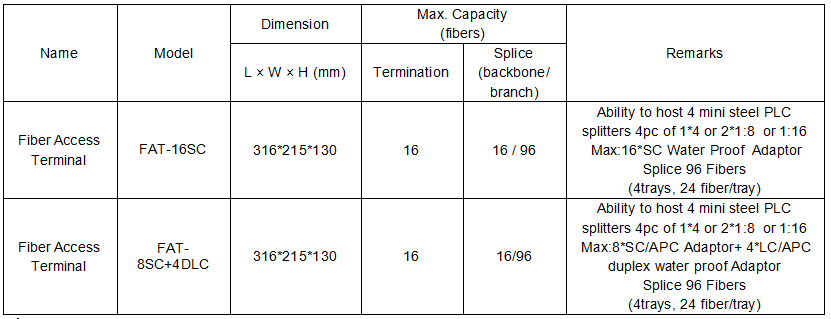

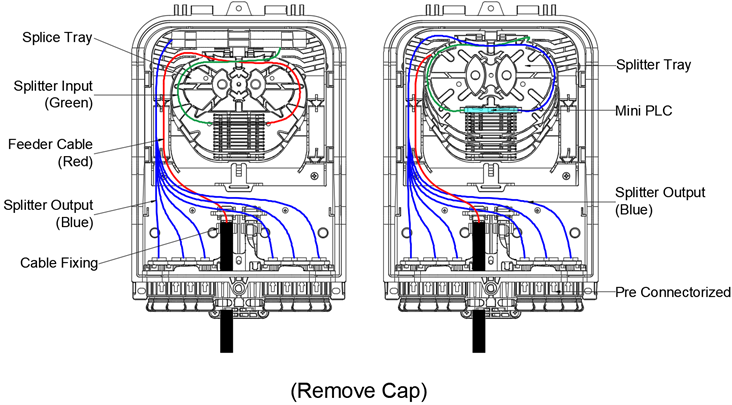

Splitter Type
Distribution Type

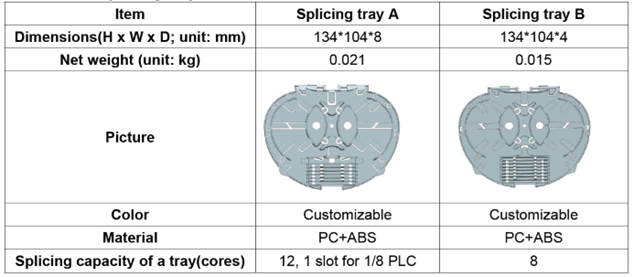

Cassettes:
Installation
Wall-mounted installation
Drill 3 holes in the wall according to the installation size，place the expansion bolt，place the box to match up the holes and use bolt to fasten
Pole-mounted installation
Fix 2 set of the hose clamps to the telecom pole.
Product Information
