Product Orgin:
ShenzhenBrand:
K&MItem NO.:
KDMFAT32-64CShipping Port:
Shenzhen/HKPayment:
TTColor:
GrayLead Time:
2 weeks

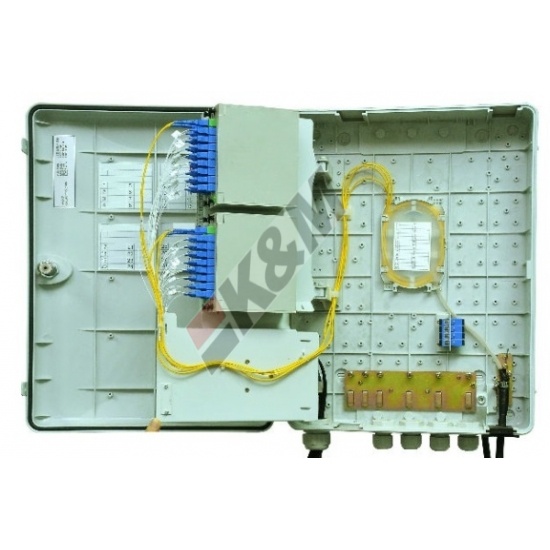

FIBER DISTRIBUTION HUB – MODULE TYPE
Fiber Distribution Hub (FDH) – Module Type is suitable for use in the network where optical splitters are distributed. It offers optical cable stripping and a fixing assembly, optical splitter module, splicing module, and storage area, completes the functions of optical cable inlet fixing, fiber splicing and termination, optical splitter installation management, and coiling, storage, fixing, and splicing of single-fiber drop cables, and implements optical splitting and capacity expansion of optical lines
Features
· Material: nonmetal
· Integrated optical splitter – Module type
· Rotary distribution panel
· Cable management
· Applicable in multiple cables: drop cable, optical cable
· Perfect fiber route design to ensure bend radius of fibers
· Backbone optical cable is tap-off
· Dust and splash proof: IP55(Outdoor)
Applications
· FTTX Systems
· PON Networks
· CATV Links
· Optical Signal Distribution
Specification
Number of PLC splitters: 2
Fiber capacity 8 to 64 fibers
IP rating: IP55
Operating temperature -20°C to + 60ºC
Storage temperature -50°C to + 70ºC
Connector attenuation ≤ 0.35 dB
Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB
Number of termination > 500 times
Dimensions
Description |
Dimension (H x W x D mm) |
8 Ports/Fibers |
200 x 195 x 50 |
16 Ports/Fibers |
350 x 300 x 110 |
32 Ports/Fibers |
445 x 340 x 110 |
64 Ports/Fibers |
445 x 340 x 110 |
Ordering Information
FDH with PLC Splitter |
|
Description |
Part No. |
Fiber Distribution Hub with PLC Splitter – Module type |
KMFDHMSxyyaaSCzn |
x: Number of splitter inputs
yy: Number of output channels
aa: Number of fibers (8 to 64)
z: Connector surface type (U=UPC, A=APC)
n: Fiber type (A=G657A, D=G652D)
Ordering Sample: KMFDHMS13216SCAD (FDH, with PLC Splitter 1:32, up to 16 ports, SC connector, APC, G652D)

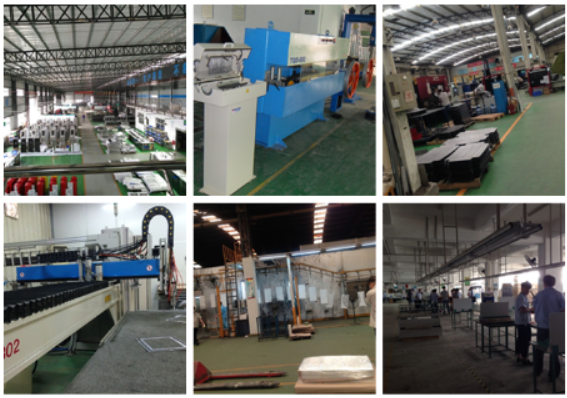

Production Line
