Fiber Optic Termination box 8 core

Fiber Optic Termination box 8 core K&M

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Shipping Port:

    ShenZhen/Hong Kong

  • Payment:

    TT/WU

  • Color:

    grey

  • Lead Time:

    Can be discussed
Contact Now
  • Features & Benefits

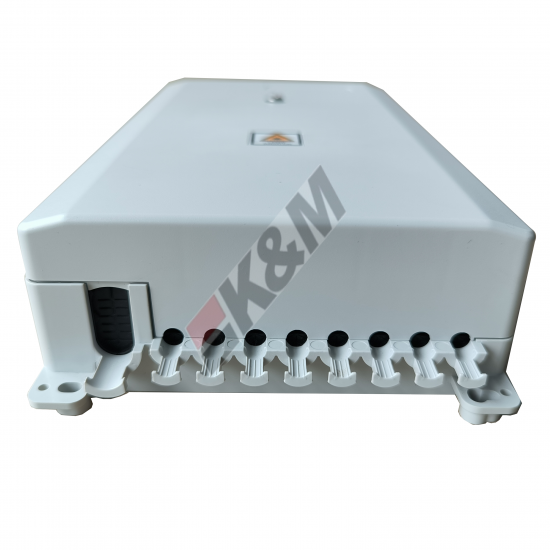

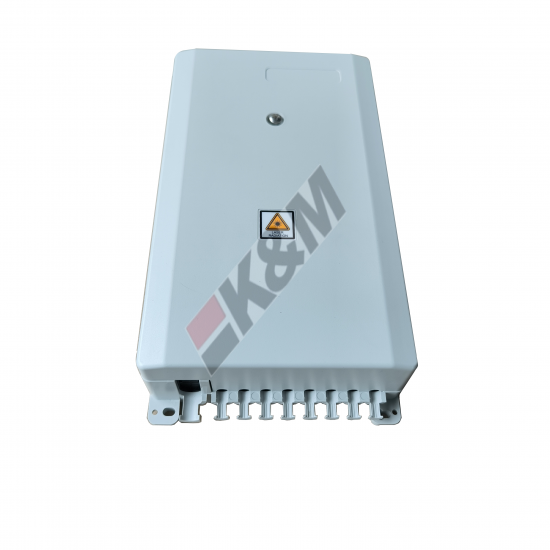

Fiber Optic Termination box 8 core

1、Description：
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

2、Features：
（1） Total enclosed structure.
（2） Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP54.
（3）Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

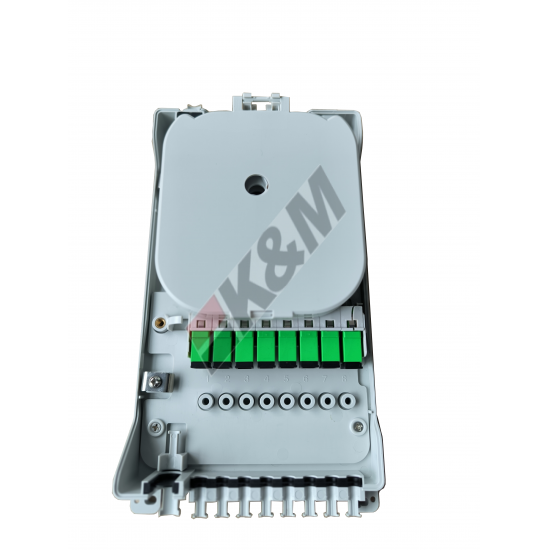

（4） Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
（5） Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
（6） Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

3、Specification：
（1）Environmental requirement Working temperature：-40℃～+85℃ Relative humidity：≤85%（+30℃） Atmospheric pressure：70KPa～106Kpa
（2）Main technical datasheet Insertion loss：≤0.3dB UPC return loss：≥50dB APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2 ´104MΩ/500V（DC）； IR≥2 ´104MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture， no flashover；U≥3000V

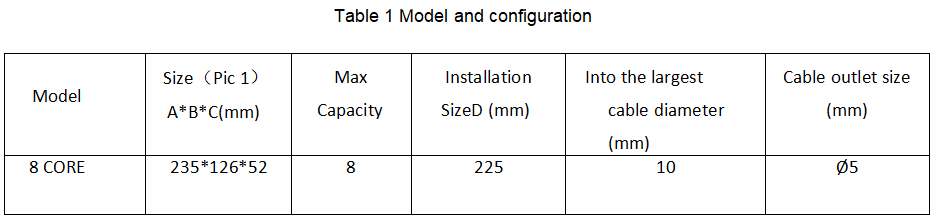

4、Configuration table：

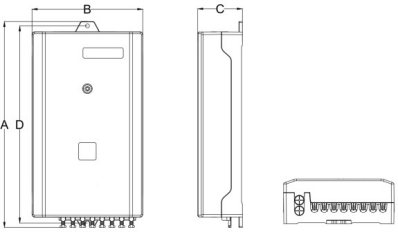

 Pic 1 Box Size

5、Product cable ways：

Pic. 2    Cable ways



6、Installation：
Wall-mounted installation
Drill 2 holes over the wall based on the size in table 1，place the expansion bolt Φ7.5*40，place the box to match up the holes and use bolt to fasten。(Pic 3)



 Pic 3 Wall mounted installation

7、Accessories：
（1）Users' Manual*1
（2）Accessories Bag * 1
