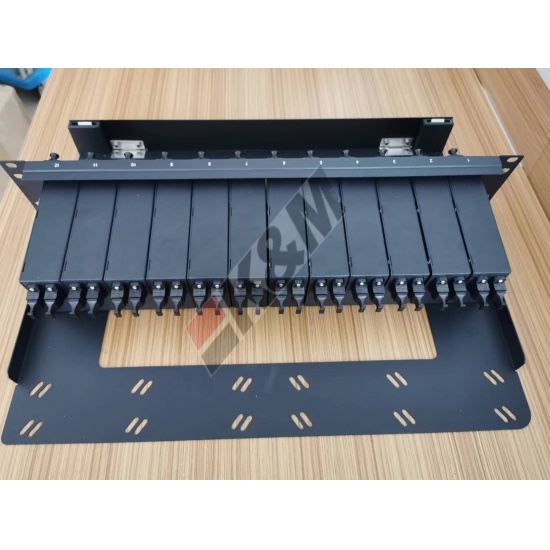

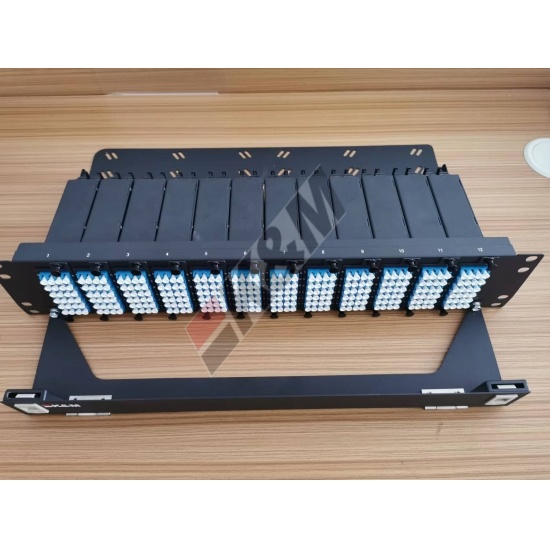

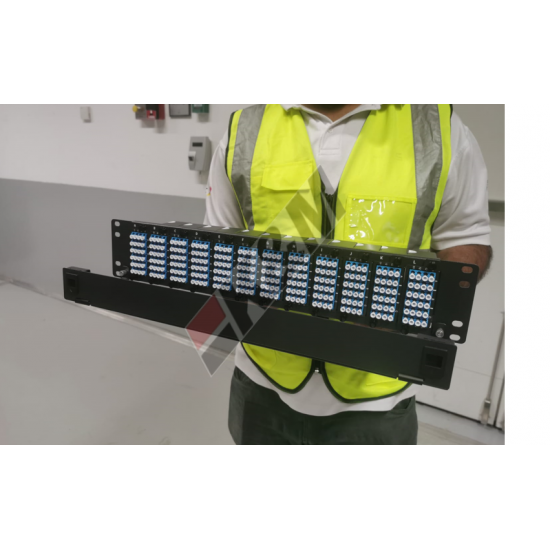

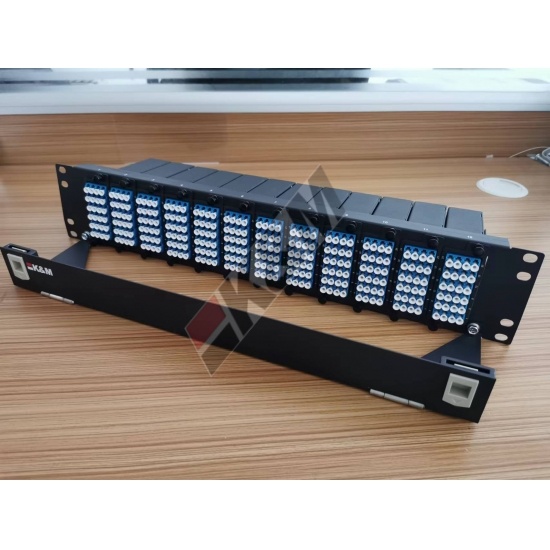

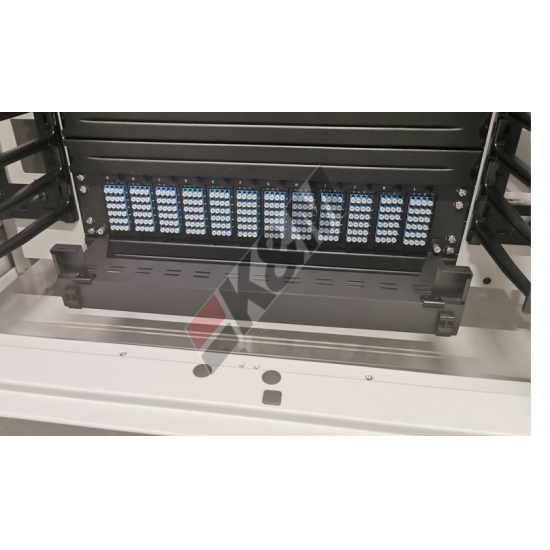

2U Rack Mount MPO To LC 288 Core HD Patch Panel


Ultrahigh Density MPO/MTP Patch Panel 2U 12 Modular 288 ports


High  Density  Panel  is  specially to  accommodate  high  density cabling  in high  end  Data  Center  and  Telecommunication  central office  environment. The  shallow  depth  of  High  Density  Panel  makes  it  suitable  for  low  depth copper racking  systems  or  Telecommunication  ODFs.

The 19’’  1U 5 modular  120 ports And 2U 12 modular 288 ports MPO  Panel  contains  factory  controlled  and  tested Modules  can  be  installed  in  it.MTP - LC  assembly  to  deliver  optical  perf­ormance  and  reliability.

Application:

l   Data communication applications

l   Data Centre infrastructure

l   Storage Area Network - Fibre Channel

l   Emerging 40 and 100Gbps Protocols compatible

Features:

l   19"rack mount, the panel and modules are made of cold rolled steel sheet

l   Modular in design with higher density, special mini module comes up to 24 LC or 12 SC adapter ports and switch to MTP/MPO connection.

l   1U patch panel capacity come up to 120F fully loaded with 5 modules. And 2U capacity come up to 288F fully loaded with 12 modules, save more space for large data centers and reduce combined cost.

l   Unique tool-free installation design for easy and fast assembly and installation.

l   Factory pre- terminated module, plug and play on site, no need fiber splicing and cable wiring which saves labor cost.

l   This system can also support application of optoelectronic hybrid with Standard RJ45 keystone jack, achieve the function of network distribution and cover a wider application.

l   Front cable management function is convenient for managing cable and identifying link label.

Specification:

Item

1U

2U

Dimensions (W x D x H)

483mm×335mm×1U

483mm×335mm×2U

Storage Temperature

-20°C~+60°C

Operating Temperature

-20°C~+55°C

Relative Humidity

≤85%(+30°C)

Air Pressure

70kPa~106kPa

Ordering Information

X

Product Description：

MPP2 - SP - B - 9005 - 2×12MTP/PC - LC/UPC - OM3 - 3MD - 2BP - 1U

X

1 - Model

MPP2

X

2 - Body Materials

SPCC(cold rolled steel sheet)

X

3 - Painting Finish

B: powder coat matt finish

X

4- Painting Color

RAL 9005 black

X

5 - Patch cord Quantity

2×12 : 2pcs of 12F ; 1×24 : 1pc of 24F ; 1×12 : 1pc of 12F

X

6 - Connector A

MPO/PC; MPO/APC; MTP/PC; MTP/APC

X

7 - Connector B

LC/UPC; LC/APC; SC/UPC; SC/APC

X

8 - Fiber Mode

G657A1; OM1; OM2; OM3; OM4

9 - Module Quantity

1MD; 2MD; 3MD; 4MD; 5MD; 6MD; 7MD; 8MD; 9MD; 10MD; 11MD; 12MD

10 - Baffle Quantity

0BP: w/o baffle; 1BP: with 1 baffle; 2BP: with 2 baffle; 3BP,4BP,etc

11 - Panel Height

1U; 2U

Note：1. MPP2-1U fully loaded with 5 modules, MPP2-2U fully loaded with 12 modules.

2. Baffles are used where modules are not installed.

3. Empty frame w/o Module Description:MPP2-SP-B-9005-EM-1U/2U (1U、2U are optional)

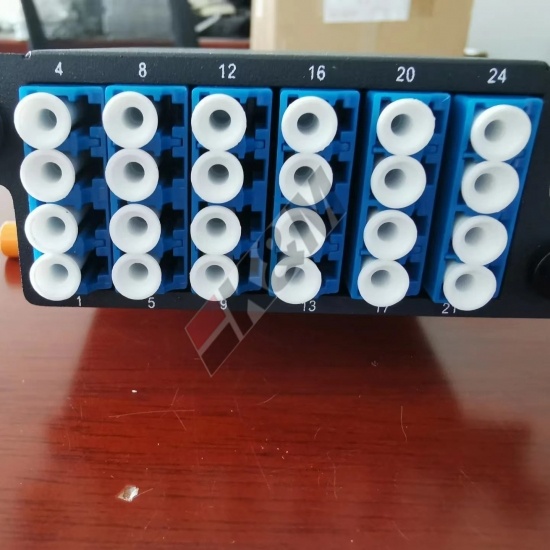

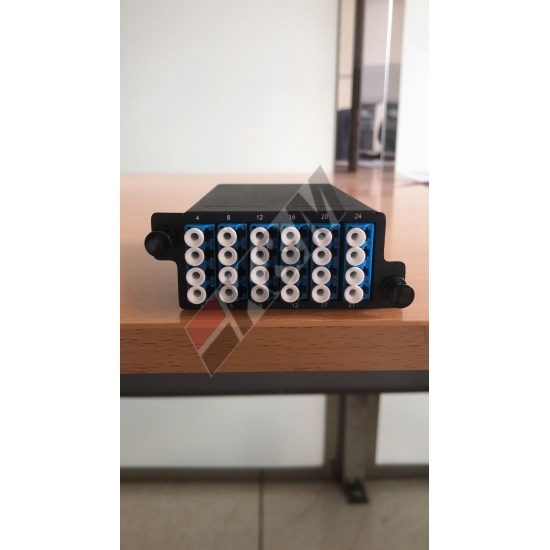

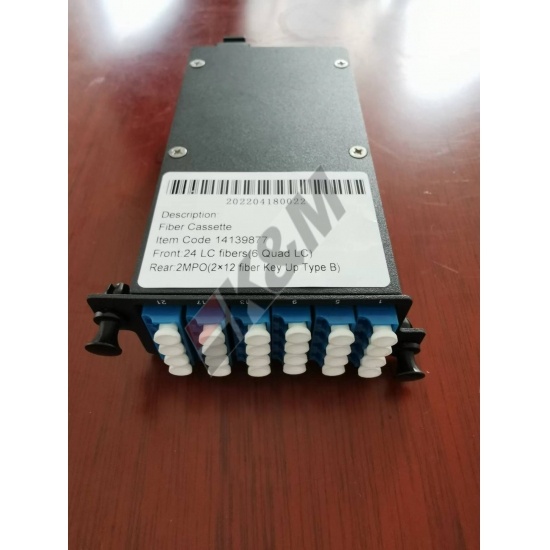

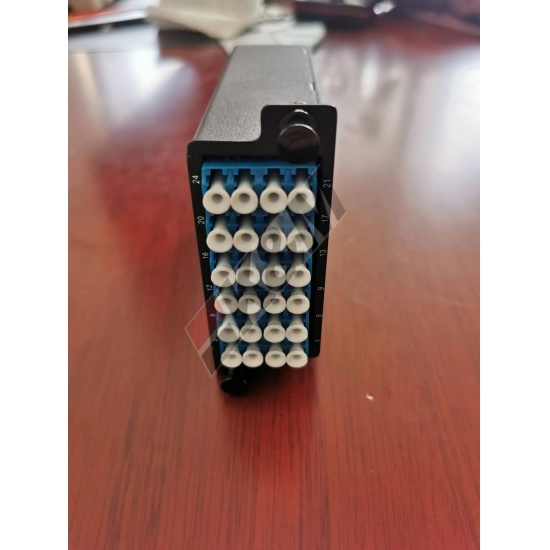

MPO/MTP-LC Module

Material

SPCC(cold rolled steel sheet)

Color

Black

Size

88W*133D*34Hmm

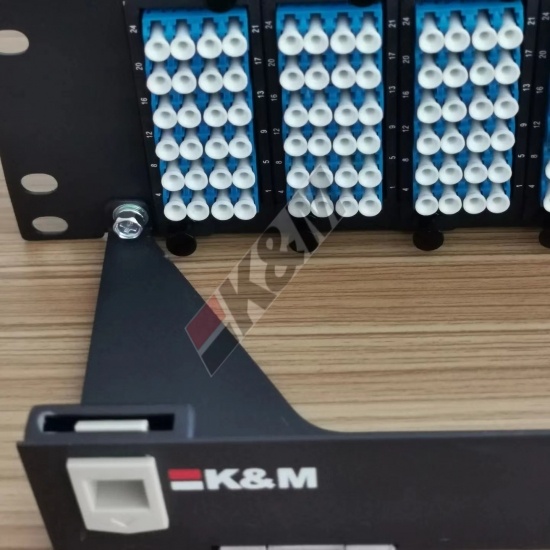

(front)Adapter type

LC quad (w/o flange)×6Pcs

(front)Adapter color

Aqua: OM3/OM4 ; Beige: OM1/OM2

Blue: SM-UPC ; Green: SM-APC

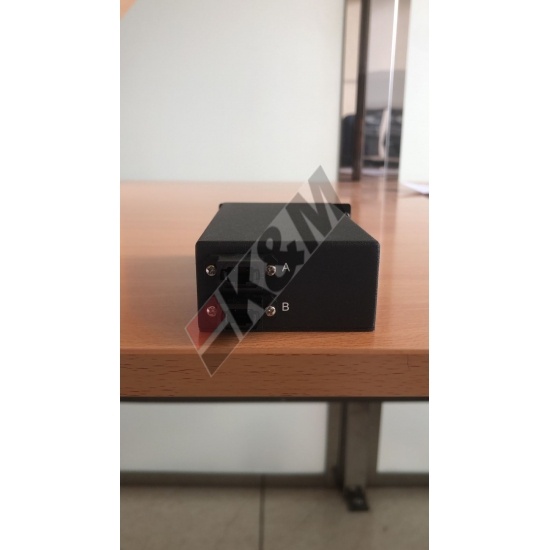

(rear)Adapter type

MPO/MTP(Full flange/Opposed)

(rear)Adapter color

Black

Connector A

SM :LC-UPC,0.9mm or LC-APC,0.9mm

MM:LC-UPC,0.9mm

Connector B

SM : MPO/MTP(male)-APC

MM: MPO/MTP(male)-PC

Patch cord polarity

TypeA

Weight

0.22kg


Optical Performance

Type

Wavelength

Module I.L. Max

MTP-LC(MM)

850nm/1300nm

0.50dB

MTP-LC(SM)

1310nm/1550nm

1.30dB

MPO-LC(MM)

850nm/1300nm

0.75dB

MPO-LC(SM)

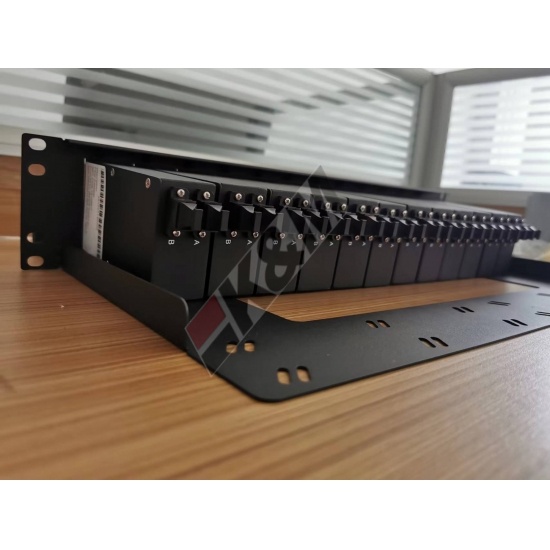

1310nm/1550nm

1.50dB


Ordering Information

X

Product Description：

MPM2 - SP - B - 9005 - 1×12MTP/PC - SC/UPC - OM3

1 2 3 4 5 6 7 8

X

1 - Model

MPM2

X

2 - Body Materials

SPCC(cold rolled steel sheet)

X

3 - Painting Finish

B: powder coat matt finish

X

4- Painting Color

RAL 9005 black

X

5 - Patch cord Quantity

2×12 : 2pcs of 12F ; 1×24 : 1pc of 24F

X

6 - Connector A

MPO/PC; MPO/APC; MTP/PC; MTP/APC

X

7 - Connector B

LC/UPC; LC/APC

X

8 - Fiber Mode

G657A1; OM1; OM2; OM3; OM4



2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports
  • 2U 12 Modular 288 ports

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDM1P150S

  • Shipping Port:

    Shenzhen, HK

  • Payment:

    TT

  • Price:

    $500

  • Market Price:

    $600

  • Color:

    Black

  • Lead Time:

    2 weeks
Contact Now
