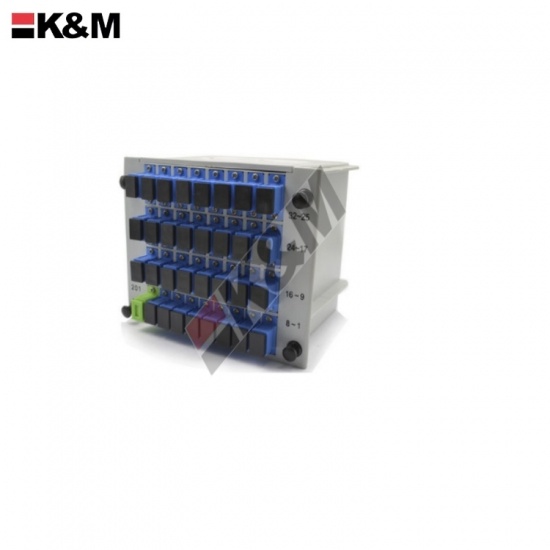

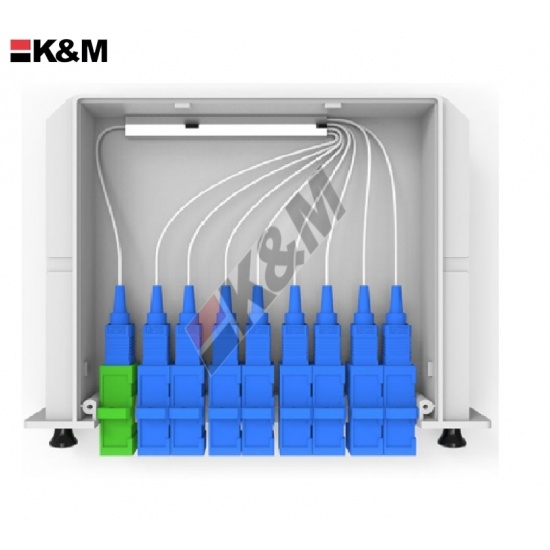

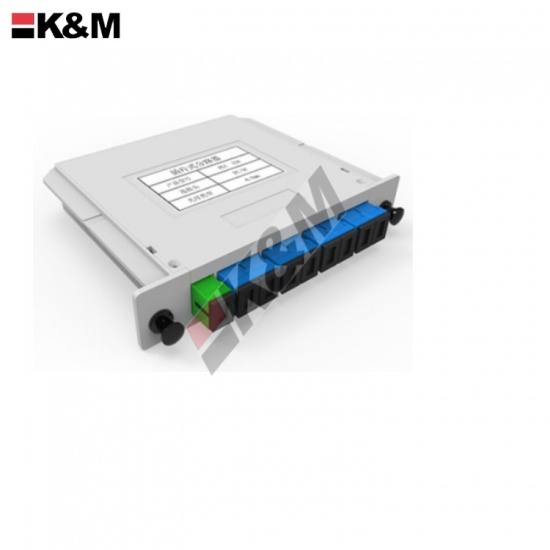

Mini plug-in PLC type splitter is its small version with a compact design. It is usually installed in the wall mount FTTH box for fiber optic signal distribution.
Product Orgin:
Shenzhen ChinaBrand:
K&MItem NO.:
KDMLGX-1:NShipping Port:
Shenzhen/hkPayment:
TT/LC/WUColor:
OptionalLead Time:
two weeks
Features
Made of high quality steel sheet
Modularized design
Convenient for installation and maintenance
Low Insertion loss and PDL
High return loss (P/S Grade: 55/50 dB)
Directivity 55 dB
Compact Design
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
1 & 2 input channel, and 4, 8, 16, 32 and 64 channel available
High Reliability and Stability
Telcordia GR-1209-CORE-2001 compliant
elcordia GR-1221-CORE-1999 compliant
RoHS compliant
FTTX Systems
PON/GPON/EON Networks
CATV Links
Optical Signal Distribution
Specification
|
Product Name |
1*N PLC splitter |
|
Product Connector |
SC/PC or customerized |
| Product Type |
1*2,1*4,1*8,1*16,1*32,1*64 |
| Operate Wavelength | 1260-1650 |
|
Insertion Loss |
customerized |
|
Return Loss |
≥50dB |
| TDL |
≤0.5dB |
|
Directivity |
≥50dB |
|
Operation Temperature |
-40~80℃ |
|
Storage Temperature |
-40~85℃ |
