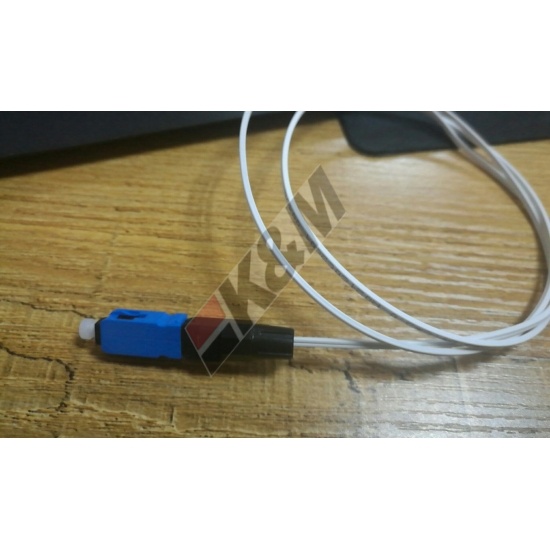

SCAPC 45MM short boot Fast Connector

In FTTH installations the optical drop cable will differ in length for every house, traditional fixed length patch cords will not always be suitable.

The K&M field connector removes this problem as it can be fit- ted with no epoxy or power requirements in less than two minutes.

SC 45MM Fast Connector
  • SC 45MM Fast Connector
  • SC 45MM Fast Connector

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMFCN-SCA-45MM

  • Shipping Port:

    Shenzhen/HK

  • Payment:

    TT/WU

  • Price:

    $0.7/Pcs

  • Market Price:

    $1.2

  • Price Range:

    1000-5000/0.7$

  • Color:

    Green

  • Lead Time:

    One Week
Contact Now
  • Features & Benefits

K&M-03-MINI FIELD INSTALLABLE CONNECTOR

 In FTTH installations the optical drop cable will differ in length for every house, traditional fixed length patch cords will not always be suitable.

The K&M field connector removes this problem as it can be fit- ted with no epoxy or power requirements in less than two minutes.

Features:

• No epoxy, no fusion polishing, Pre-embedded fiber in the ferrule

• Well suited for FTTX

• Less than two minutes assembly time

• Outstanding optical performance

• Compact size length is less than 45mm

• Screw fixed structure

• Repeat use, low scrap rate, low cost

Specification

Insertion loss

                 Main≤0.25dB        Max.≤0.40dB

Return loss

UPC≥45dB           APC≥55dB

Tensile

△IL＜0.3dB @ 40N

Cable

3.0X2.0mm Drop cable

Operating Wavelength

1310&1550nm

Average assembly time

1 min

Assembly success rate

≥97%

Repeatability

＞5 times

Insertion and pull out

＞500 times

Fiber Type

Single mode

Standard

Telcordia GR-326-Core:2010 and IEC 61754-4:2002

Humidity

95%

Temperature range:

-40℃～+70℃

Locking mechanism in Port

Push-Pull

Re-assembly connector

≥3









Ordering information

Products

Part NO.

Remark

SC/UPC field connector

KDM0301

Blue

SC/APC field connector

KDM0302

Green

Tripping and cutting tool

KDMT0301

For fiber tripping and

Cutting to length

Fiber cleaver

KDMT0102

For cutting bare fiber







 Product Structure

Measured the Structure









Product length L≤45mm
