SC/APC female to SC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter

Normally used to connect two fiber optic cables with APC (angle polish) SC (male) connectors.

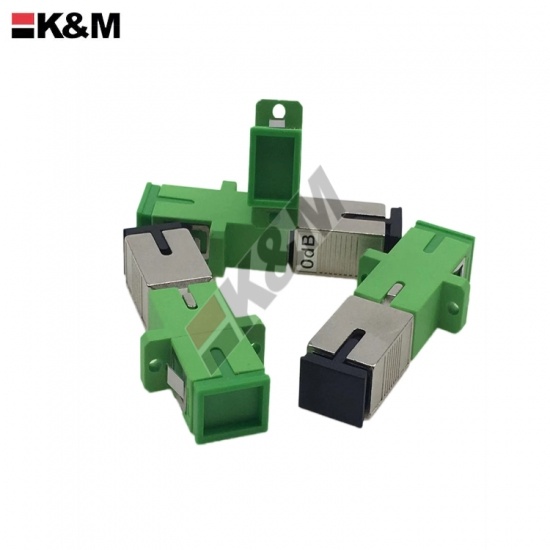

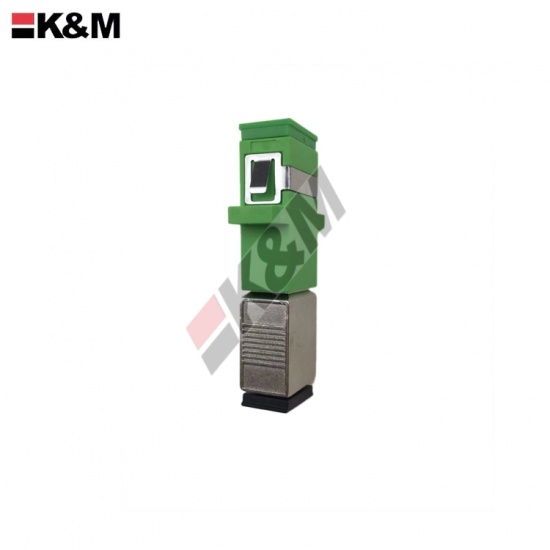

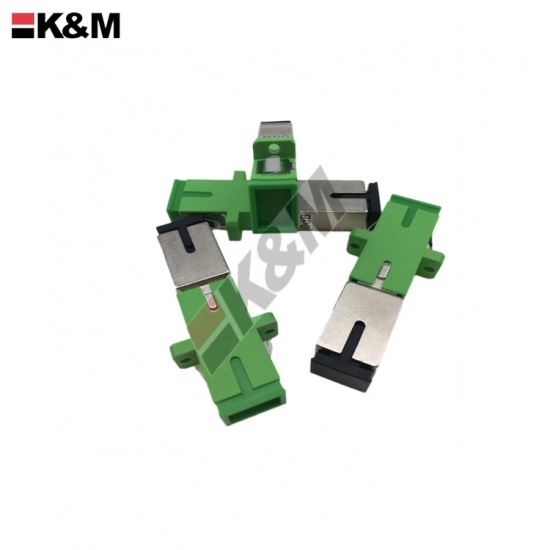

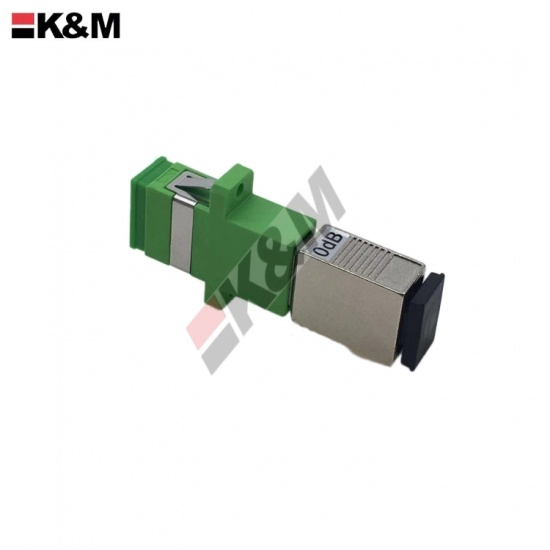

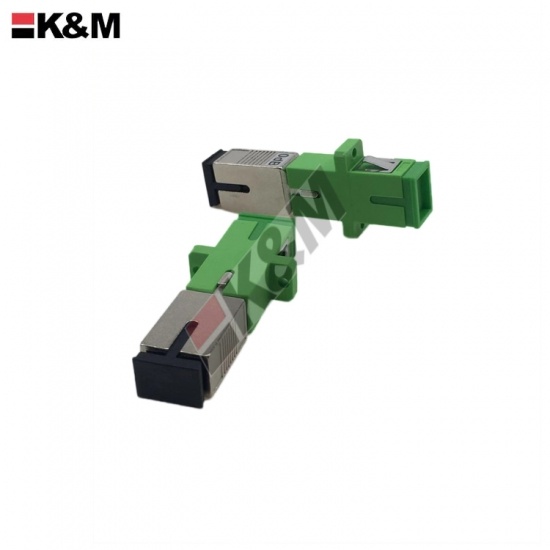

SC/APC feale to SC/PC Female Simplex SM Fiber Optic hybird Adapter
  • SC/APC feale to SC/PC Female Simplex SM Fiber Optic hybird Adapter
  • SC/APC feale to SC/PC Female Simplex SM Fiber Optic hybird Adapter
  • SC/APC feale to SC/PC Female Simplex SM Fiber Optic hybird Adapter
  • SC/APC feale to SC/PC Female Simplex SM Fiber Optic hybird Adapter
  • SC/APC feale to SC/PC Female Simplex SM Fiber Optic hybird Adapter
  • SC/APC feale to SC/PC Female Simplex SM Fiber Optic hybird Adapter
  • SC/APC feale to SC/PC Female Simplex SM Fiber Optic hybird Adapter

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMAD-SCAM-SCUM-SM-S

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU

  • Price:

    $4/Pcs

  • Market Price:

    $4.5

  • Price Range:

    100-1000/4$

  • Color:

    As Picture

  • Lead Time:

    7-15 days
Contact Now
  • Features & Benefits

SC/APC female to SC/PC Female Simplex Singlemode Fiber Optic Hybird Adapter

Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Key Features:

lower insertion loss

Use in Singlemode or Multimode applications.

Free-hanging or panel-mount design.

Dust caps protect against debris and contamination

RoHS Compliant


Functions:

A cable to cable fiber optic connection

Cable to equipment fiber optic connection

Specifications:

Material: Copper

Connectors:                                                             SC/APC (female) to SC/PC (female)
Body material:                                                         Polymer
Mounting:                Free standing or bulkhead, SC footprint hole (13.2mm x 9.7mm, 0.52in x 0.38in)
Alignment sleeve material:                                  Zirconia Ceramic
Channels:                                                               Simplex
Precision:                                                                Singlemode
Color:                                                                       Green
Insertion Loss (IL):                                                <0.2dB
Durability:                                                                <0.1dB change after 500 matings
Operating Temperature:                                       -4 ℃ to +75 ℃


Description & technical parameter of Fiber Optic Adapter:

Product

Adapter

Mode

S.M

M.M

Insertion Loss

≤0.2dB

≤0.3dB

Mating Durability(1000times)

Additional Loss≤0.1dB,Return Loss Variability 5dB

Temperature Stability(-40°C~85°C)

Additional Loss≤0.2dB,Return Loss Variability 5dB

Operating Temperature

-40°C~ +85°C

Storage Temperature

-40°C~ +85°C

Fiber Optic adapter ordering guide:



  Adapter type

FC, SC, ST, LC, MU, MTRJ, E2000, D4 and hybrid: FC-SC, FC-ST, SC-ST, SC-LC, LC-ST,SC-SC, LC-LC, E2000-FC, E2000-SC

Mode type

Singlemode, Multimode or APC

Fiber count

Simplex,Duplex or Four cores

Sleeve

Ceramic/Zirconia sleeve,made in China or Japan

Housing color

Standard(Blue/Beige/Green) or OEM color, with or without flange available

Packing

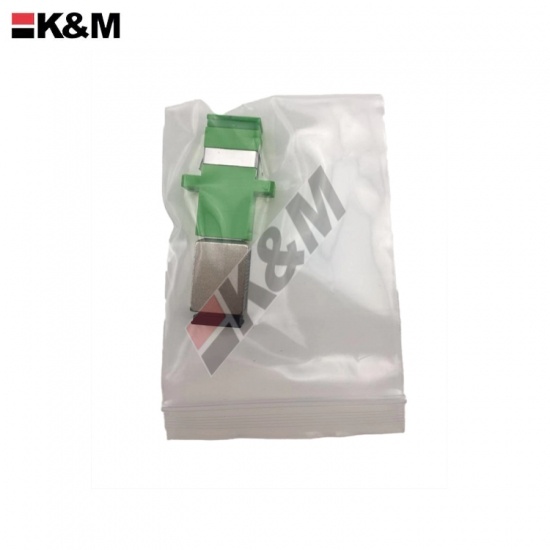

Normally polybag+carton box, can be customized

Our advantage and special services:

  1. With our own R&D, more completed production lines,advanced production & testing equipment experienced staffs, We're confident to provide you satisfied quality and  service with competitive price and punctual delivery.
  2. Rich experiences in OEM&ODM, besides standard items, we can help you design unique newproducts and put into production. We care about innovation and would like to change for you and grow up with you.
  3. Prompt answer for any question or inquiry within 1 working day.
  4. Confidential of your commercial information.
  5. One or several solutions available for every case.
  6. Using ERP Systerm to ensure that each link is correct.
