Outdoor Fiber Distribution Cabinet Capacity 48 Cores

K&M's Fiber Termination Box(FTB) Compliance with YD/T 778, YD/T 1636－2007, and YD/T893-1997

Outdoor Fiber optic termination box 48 Fibers
  • Outdoor Fiber optic termination box 48 Fibers

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMFTB- SM-48C

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU

  • Price:

    $50/Pcs

  • Market Price:

    $90

  • Price Range:

    500-1000/50$

  • Color:

    Gray

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

Outdoor Fiber Distribution Cabinet Capacity 48 Cores

Fiber optic termination box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises

 Features

  • Single-layer stainless steel cabinet, single door

  • Separated splicing and termination structure

  • Large storage space

  • 4-fiber adapter mounting bar

  • Available in SC, FC, duplex LC and ST adapters

  • Optical cable fixed with buckles, easy for operation

  • Sealed fiber spinning base and fiber lead-out base, good sealed performance

  • Installation modes: Wall-mounted， pole-mount

  • Can install splitter 1x2 to 1x32

 Applications

  • FTTX Systems

  • PON Networks

  • Fiber Optic Termination

  • CATV

 Specification

  • Wall Mounted Metal termination box for ourdoor use

  • Up to 48 Fiber capacity

  • Optical Splitter mountable:1x2 to 1x32

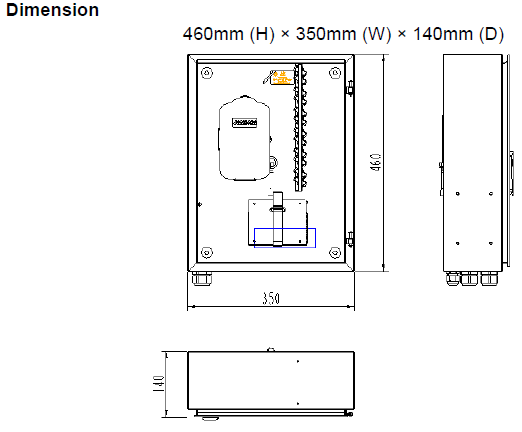

 Dimensions

Description FTB-
Dimensions(WxDxH) 460x350x140mm
Splice Capacity Max.48 Cores
Cable Port In:6-8-port
Color  Gray
Main Body Material Metal
Installation Type Wall /Pole/FloorType  Outdoor
