Intelligent Field Supervisory Unit

Intelligent Field Supervisory Unit FSU1000 Specification
Product Overview.
Intelligent Field Supervisory Unit, 1U rack-mounted, Linux system, built-in monitoring software, access to UPS, air conditioning, distribution cabinets, temperature and humidity, flooding, smoke sensors and other integrated power environment equipment; software for the B/S architecture, Web remote access; the system provides a standard external SNMP, MODBUS RTU/TCP, B interfaces, etc., for the integration of the upper monitoring system or third-party system integration.

FSU
  • FSU
  • FSU

  • Brand:

    K&M
Contact Now
  • Features & Benefits



Intelligent Field SupervisoryUnit FSU1000 Specification


Product Overview.
Intelligent Field Supervisory Unit, 1U rack-mounted, Linux system, built-in monitoring software, access to UPS, air conditioning, distribution cabinets, temperature and humidity, flooding, smoke sensors and other integrated power environment equipment; software for the B/S architecture, Web remote access; the system provides a standard external SNMP, MODBUS RTU/TCP, B interfaces, etc., for the integration of the upper monitoring system or third-party system integration.

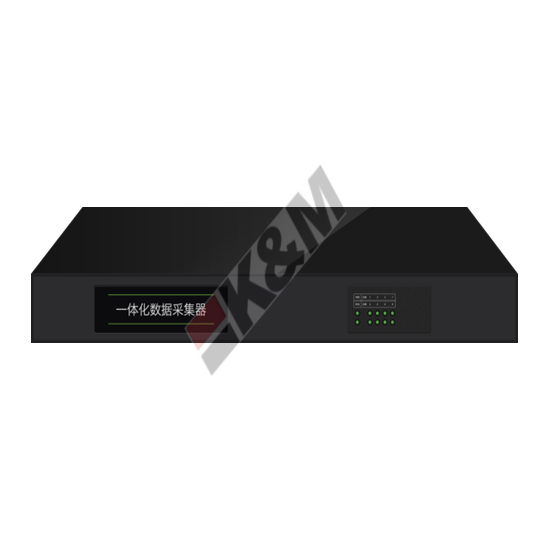

                                                   FSU1000D-Standard Front panel (DC powered)

                                                             FSU1000 (Rear panel)

Hardware Features.

  • Metal body, 19-inch standard cabinet installation.
  •  Embedded industrial processor, ARM cortex A35 512M memory, 16G storage space, support for 5,000 measurement point access and 50 million records storage. 3.
  • Integrates 8 RS485 ports, 9 DI, 4 DO, 1 USB port, 1 100Gb Ethernet port.
  • Support built-in 3G/4G modem/WiFi expansion. 5.
  • Standard model host provides 5 groups of 12V external output, the maximum output power of the machine 15W, to meet the sensor power supply needs.

Software Features.

  •        linux operating system, open source unrestricted, safe and reliable.
  •        Matching FSU monitoring software, intuitive interface, easy to operate, built-in software, no need to install.
  •        The software can monitor the object equipment for real-time monitoring, support for control operations, support for                    historical data and alarm records query.
  •       B/S architecture, direct Web remote access, no need to install the client.
  •       Support online configuration, no need to use another configuration tool, convenient for on-site debugging.

 Specification Parameters:

CPU Platform

ARMCortex-A35

Random access memory（DDR）

512M RAM

Storage (Flash)

16G EMMC

Operating system

Linux

Table 1-1 Motherboard Parameters

Power supply INPUT
（Two Options）

A: Single power supply 220VAC 240/336VDC   B:DC 48V

4-way DO interface

Standard DO Output Normally Open and Normally Closed Signal

9-way DI interface

Provide 8 general-purpose DI inputs (support dry contact or wet contact) for accessing sensors such as smoke, door magnetism, infrared, etc.; provide 1 dedicated DI input (accessing flooding film)

8-way 485 serial interface

Support RS485 communication mode, baud rate of 1200bps, 2400bps, 4800bps, 9600bps, 19200bps optional; word length of 5 bits to 8 bits; check mode for None, Odd, Even, Mark or Space, stop bit 1 or 2 bits.

1 USB port

1 Type A port, 2.0 standard (full speed: 12Mbits/s); capable of acquiring USB camera images, supporting standard USB flash drives and keyboards and mice

1 debug port

USB type-C

LAN1 interface

10/100M，half/full-duplex adaptive with auto-crossover function for network cables

                                            Table 1-2 Port parameter

Item

Parameter

Location

Indoor

Operating temperature

0℃～＋50℃

Relative humidity

20％～85％，non-condensing

Atmospheric pressure

70kPa～106kPa

Storage temperature

－40℃～＋70℃

Cooling method

Natural cold

Weight

2.0KG

Others

Dust meets the indoor standards of GR-63. No corrosive gases, flammable gases, oil mist, water vapor, dripping water or salinity

Table 1-3 Environmental parameters

Item

Parameter

Electrostatic protection

EN61000-4-2, Class 3, contact/air discharge; 6KV/8KV

Surge protection

EN61000-4-5, Class 3，4KV/2KV@8/20us&2Ω

                                           Table 1-4 Protection Parameters

Test Port

IO Port

Serial port, Ethernet port

power port

Inrush current 8/20us, positive and negative levels 5 times each

Differential mode 5kA

Differential mode 5kA

Differential mode 5kA

Common mode 5kA

Common mode 5kA

Common mode 5kA

                                    Table 1-5 Lightning protection parameters

Item

Parameter

Packing size

Size：440*200*44mm；

Packinglist

Main unit *1, mounting screws and lugs *1 set, manual *1, test report *1, power cord *1, certificate of conformity *1, plastic bag and foam *1 set

                                   Table 1-6 Packaging Parameters
