Features & Specification of Freestanding Cabinets:
Size: 42U
Front Glass Door
Dimension:
600mm (Width) x800mm (Depth)
600mm (Width) x600mm (Depth)
Product Orgin:
Shenzhen ChinaBrand:
K&MItem NO.:
KDMNWC-42U-600X800MMShipping Port:
Shenzhen/hkPayment:
TT/WUPrice:
$260/PcsMarket Price:
$400Price Range:
1-50/260$Color:
Black/GrayLead Time:
2 weeks

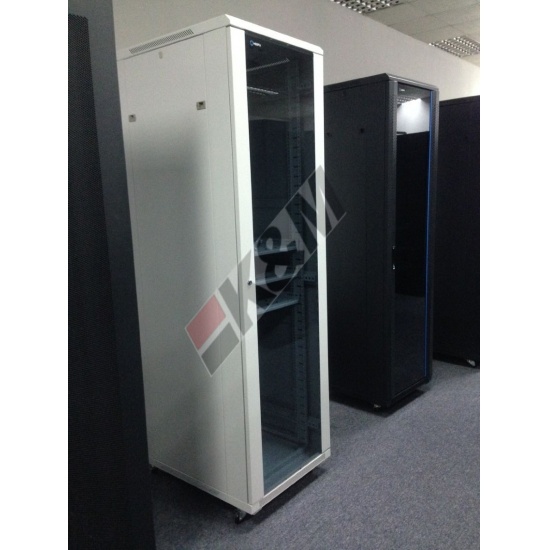

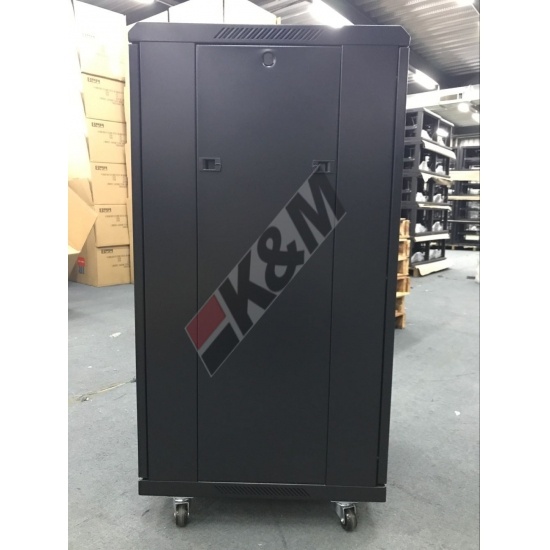

K&M 600mm Wide Floor Cabinet
The network cabinet is widely used in the system integration of installation, 19 "international standard, metric standard and ETSI standards, to provide reliable installation, support, power supply, ventilation, and equipment to provide effective protection of systems equipment and suitable for computer data, information, electronics, finance, electrical power engineering and other industries control system integration.
Technical data
Operating temperature:-5ºC ~ +55 ºC
Storage temperature:-25ºC ~ +55 ºC
Storage relative humidity:≤75%
Relative humidity: ≤85%(+30 ºC)
Atmospheric pressure:70Kpa ~ 106 Kpa
Features
Material: Q235-A high-quality SPCC cold-rolled steel,
Thickness: Mounting profile 1.5-2.0mm,Installation column 1.2-1.5mm
Color RAL9005(black) RAL7044(grey)
Adjustable installation column, feet and castor

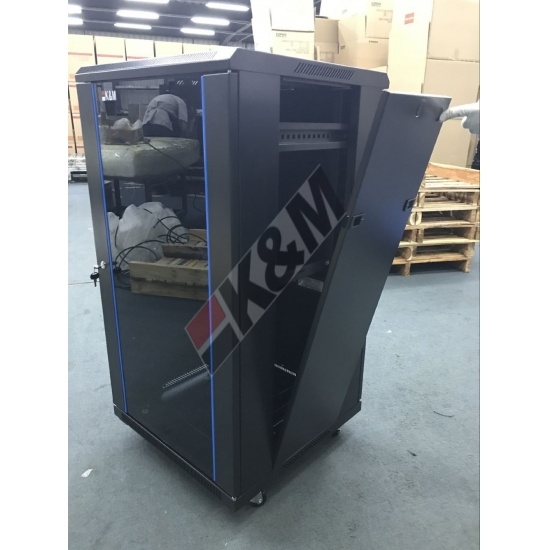

Tempered glass front door, steel rear door
Solid structure, the maximum static load up to 800KG
Surface treatment: degreasing, acid, phosphate, electrostatic spray
Fit for using in Managed Unified Communications projects
Ordering information
DESCRIPTION |
PART NO. |
DEMENIONS |
REMARKS |
KDM 42U black 600*800 Floor Cabinet |
KDM61019 |
2000×600×1000 |
42U |
KDM 42U black 600*800 Floor Cabinet |
KDM6820 |
2000×600×800 |
42U |
KDM 47U black 600*800 Floor Cabinet |
KDM6822 |
2200×600×800 |
47U |
KDM 47U black 600*800 Floor Cabinet |
KDM61022 |
2200×600×1000 |
47U |
KDM 47U black 600*800 Floor Cabinet |
KDM6622 |
2200×600×600 |
47U |
|
