1M SC PC to SC PC Duplex 3.0mm PVC 9/125 Singlemode Patch cord

High Performance Patch Cord

SC PC to SC PC Duplex 3.0mm PVC 9/125 Singlemode Patch cord
  • SC PC to SC PC Duplex 3.0mm PVC 9/125 Singlemode Patch cord
  • SC PC to SC PC Duplex 3.0mm PVC 9/125 Singlemode Patch cord

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDM-SM-SCU-SCU-DX-1M

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU

  • Price:

    $0.8/Pcs

  • Market Price:

    $1

  • Price Range:

    500-1000/0.8$

  • Color:

    Optional

  • Lead Time:

    7 days
Contact Now
  • Features & Benefits

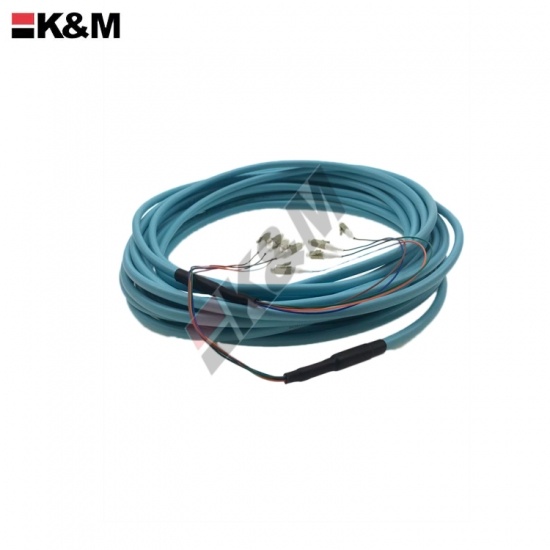

FIBER OPTIC PATCH CORD


K&M fiber optic patch cords are high performance patch cords in the range of best in class Singlemode and Multimode patch cords employing highest grade components, manufacturing processes and test methods that offer excellent performance for demanding telecommunications and datacenter applications.

Features

• Conform to IEC, EIA-TIA and Telcordia

• RoHS compliant

• Low insertion loss (<0.3dB)

• High return loss (UPC:>50dB, APC: >60dB)

• 2mm to 3mm cable diameter

• LSZH outer jacket, with Aramid yarns strength member

• Available in SC, ST, FC, LC, E2000 & MU connector

• Available in Simplex and Duplex

• Available in SM, MM (OM1, OM2, OM3 and OM4)

• Yellow: Singlemode

• Orange: Multimode (OM1 & OM2)

• Aqua: Multimode (OM3 & OM4)

• Varity of lengths

Applications

• Datacenter

• Telecom networks

• CATV

• LAN and WAN

• FTTX

• Broadband network

• Active to passive patching

• Active to Active patching

• Passive to passive patching

Ordering Information

BLANKING PLATES

Description Part No.

Fiber Optic Patch Cord, LSZH outer jacket KMFOPCxxyyzzzaabc

xx: Connector type (SC, LC, FC, ST, MU, E2) – End#01

yy: Connector type (SC, LC, FC, ST, MU, E2) – End#02

zzz: Fiber type (OS2, OM1, OM2, OM3, OM4)

aa: Patch cord length (01, 02, 03, 05, 10) in meters*

b: D (Duplex), S (Simplex)

c: Connector type: P (PC), U (UPC), A (APC) **


Ordering Sample: KMFOPCSCLCOS203DA (Fiber optic patch cord, SC-LC, Singlemode, 3 meter, Duplex, APC)


* Other lengths are available up on request (lengths have tolerance 0 to ± 0.2m)

** Multimode: PC (Beige), Singlemode: UPC (Blue) & APC (Green)


Standard outer diameter is 0.9/2.0/3.0mm, other diameters are available up on request
