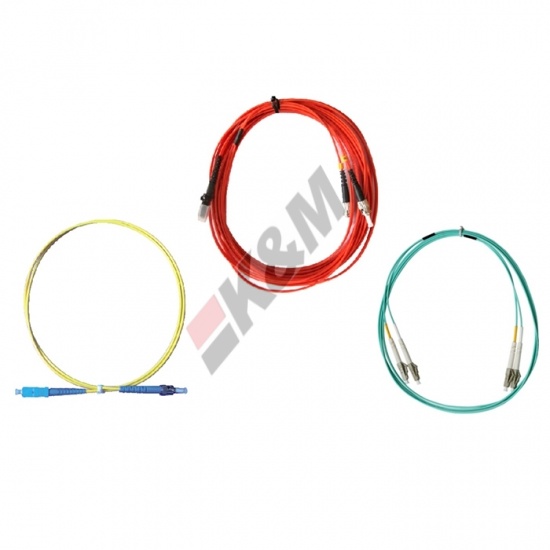

1M LC PC to LC PC Duplex 3.0mm LSZH 9/125 Singlemode Patch cord

Compliant with IEEE 802.3z standards for Fast Ethernet and Gigabit Ethernet applications

LC/PC Pigtail 1.5m and SM / MM/Yellow / PVC/LSZH
  • LC/PC Pigtail 1.5m and SM / MM/Yellow / PVC/LSZH
  • LC/PC Pigtail 1.5m and SM / MM/Yellow / PVC/LSZH
  • LC/PC Pigtail 1.5m and SM / MM/Yellow / PVC/LSZH

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDM-SM-LC-LC-DX-1M

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/LC/WU

  • Price:

    $0.8/Pcs

  • Market Price:

    $1

  • Price Range:

    5000-10000/0.8$

  • Color:

    Optional

  • Lead Time:

    15 days
Contact Now
  • Features & Benefits

1M LC PC to LC PC  Duplex 3.0mm LSZH 9/125 Singlemode Patch cord

We provide the broadest choices of Simplex/Duplex including high-grade FC, SC, ST, LC, MTRJ, E2000 and MU with Ultra-polished (UPC), Angle-Polished (APC) connectors or other polish requirement. Our daily output is 11500 pieces. We keep sufficient storage of the most common types of patch cords for instantly delivery. With this service, you no longer suffer from long term waiting.

Item

Single mode UPC

Single mode APC

Multimode

Insertion Loss

≤ 0.2dB (typical)  0.3dB(Max)

≤ 0.2dB (typical)  0.3dB(Max)

≤ 0.2dB (typical)  0.3dB(Max)

Return Loss

≥50 dB

≥60 dB

≥25 dB

Durability

Min 500 mate times

Operating Temperature

-40℃ to+85℃

Cord length

Customized

Optical fiber

1-12 fiber



 Application:

Building interconnections (campus LAN)

Trucking lines direct to telecommunications closet

Fiber patch panels within communications closets

Links between electronic equipment and fiber panels

 Ordering Information

X

Mode

S:Singlemode     M:Multimode

X

Cable Name

WX: Single-or Duplex Cable    XL: Multimode Bundled Cable

X

Fiber Type

1: G652  2: G655  3: 50/125  4: 62.5/125 5：G657A 6:OS1

-X

Connector Type

FC / SC / LC / ST / MU / MT-RJ/E2000

X

End Surface Type

PC / SPC / UPC / APC

-X

Fiber cores

01:1cores  02:2cores  04:4cores  06:6cores  08:8cores  12:12cores

X

Cable Length*

01:1m  03:3m  05:5m  10:10m

X

Pigtail/patch cord

A: Pigtail     B: Patch cord

X

Cable Outer Diameter

1: Ф0.9   2: Ф2.0   3: Ф3.0
