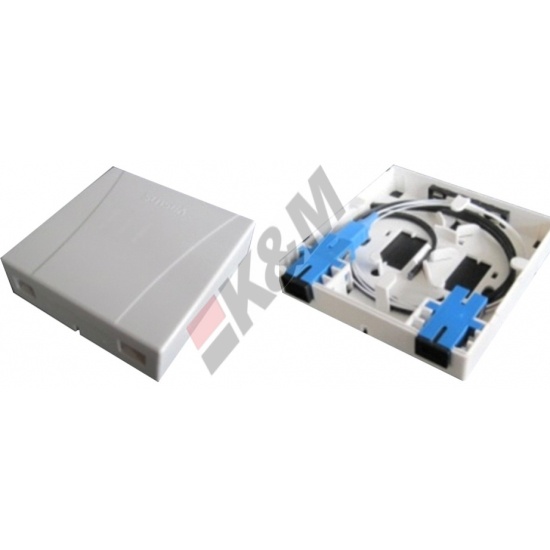

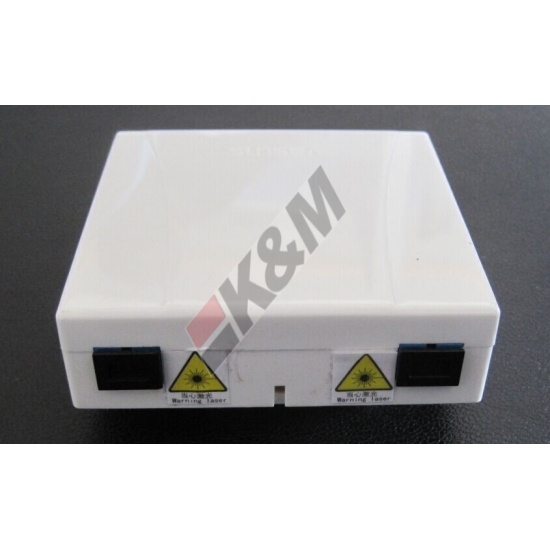

Optical socket 2xSC

Fiber socket-outlet
  • Fiber socket-outlet
  • Fiber socket-outlet
  • Fiber socket-outlet

  • Brand:

    K&M

  • Item NO.:

    KDMATB2SC

  • Shipping Port:

    Shenzhen,Hongkong

  • Payment:

    TT,LC,Paypal

  • Color:

    white

  • Lead Time:

    7 days
Contact Now
  • Features & Benefits

Optical Socket

Description

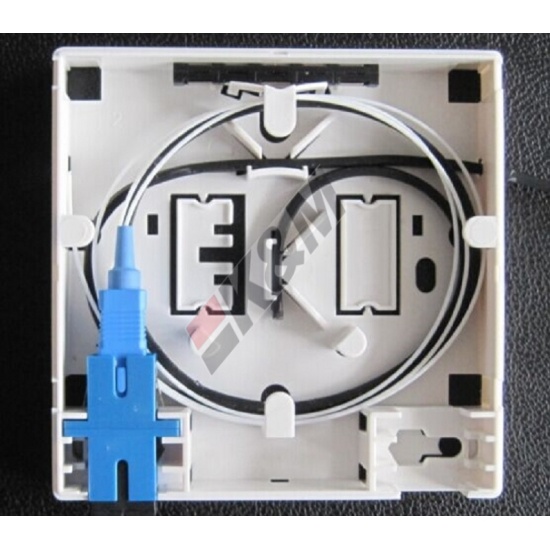

Optical Socket serves the termination of the individual residential cabling. The outlet takes up 1 to 4 connections as well as sufficient reserve of bend radius optimized fibers. The design of the fiber over length management guarantees long-term stability for the fibers. An integrated laser protection plus an additional dust prevention as well as protection against unintended plug out of PatchCords are more features of the optical outlet. The flat surface mount design can also be used for flush mount installations.

Features

·        Installation friendly, optical telecommunication outlet consisting of base, cover, adapter and mounting plate

·        Available with 2xSC format or 4xLC

·        Adapters, respectively connector interfaces are dust and laser protected

·        Radius protected fiber overlength management, minimum-bend radius of 15 mm

·        Up to 4 crimp- or fusion splices, storage of heatshrink or sandwich splice protectors

·        All-side cable entry to break-out

·        Cover to be screwed on, screw can be sealed

·        Possibility of cover labelling

·        Colour in pure white

·        Patchcord locking features

Specification:

Characteristics

Values

Dimensions (W × L × H)

86 x 86 x 30mm

Capacity of detachable optical connections

4 x LC and 2 x SC

Way of adapter mounting

flange snapped-in

Dimension (Ø) cable entry to break-out

5.0mm

Material:
cover / base / Adapter plate
mounting plate


PC+ABS
steel, zinc plated

Colour

RAL 9010, pure white

Ingress protection degree (EN60529)

IP20

Flammabilty rating

UL 94V-1 or V-0

Free of halogen

yes

Chemical

good

RoHS requirements

comply
