FIBER OPTIC OUTLET

FIBER OPTIC Socket
  • FIBER OPTIC Socket
  • FIBER OPTIC Socket
  • FIBER OPTIC Socket

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KMFOUT2SCz

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/LC/WU

  • Price:

    $0.3/pcs

  • Market Price:

    $0.6

  • Price Range:

    500-5000/0.3$

  • Color:

    Gray

  • Lead Time:

    2 weeks
Contact Now
  • Features & Benefits

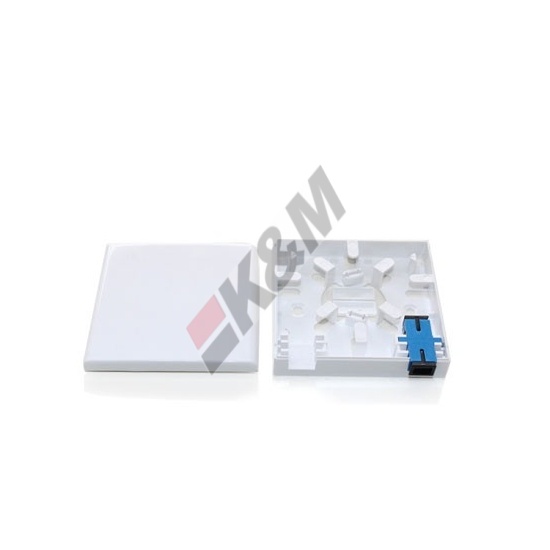

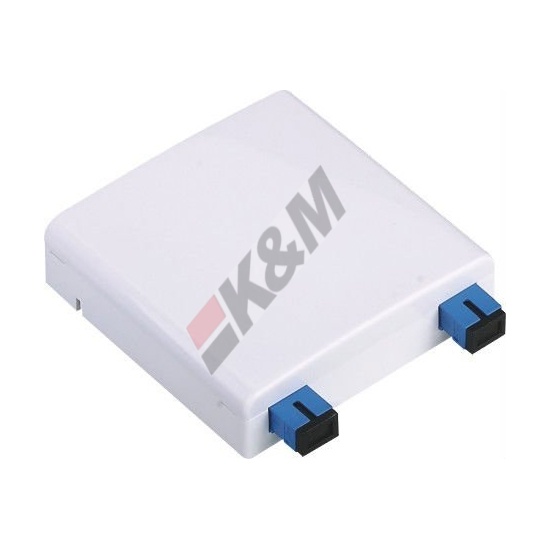

 FIBER OPTIC OUTLET

 Fiber optic outlet is a rugged, low cost, low profile interconnection unit suitable for all Fiber Optic and FTTx application.

 Features

  • Indoor type

  • Small size

  • Simple decorative design

  • Easy installation

  • Easy maintenance

  • Low cost solution with high protection for the terminated fibers

 Applications

  • FTTX Systems

  • PON Networks

  • CATV

 Specification

Fiber capacity 1 to 4 fibers

Number of Ports: 1 SC Simplex (in) + 1 SC Simplex (out)* Optional

Operating temperature -20°C to + 50ºC

Storage temperature -20°C to + 60ºC

Connector attenuation ≤ 0.35 dB

Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Number of termination > 500 times

 Dimensions

Description

Dimension (H x W x D mm)

FO Outlet

86 x 86 x 25

 Ordering Information

FDH with PLC Splitter

Description

Part No.

Fiber Optic Outlet (Single Connector – Out)

KMFOUT1SCz

Fiber Optic Outlet (Two Connectors – In/Out)

KMFOUT2SCz

z: Connector surface type (U=UPC, A=APC)

 Ordering Sample: KMFOUT1SCA (Fiber Outlet, 1 port-Out, SC coupler, APC)
