Armored +2 Steel Wires Optic Outdoor GYTW fiber cable

Armored Optic Outdoor GYTW fiber cable
  • Armored Optic Outdoor GYTW fiber cable
  • Armored Optic Outdoor GYTW fiber cable

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMGYTW12C

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/LC/WU

  • Price:

    $0.33/m

  • Market Price:

    $0.4

  • Price Range:

    6000-24000/0$

  • Color:

    Black
Contact Now
  • Features & Benefits

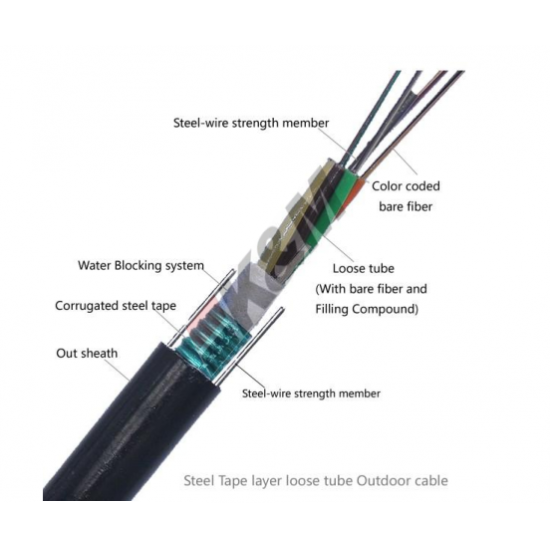

 Armored+2 Steel Wires Optic Outdoor GYTW fiber cable

For Aerial &Duct installation cable

CROSS SECTIONAL DIAGRAM


2d4cc315-cdf8-4fd7-9d63-492c38f66dad





 TECHNICAL SPECIFICATION

Fiber count

8

12

Loose Tube

OD(mm):

1.5±0.1

1.5±0.1

Material：

PBT

Max fiber count/tube

4

4

Core unit

5

5

Steel/Coating （mm）

1.2

1.2

2 Steel/Coating （mm）

1.0

1.0

Water Block Material：

Water blocking Compound/ tape

Armored

Corrugated Steel tape

Sheath

Thickness:

Non. 2.2mm

Material：

PE

OD of cable  (mm)

9.9±0.3

Net weight ( kg/km)

105

FIBER AND LOOSE BUFFER TUBE IDENTIFICATION

NO.

1

2

3

4

5

6

7

8

9

10

11

12

Tube Color

Blue

Orange

Green

Brown

Slate

White

Red

Black

Yellow

Violet

Pink

Aqua

NO.

1

2

3

4

5

6

7

8

9

10

11

12

Fiber Color

Blue

Orange

Green

Brown

Slate

natural

Red

Black

Yellow

Violet

Pink

Aqua

OPTICAL FIBER

Single Mode Fiber

LTEMS

UNITS

SPECIFICATION

Fiber type



G652D

G657A

Attenuation

dB/km

1310nm ≤ 0.36

1550nm ≤ 0.22

Chromatic Dispersion

ps/nm.km

1310nm≤ 3.5

1550nm≤ 18

1625nm≤ 22

Zero Dispersion Slope

ps/nm2.km

≤ 0.092

Zero Dispersion Wavelength

nm

1300 ~ 1324

Cut-off Wavelength (lcc)

nm

 ≤ 1260

Attenuation vs. Bending

(60mm x100turns)

dB

(30mm radius，100ring

)≤ 0.1 @ 1625nm

(10mm radius，1ring)≤ 1.5 @ 1625nm

Mode Field Diameter

mm

9.2 ± 0.4 at 1310nm

9.2 ± 0.4 at 1310nm

Core-Clad Concentricity

mm

≤ 0.5

≤ 0.5

Cladding Diameter

mm

125±1

125±1

Cladding Non-circularity

%

≤ 0.8

≤ 0.8

Coating Diameter

mm

245±5

245±5

Proof Test

Gpa

≥ 0.69

≥ 0.69

Multi Mode Fibers

LTEMS

UNITS

SPECIFICATION

62.5/125

50/125

OM3-150

OM3-300

OM4-550

Fiber Core Diameter

μm

62.5±2.5

50.0±2.5

50.0±2.5

Fiber Core Non-circularity

%

≤6.0

≤6.0

≤6.0

Cladding Diameter

μm

125.0±1.0

125.0±1.0

125.0±1.0

Cladding Non-circularity

%

≤2.0

≤2.0

≤2.0

Coating Diameter

μm

245±10

245±10

245±10

C0at-Clad Concentricity

μm

≤12.0

≤12.0

≤12.0

Coating Non-circularity

%

≤8.0

≤8.0

≤8.0

Core-Clad Concentricity

μm

≤1.5

≤1.5

≤1.5

Attenuation

850nm

dB/km

3.0

3.0

3.0

1300nm

dB/km

1.5

1.5

1.5

OFL

850nm

MHz﹒km

≥160

≥200

 ≥700

 ≥1500

 ≥3500

1300nm

MHz﹒km

≥300

≥400

 ≥500

 ≥500

 ≥500

The biggest theory numerical aperture

/

0.275±0.015

0.200±0.015

0.200±0.015

Mechanical and Environmental Performance of the Cable

NO.

ITEMS

TEST METHOD

ACCEPTANCE CRITERIA

1

Tensile Loading Test



#Test method:IEC 60794-1-E1

-. Long-tensile load：600N

-. Short-tensile load：1500N

-. Cable length：≥50m

-. Attenuation increment@1550nm:≤0.1dB

-. No jacket cracking and fiber breakage

2

Crush Resistance Test

#Test method:IEC 60794-1-E3

-.Long load：300 N/100mm

-.Short load：1000 N/100mm

Load time：1 minutes

-. Attenuation increment@1550nm:≤0.1dB

-. No jacket cracking and fiber breakage

3

Impact Resistance Test

#Test method:IEC 60794-1-E4

-.Impact height：１ｍ

-.Impact weigh： 450ｇ

-.Impact point：≥5

-.Impact frequency：≥3/point

-. Attenuation increment@1550nm:≤0.1dB

-. No jacket cracking and fiber breakage

4

Repeated Bending

#Test method:IEC 60794-1-E6

-.Mandrel diameter：20D (D = cable diameter)

-.Subject weight：15kg

-.Bending frequency：30 times

-.Bending speed：2s/time

-. Attenuation increment@1550nm:≤0.1dB

-. No jacket cracking and fiber breakage

5

Torsion Test

#Test method:IEC 60794-1-E7

-.Length：1m

-.Subject weight:25kg

-.Angle：±180 degree

-.Frequency：≥10/point

-. Attenuation increment@1550nm:≤0.1dB

-. No jacket cracking and fiber breakage

6

Water Penetration Test

#Test method:IEC 60794-1-F5B

-.Height of pressure head：1m

-.Length of specimen：3m

-.Test time: 24 hours

-. No leakage through the open cable end

7

Temperature Cycling Test

#Test method:IEC 60794-1-F1

-.Temperature steps：＋20℃、－40℃、＋70℃、＋20℃ 

-.Testing Time：24 hours/step

-.Cycle index：2

-. Attenuation increment@1550nm:≤0.1dB

-. No jacket cracking and fiber breakage

8

Drop Performance



#Test method:IEC 60794-1-E14

-.Testing length：30cm

-.Temperature range：70±2℃

-.Testing Time：24 hours

-. No filling compound drop out

9

Temperature

Operating:-40℃~+60℃

Store/Transport :-50℃~+70℃

Installation -20℃~+60℃

FIBER OPTIC CABLE BENDING RADIUS

Static bending：≥10 times than cable out diameter

 Dynamic bending：≥20times than cable out diameter.

PACKAGE AND MARK

Not allowed two length units of cable in one drum, two ends should be sealed,. Two ends should be packed inside drum, reserve length of cable not less than 3 meters.


Cable Mark: Brand、Cable type、Fiber type and counts、Year of manufacture、Length mar。
