Fiber Optic Sliding type 144 ODF SCAPC Modular type complete with SCAPC adaptor 144pecs only, 5U, with accessories , bared fiber protection tube and cassettes of 24core 6 pecs,19'&21'/ETSI fixing barckets


Front panel is transparent glass door，it is convenient to see inside,Label is made removable
Rack-mounted, 19 inch, modular design, flexible installation, convenient management and expand. Inlet cables are from the right or left, and outlet cables are at the two sides of front.
convenient operation and maintenance
High-quality alloy aluminium enclosure, spraying for surface treatment, pleasing appearance and light in weight

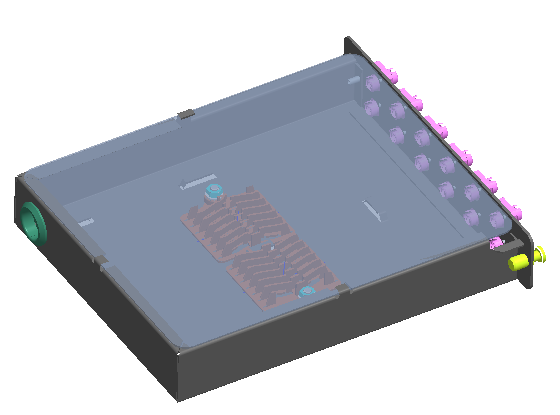

Each module can accommodate up to 12 splicing and adapter.




144 fiber 5U SC APC sliding ODF
  • 144 fiber 5U SC APC sliding ODF

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMODF-SCA-Modular-1

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/LC/WU

  • Price:

    $250/Pcs

  • Market Price:

    $300

  • Price Range:

    500-1000/250$

  • Color:

    Black/Gray

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

144-port Optical Distribution Unit (5U)

1.      Application

It is applicable to high-capacity and high-density data center, convenient management and reliable connection.

2.  Ambient Conditions

l  Operation temperature:  -5°C ~ +40°C

l  Storage temperature:    -25°C~ + 55°C

l  Relative humidity:       ≤ 85% (+30°C)

l  Atmospheric pressure:   70 ~ 106 kPa

3.  Technical Specifications

Electrical Performance:

l  Connector attenuation (insertion, interchange, repeat): ≤ 0.5 dB

l  Return loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Physical Performance:

l  Clear identification to avoid possible disorder arising from removal during maintenance

l  Number of reterminations: > 500 times

l  Perfect optical route design to ensure bend radius of fibers greater than 30 mm

l  Inflammability: Compliance with GB5169.7 Experiment A

4.      Features

l  Rack-mounted, 19 inch, modular design, flexible installation, convenient management and expand.

l  Inlet cables are from the right or left, and outlet cables are at the two sides of front.

l  convenient operation and maintenance

l  High-quality alloy aluminium enclosure, spraying for surface treatment, pleasing appearance and light in weight

l  Each module can accommodate up to 12 splicing and adapter

 .   Apprance Structure











Dimensions of 144-fiber optical termination unit:





Figure 2

6.      Ordering Information

Name

Ordering code

Model

Dimensions

Remarks

H x W x D（mm）

144-fiber Optical Distribution Unit 5U

FOA801010

E01C8-144

220.5X482X411

SC/FC Adapter
