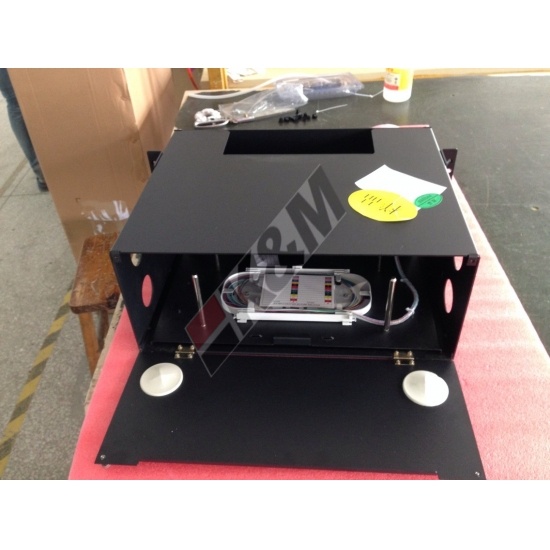

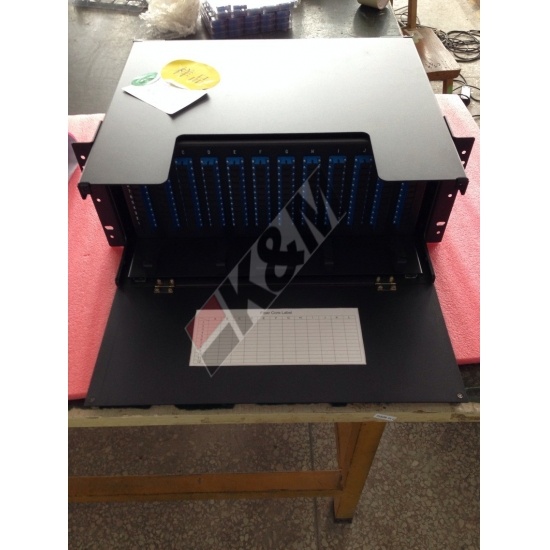

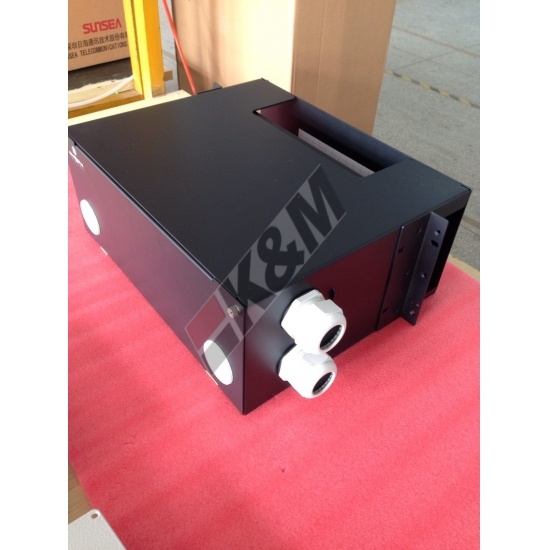

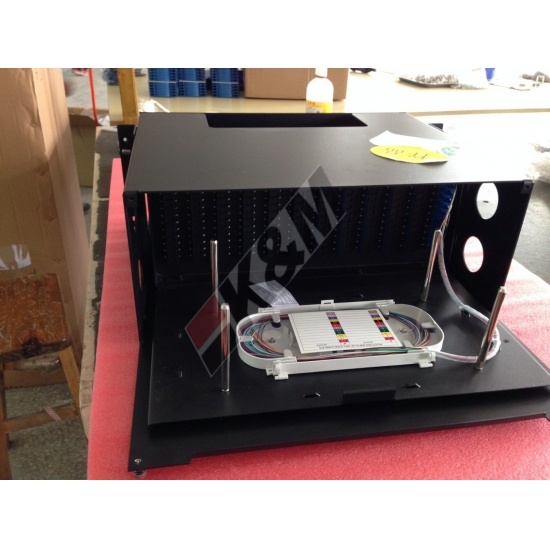

Fiber Optic Sliding type 144 ODF SC sliding type complete with SC/PC adaptor 144pecs only, 4U, with accessories , bared fiber protection tube and cassettes of 24core 6 pecs,19'&21'/ETSI fixing barckets

Optical Fiber Patch Panel
  • Optical Fiber Patch Panel
  • Optical Fiber Patch Panel
  • Optical Fiber Patch Panel
  • Optical Fiber Patch Panel
  • Optical Fiber Patch Panel

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMODF144SC0008

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/LC/WU

  • Price:

    $105/pcs

  • Market Price:

    $120

  • Price Range:

    100-1000/105$

  • Color:

    Black

  • Lead Time:

    2 weeks
Contact Now
  • Features & Benefits

Optical Fiber Patch Panel

 Description

The optical fiber patch panel is used for termination of backbone optical cables as well as connection to network switching equipment of the Local Area Network (LAN). It is mainly applied to complete the fixation，splice and cabling management of the equipment room, which supports single mode or multimode fiber optics. Mainly used to achieve the connection, distribution and dispatch between the outside optical cable and the optical transmission equipment. The product provides secure, reliable, flexible fiber optic management, widely used in broadband access network project.

Features

  1.  Dual structure of cover-opening and pull-out, saving space, and convenient operation;

  2. Perfect design for firm protection of cable termination and optical fiber adapter installation;

  3. Convenient and flexible leading in/out of optic fibers, and sufficient space for coiling optic fibers;

  4. Multiple specifications, wide application;

  5. Compact structure, small size and light weight; made of hard cold-roll steel sheets,with plastic sprayed surface and pleasant appearance;

  6. Multiple fixing positions for optic fibers on both sides and the back rear, making the inlet of optic fiber convenient and flexible for peeling protection;

  7. Available in 144fiber optical patch panels;

  8. Available in  SC adapters respectively.

  9.  Mechanical and physical parameters

  10. Color：B04

  11. Material: High-quality cold-rolled steel sheet

Dimensions:

144-fiber optical patch panel 4U (L×H×W): 482.6 mm × 176mm × 350mm

Application Scope :

  1.  Centralized optical fiber termination

  2. Telecommunication room or main distribution room

  3. Equipment rack or cabinet (19 inches; 23 inches when a bracket is configured)

  4. Telecommunication equipment racks

 Product Structure












 Ordering information :144F SC patch panel

Product Name

Order Code

Model

Quantity

Specification(HxWxD)(mm)

Remarks

Dimensions



Package Size

144-fiber optical patch panel





1







Adapter

300246281



144





SC/APC



Related Tags :

Optical Fiber Patch Panel 144 fiber ODF 144 cores 4U ODF
