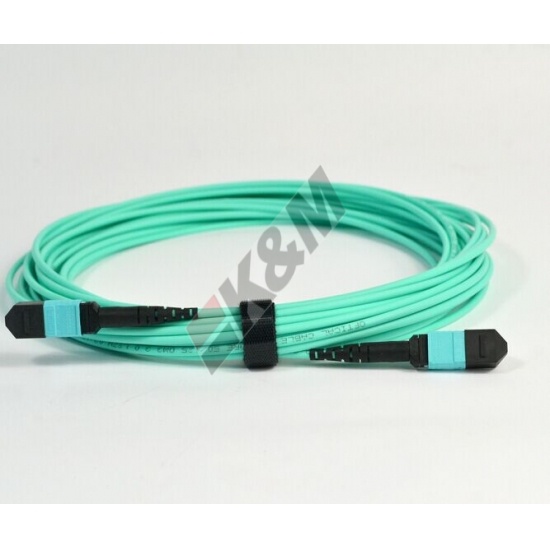

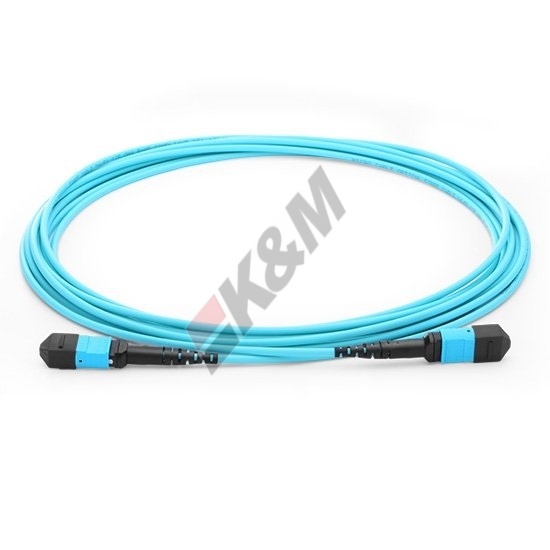

Fiber Optic Jumper 12 fibers OM3 MPO Female straight

MPO Femal Flipped 3 tmrs LSZH
  • MPO Femal Flipped 3 tmrs LSZH
  • MPO Femal Flipped 3 tmrs LSZH
  • MPO Femal Flipped 3 tmrs LSZH
  • MPO Femal Flipped 3 tmrs LSZH
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDMMPO12C om3
  • Shipping Port:

    Shenzhen/HK
  • Payment:

    TT/WU
  • Color:

    Aqua
  • Lead Time:

    7 days
Contact Now
  • Features & Benefits

Quick Details:

Brand Name: K&M/OEM

Model Number: MPO

Fiber Type: MM

Inserion Loss: <0.6db

Fiber Length: 1M,2M,3M,5M or customized


We supply MTP and MPO fiber optic cables.  These are available in female to female or a male to male and male to female configurations.  The male version has MTP pins.  These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations.  Many additional options and combinations are available.  All multi fiber optic cables are customizable.

Quick Details:

Connector End face: MPO end face geometry requirements: EN50377-15-1

Polishing Quality:: Polished end-face quality: IEC61300-3-35

Our MPO patch cables are designed for data center solutions supporting the topologies such as 10
Gigabit Ethernet, Fiber Channel or Infiniband - as specified in the data center standards EN50173-5 and
ISO/IEC 24764.



MPO Detail:



MPO patch cables are used to make the interconnections between the MPO cassettes or connections to active equipment with MPO/MTP interface.

In cases where an MPO patch cord is connected (through an MPO coupler) to another MPO patch cable, one of the two MPO connectors must be male (equipped with pins).

MPO patch cables are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped

MPO patch cables are available in multi-mode and single-mode fiber cable.



Applications



Performance of Assemblies MTP / MPO Termination:


Type/Performance

Singlemode(APC polish)

Multimode(PC / Flat Polish)



Standard

Elite Low Loss

Standard

Elite Low Loss

Maximum Insertion Loss

≤ 0.75dB

≤ 0.35dB

≤ 0.60dB

≤ 0.35dB

Return Loss

≥ 50dB

N/A

Operating Temperature

-40°C to 80°C

40°C to 80°C

Test Wavelength

1310nm

850nm
