1XN Box Type PLC Splitter

Description

We offer several types of high-quality splitters. These products are designed for long-term reliability, superior performance, and a wide range of uses in fiber optics including optical transmission, long haul, subscriber loop, and fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network.
Our optical splitters are designed for consistent performance, low optical loss, low polarization sensitivity, superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.

Ø

Ø Features

* Excellent Uniformity

* High reliability, stability

* The quality is more credible and stable than fusion coupler splitter

* With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity,

* Broadband operating, wavelength : 1260nm ~1650nm wavelength range to achieve the planned distribution of optical power

Ø Applications:

*Access Network, EPON, GPON or WDM-PON

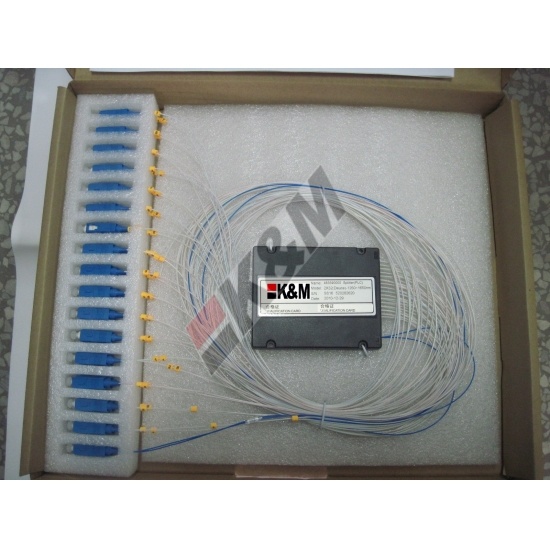

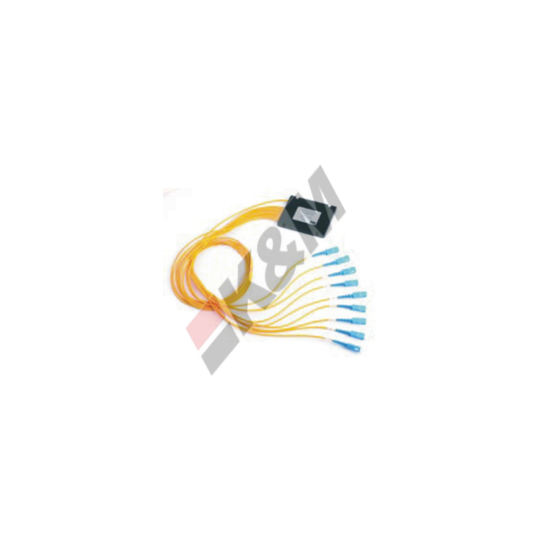

Box Type PLC Splitter
  • Box Type PLC Splitter
  • Box Type PLC Splitter
  • Box Type PLC Splitter
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDM0009
  • Shipping Port:

    Shenzhen/hk
  • Payment:

    FOB/EXW/CIF
  • Price:

    $6/Pcs
  • Market Price:

    $8
  • Price Range:

    500-1000/6$
  • Color:

    Black
  • Lead Time:

    7 days
Contact Now
  • Features & Benefits


Description

We offer several types of high-quality splitters. These products are designed for long-term reliability, superior performance, and a wide range of uses in fiber optics including optical transmission, long haul, subscriber loop, and fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network.
Our optical splitters are designed for consistent performance, low optical loss, low polarization sensitivity, superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.



Ø  Features

* Excellent Uniformity




* High reliability, stability

* The quality is more credible and stable than fusion coupler splitter

* With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity,

* Broadband operating, wavelength : 1260nm ~1650nm wavelength range to achieve the planned distribution of optical power



Ø  Applications:

*Access Network, EPON, GPON or WDM-PON

* CATV system

* Optical communication systems

* Testing instruments

* FTTH, FTTB

Ø  Technical Specifications



Table1. 1XN PLC splitter



Parameters

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Operating Wavelength (nm)

12601650

Insertion Loss (dB)

≤3.9

≤7.1

≤10.2

≤13.5

≤16.8

≤20.5

≤23.4

Loss Uniformity (dB)

≤0.8

≤0.8

≤0.8

≤1.0

≤1.5

≤2.0

≤2.5

Return Loss (dB)

≥55

PDL (dB)

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.5

≤0.5

WDL(dB)

≤0.8

≤0.8

≤1.0

≤1.0

≤1.2

≤1.5

≤1.5

Directivity (dB)

≥55

Pigtail Length (m)

1.0(±0.1) or customer specified

Fiber Type

G657A or customer specified

Note: All measurements were done at room temperature, and specifications exclude connectors



*The above specification is without connector.with connectors should add 0.3dB.

*The above specification is without connector. With connectors RL50dB(UPC)RL55dB(APC)



Table2. 2XN PLC splitter



Parameters

2x2

2X4

2x8

2x16

2x32

2x64

2x128

Operating Wavelength (nm)

12601650

Insertion Loss (dB)

≤4.2

≤7.4

≤10.5

≤13.8

≤17.1

≤20.8

≤23.7

Loss Uniformity (dB)

≤1.1

≤1.2

≤1.2

≤1.5

≤1.8

≤2.5

≤2.5

Return Loss (dB)

≥55

PDL (dB)

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.5

≤0.5

WDL(dB)

≤0.8

≤1.0

≤1.0

≤1.5

≤1.5

≤1.5

≤1.5

Directivity (dB)

≥55

Pigtail Length (m)

1.0(±0.1) or customer specified

Fiber Type

G657A or customer specified

Note: All measurements were done at room temperature, and specifications exclude connectors



 *The above specification is without connector. with connectors should add 0.3dB.

*The above specification is without connector. With connectors RL50dB(UPC)RL55dB(APC)



WDL TEST CURVE (1250nm1660nm)





                1X2 PLC Splitter                                       1X64 PLC Splitter



Ø  Product Information

n  Appearance dimensions



1 Box PLC splitter (dimension: Unit is millimeter).Table3







1x2

1x4

1x8

1x16

1x32

1X64

1X128

2x2

2x4

2x8

2x16

2x32

2x64

2x128

L

≤100

≤120

≤140/120

≤180

≤100

≤120

≤140/120

≤180

W

≤80

≤80

≤115/80

≤150

≤80

≤80

≤115/80

≤150

H

≤10

≤18

≤18/25

≤22

≤10

≤18

≤18/25

≤22

MXN

70X74

80X74

100X106 or 80X74

142X140

70X74

80X74

100X106 or 80X74

142X140































2.Mini-Package PLC splitter (dimension: Unit is millimeter).Table4





1x2

1x4

1x8

1x16

1x32

1X64

2X2

2x4

2x8

2x16

2x32

2x64

L

60

80

100

70

80

100

W

12

20

40

12

20

40

H

4

6

6

4

6

6



 3 Bare fiber-Package PLC splitter (dimension: Unit is millimeter).Table5



1x2

1x4

1x8

1x16

1x32

1X64

2x2

2X4

2x8

2x16

2x32

2X64

L

40

50

60

50

60

60

W

4

7

12

4

7

12

H

4

4

4

4

4

4
