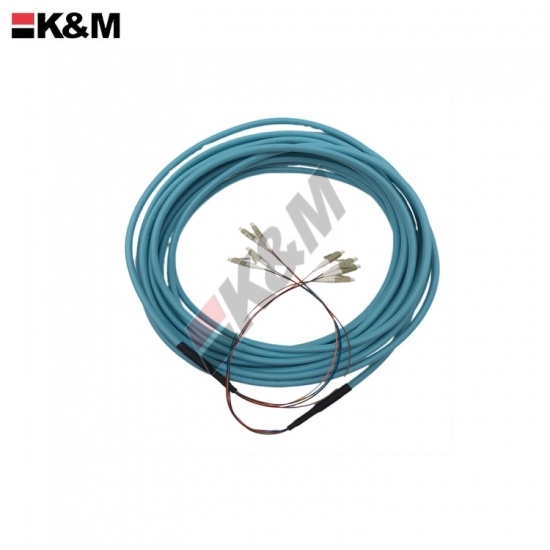

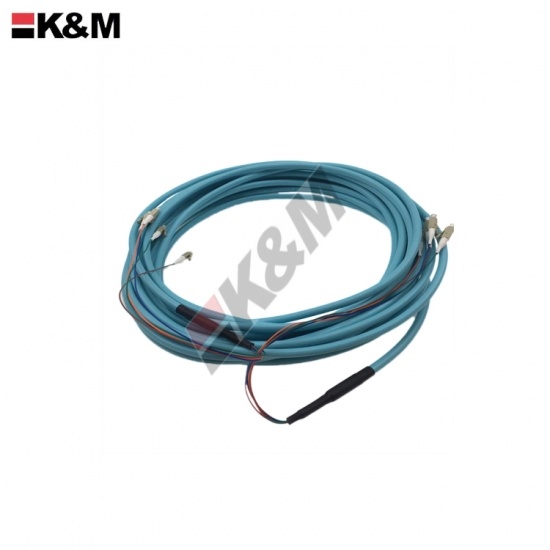

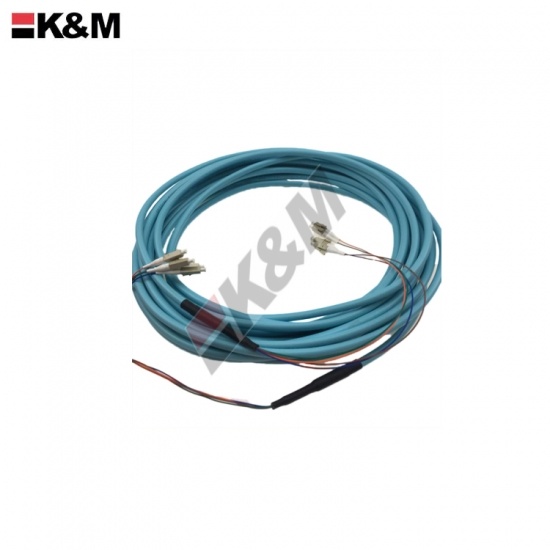

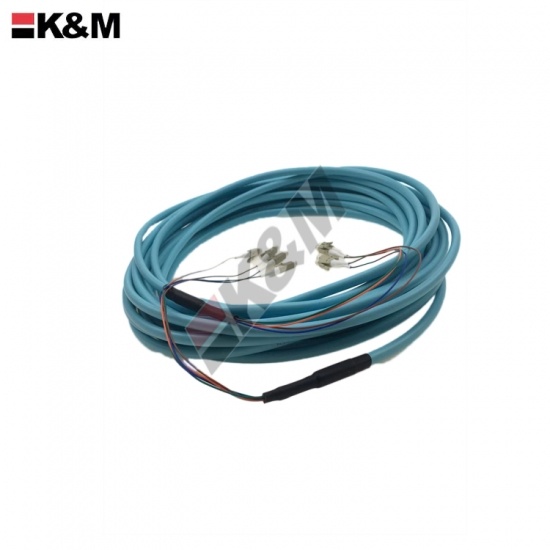

LC /PC to LC/PC om3 4 cores Fiber Optic Patch Cord 5M

Bend insensitive fiber optic patch cord is widely used in FTTH. The fiber is not sensitive to stress and bending. Singlemode bend insensitive fibers include G657A1, G657A2, G657B2, and G657B3.

Construction

A fiber optic patch cord is constructed from a core with a high refractive index, surrounded by a coating with a low refractive index, that is strengthened by aramid yarns and surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating.


LC /PC to LC/PC om3 4 cores Fiber Optic Patch Cord 5M K&M
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDM-MM-LC-LCU-4 CORE
  • Shipping Port:

    ShenZhen/HK
  • Payment:

    TT/WU
  • Price:

    $13/PCS
  • Market Price:

    $15
  • Price Range:

    1-500/13$
  • Color:

    As your requirement
  • Lead Time:

    7 days
Contact Now
  • Features & Benefits



DESCRIPTION:

Product Name:  LC PC to LC PC MM 50/125 Bend Insensitive Fiber Optic Patch Cord

Item Code:  LC/UPC-LC/UPC-MM-4

Package Size: 21 *21 * 2 ( cm )

Gross Weight/Package: 0.05( kg)

Customized: available length: 1-100 meters, price negotiatable

Size

Ordinary cables measure 125 µm in diameter (a strand of human hair is about 100 µm). The inner diameter measures 9 µm for single-mode cables, and 50 / 62.5 µm for multi-mode cables.

The development of "reduced bend radius" fiber in the mid-2000s, enabled a trend towards smaller cables. Each unit of diameter reduction in a round cable, produces a disproportionate corresponding reduction in the space the cable occupies.

APPLICATIONS:

       Optic communication system

       LAN

      CATV

      Test instrument

      Fiber optic sensor

Fiber optic patch cords are characterized by:

  1. Low insertion loss;
  2. High return loss;
  3. Good repeatability;
  4. Good interchange;
  5. Excellent environmental adaptability.

SPECIFICATIONS:

MODE

UNIT

SM

MM

Die

mm

0.9, 2.0, 3.0

Type


PC

UPC

APC

PC

UPC

Insertion loss

dB

≤0.20

≤0.30

≤0.20

≤0.40

PDL

dB

≥45

≥50

≥60

≥45

≥50

Operating temperature

degree

-40~+85

Storage temperature

degree

-40~+85

Operating wavelength

1310,1550 nm

Working times

≥1000
