fiber access terminal box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network; it is wall-mounted;
Product Orgin:
Shenzhen ChinaBrand:
K&MItem NO.:
KDMFTB-4SCA-SMShipping Port:
Shenzhen/hkPayment:
TT/WUPrice:
$9/PcsMarket Price:
$15Price Range:
500-1000/9$Color:
GrayLead Time:
two weeks
FIBER OPTIC TERMINATION BOX
Fiber Optic Termination Box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises
Features
Indoor/Outdoor type
Nonmetallic material
Compacted wall mount type
Simple decorative design
Easy installation
Easy maintenance
Easy access with front door
Support both mechanical and fusion splicing
Low cost solution with high protection for the terminated fibers
IP55 rated for outdoor applications
Applications
FTTX Systems
PON Networks
Fiber Optic Termination
CATV
Specification
Fiber capacity 4 fibers
Number of Ports: 4 x SC Simplex,
Operating temperature -20°C to + 50ºC
Storage temperature -20°C to + 60ºC
Connector attenuation ≤ 0.35 dB
Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB
Number of termination > 500 times
Dimensions
Description |
Dimension (H x W x D mm) |
FO FTB |
18.5*16.6*4.5 |

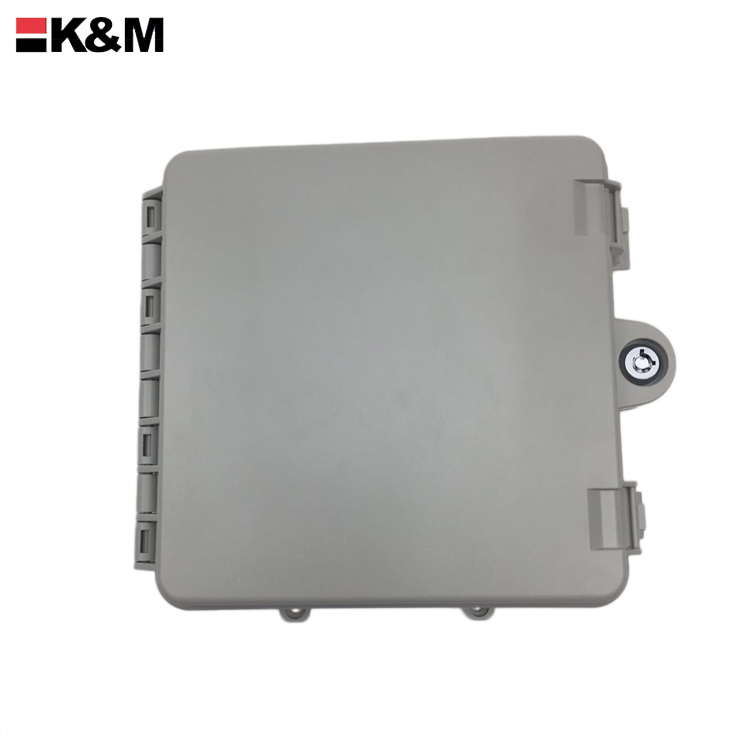

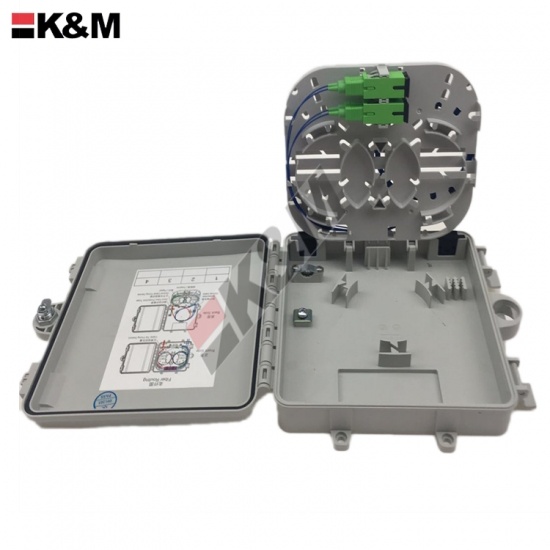

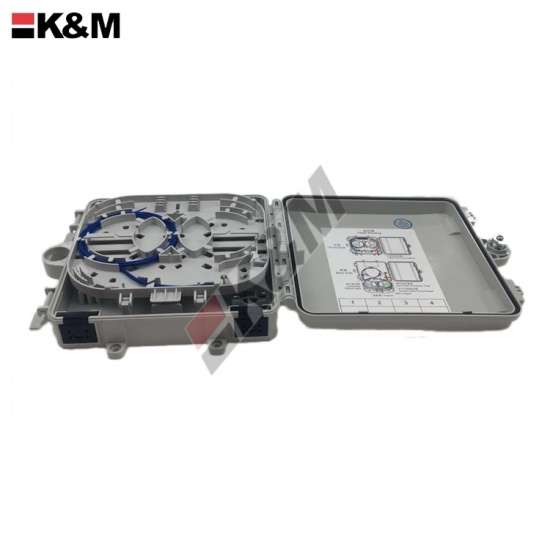

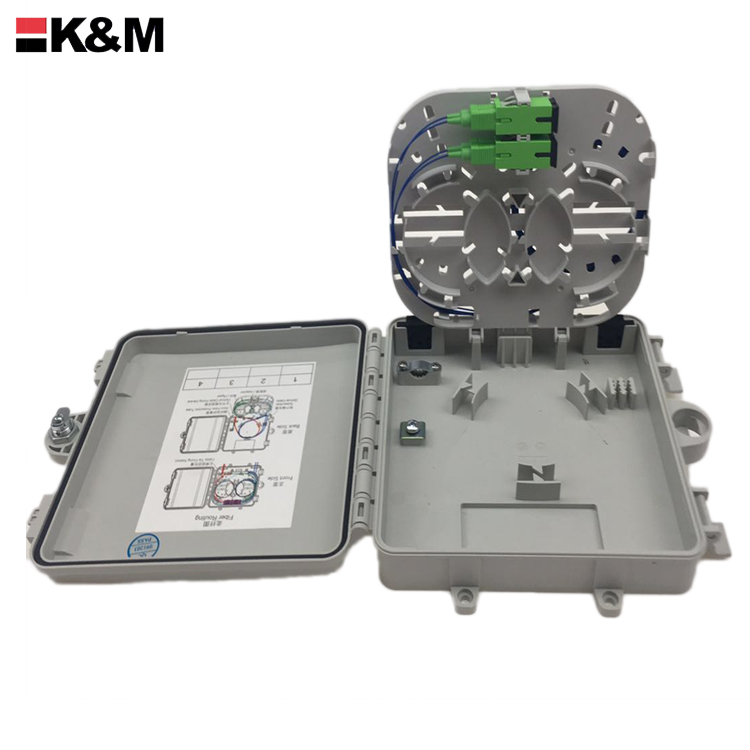

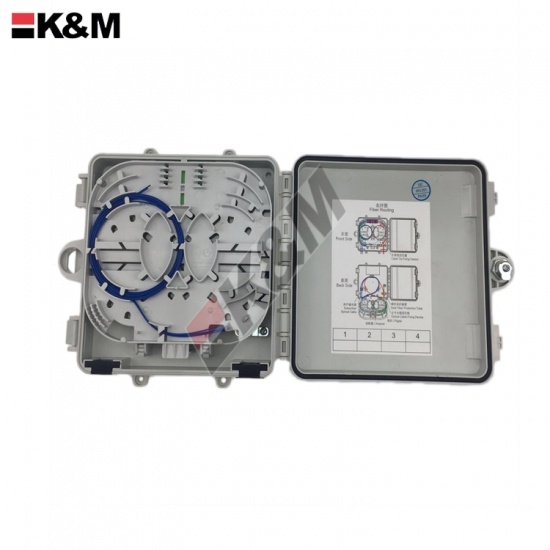

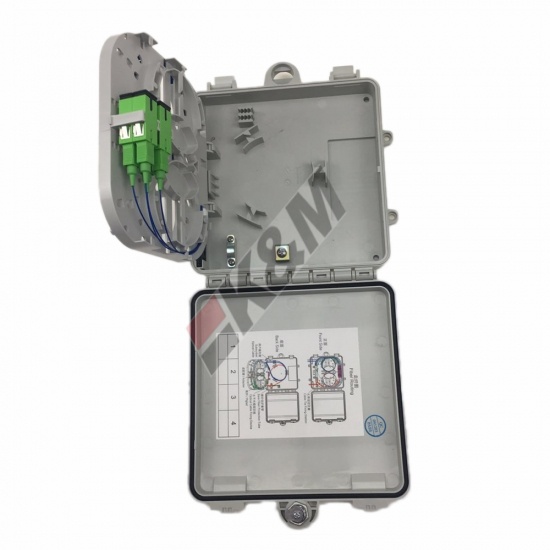

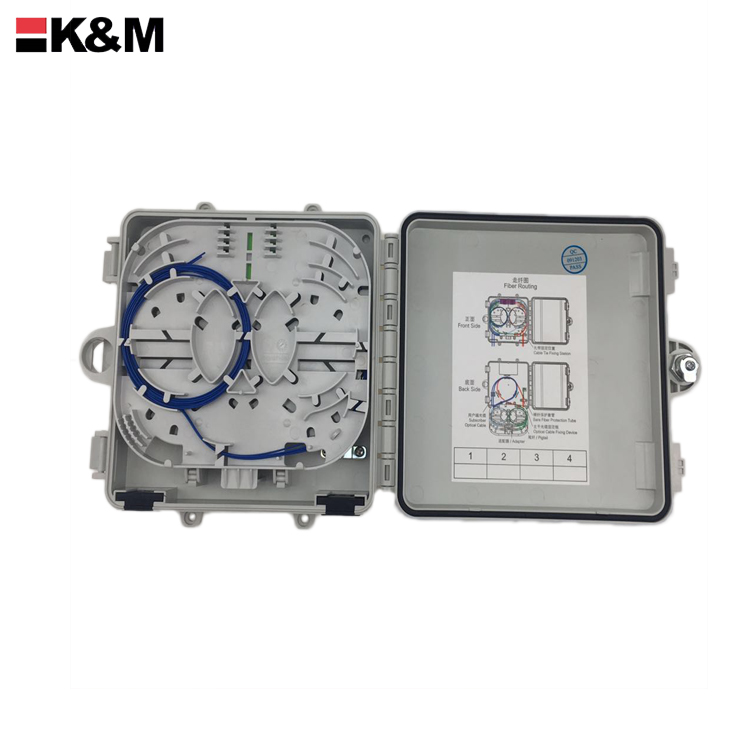

Photos
Ordering Information
Name
Code
Model
Dimension LxWxD (cm)
Capacity
(splicing/terminal)
Remark
Fibre termination box
210315410
KDMFTB-4SCA-SM
18.5X16.6X4.5
4/4
Outdoor
