FIBER DISTRIBUTION HUB – OUTDOOR (STREET CABINET) 576 Fiber

KDM218-T1 is a kind of single-sided FDH outdoor cabinet; it is mainly using for the fiber cable’s connection, distribution and management between each fiber distribution hubs, especially for the FTTH applications.

FIBER DISTRIBUTION HUB – OUTDOOR
  • FIBER DISTRIBUTION HUB – OUTDOOR

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMFDT-576

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU

  • Color:

    Gray

  • Lead Time:

    As per Qty
Contact Now
  • Features & Benefits

FIBER DISTRIBUTION HUB – OUTDOOR (STREET CABINET)

Outdoor optical fiber cabinet is a box with single operation and single door. it is mainly using for the fiber cable’s connection, distribution and management between each fiber distribution hubs, especially for the FTTH applications. This product provides safe、reliable and flexible optical fiber line management, applicable to all kinds of optical communication network, especially suitable for user access network projects


  Features

  •      Adopt standard module installation, each module can be independent operation, convenient operation, convenient for installation and maintenance.
  • The material is SMC.
  • Can add splitter module as per requirement.
  • Internal fiber routing systematically, meet more than 30 mm optical fiber bending radius.
  • Meet the non ribbon cable use requirement.
  • Have safe and reliable optical fiber storage and protection function, reliable cable fixed, stripping, grounding protection device.
  • Clearly marked, each core in the optical fiber and distribution has obvious signs

  • The 19 "internal installation way.

  • IP Grade: IP65

 Applications

  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution



Specification

Up to 6 splitters (extra splitters up on request)

Capacity 144/288 fibers

IP rating: IP65

Operating temperature -40°C to + 60ºC

Storage temperature -25°C to + 55ºC

Connector type: SC, LC, ST, FC

Connector attenuation ≤ 0.35 dB

Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB

Number of termination > 500 times

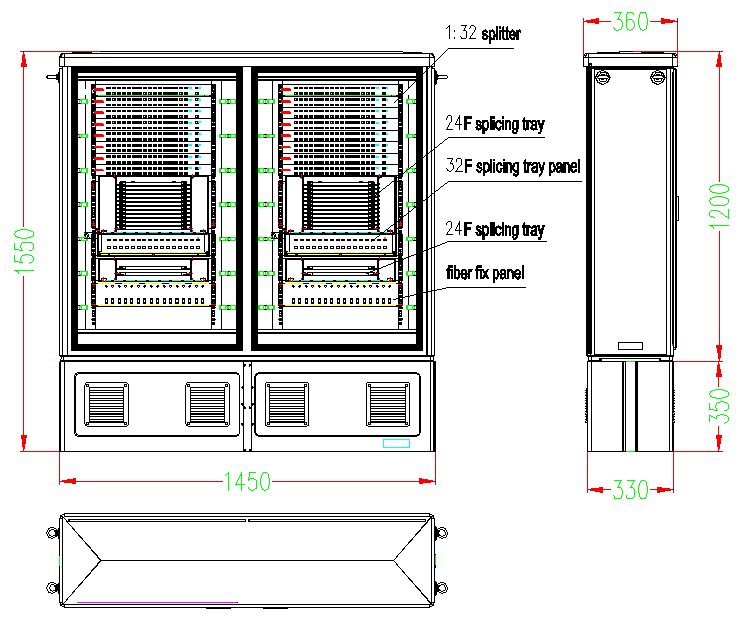

 Dimensions

Description

Dimension (H x W x D mm)

T1

1550 x   1450 x 330

 Order information

Name

Code

Mode

Specification

H×W×D（mm）

Capacity

Distribution/Splice

Mark

576 fiber FDT





1550×1450×330

576/576

Base height 350mm

Cabinet height with base 1200mm

Adaptor panel





2U×482×200

32F

LC

Splicing Tray



426310340

13.5×160×160

24F

Single fiber

Splitter Module





1U×482×185

1:32Or2:32 Splitter 1piece

Splitter available as per demand

Optional parts

1、protection tube for bared fiber  2、Splicing tube  3、 rolling protection tube 4、signal mode 12-cores pigtails ect.
