KDM Mini-Span All-Dielectric Self-Supporting (ADSS) cable is designed for outside plant
aerial and duct applications in local and campus network loop architectures. From poleto-build to town-town installations, the Mini-Span cabling system, which includes cables,
suspension, dead end and termination enclosures, offers a comprehensive transmission
circuit infrastructure with proven, high-reliability performance. See KDM’s Fiber Optic
Cable Hardware catalog for more information. As the ADSS cabling concept implies, a
separate messenger support wire hanging system is not required, greatly reducing
installation time and improving upfront and maintenance labor costs. Mini-Span includes
fiber counts up to 144 optical fibers and any type or combination of single-mode and
laser-optimized multimode fibers with the cable. Pole-to-Pole span lengths range from
50 feet to over 1000 feet.
Product Orgin:
Shenzhen,ChinaBrand:
K&MItem NO.:
KDM-ADSS-CABLEShipping Port:
ShenZhen/HKPayment:
T/TPrice:
$28/100MMarket Price:
$38Price Range:
500-1000/28$Color:
As your requirementLead Time:

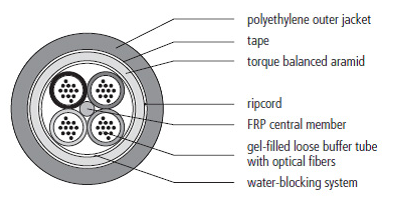

2 Weeks after remittanceCable components:
Features:
Applications Network Connectivity for:
Temperature Specifications:
TEMPERATURE RANGE | |
INSTALLATION | -30ºC to +70ºC |
OPERATING | -40ºC to +70ºC |
STORAGE | -50ºC to +70ºC |
Installation Information:
cable |
Nesc Spans(@1.5% Initial Sal)FEET (METERS) |
Max Sagging Tension | Max. Loading Operating Tension | Min. Bending Radius(Dynamic) | Min.Bending Radius(Stattc) | ||||||
Light | Medium | Heavy | LBS | N | LBS | N | Inches | CM | Inches | CM | |
Mini-Span 323 | 500(152) | 300(91) | 175(53) | 147 | 654 | 374 | 1668 | 7 | 17 | 3.5 | 8.5 |
Mini-Span 383 | 450(137) | 300(91) | 180(55) | 183 | 814 | 402 | 1785 | 8 | 20 | 4 | 10 |
cable |
Nesc Spans(@1% Initial Sal)FEET (METERS) |
Max Sagging Tension | Max. Loading Operating Tension | Min. Bending Radius(Dynamic) | Min.Bending Radius(Stattc) | ||||||
Light | Medium | Heavy | LBS | N | LBS | N | Inches | CM | Inches | CM | |
Mini-Span 424 | 600(183) | 440(134) | 275(84) | 424 | 1886 | 707 | 3145 | 9 | 22 | 4 | 11 |
Mini-Span 535 | 1050(320) | 850(259) | 575(175) | 1306 | 5809 | 1783 | 7936 | 13 | 27 | 5 | 14 |
Mini-Span 693 | 750(229) | 600(183) | 500(152) | 1411 | 6278 | 1856 | 8260 | 14 | 36 | 7 | 18 |
Optical Information:
cable | Maximum Attenuation (db/km) | Bandeidth (MHz•km) | ||||
Single-mode (1310nm/1550nm) |
Multimode *62.5/125 µm (850 nm/1300 nm) |
Multimode 50/125 µm (850 nm/1300 nm) |
Single-mode (1310nm/1550nm) |
Multimode *62.5/125 µm (850 nm/1300 nm) |
Multimode 50/125 µm (850 nm/1300 nm) |
|
Mini-Span 323 | 0.40/0.30 | 3.5/1.2 | 3.5/1.2 | n/a | 200/600 | 500/500 |
Mini-Span 383 | 0.35/0.25 | 3.5/1.2 | 2.9/0.9 | |||
Mini-Span 424 | ||||||
Mini-Span 535 | ||||||
Mini-Span 693 |
* All 62.5/125m multimode ADSS cable transmission performances meet or exceed FDDI requirements. Premium transmission performance fibers available on request.
Mechanical Date:
Cable | fiber count | Nominal Diameter | Nominal Weight | Maximum Lengths* | |||||
Single-Mode | Multimode | ||||||||
Inches | mm | LBS/1000' | KG/KM | feet | meters | feet | meters | ||
Mini-Span 323 | 2-24 | 0.323 | 8.2 | 35 | 53 | 32800 | 10000 | 26250 | 8000 |
Mini-Span 383 | 2-48 | 0.383 | 9.7 | 49 | 72 | 32800 | 10000 | 26250 | 8000 |
Mini-Span 424 | 2-60 | 0.424 | 10.8 | 57 | 84 | 32800 | 10000 | 26250 | 8000 |
Mini-Span 535 | 2-96 | 0.535 | 13.6 | 100 | 148 | 32800 | 10000 | 26250 | 8000 |
Mini-Span 693 | 2-144 | 0.693 | 17.6 | 151 | 224 | 23000 | 7000 | 23000 | 7000 |
