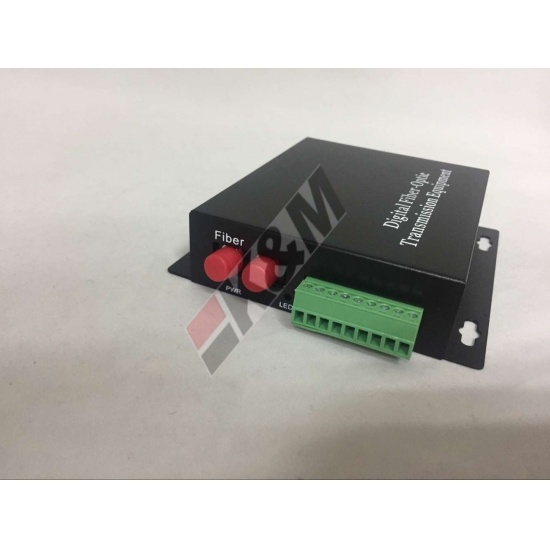

The fiber multiplexers simultaneously transmit 1-72 channels of digitally encoded broadcast quality video over one multimode or single mode optical fiber. The converters are directly compatible with NTSC, PAL, or SECAM CCTV camera systems. Plug and Play design ensures ease of installation and operation. Devices are available for either standalone or rack-mount installation.
Product Orgin:
Shenzhen ChinaBrand:
K&MItem NO.:
KDMMC-FC-DX-1F-4 RS2Shipping Port:
shenzhen/hkPayment:
TT/WUPrice:
$90/PcsMarket Price:
$100Price Range:
10-100/85$Color:
BlackLead Time:
3 days
Video Optical Converter-Standard Definition
-
Overview
The fiber multiplexers simultaneously transmit 1-72 channels of digitally encoded broadcast quality video over one multimode or single mode optical fiber. The converters are directly compatible with NTSC, PAL, or SECAM CCTV camera systems. Plug and Play design ensures ease of installation and operation. Devices are available for either standalone or rack-mount installation.
- Features
1. Can be installed into centralized management 19” rack.
2. Plug and play.
3. Support FC(default),ST or SC optical interface.
4. EMI,RFI and return circuit in common ground.
5. 8-Bit Digital encoded and non-compression video transmission.
6. Simultaneous Signal over one fiber: Video, Data, Audio, Contact Closure, Telephone and Ethernet Transmission.
7. RS-232, RS-422, RS-485 Data Controls.
8. Compatibility with NTSC, PAL, SECAM.
- Technical parameter
|
Video (1~72ch, forward/reverse/BIDI) |
|||
|
Video input/output impedance |
75ohm(unbalance) |
||
|
Video input/output voltage |
1.0Vp-p |
||
|
Video voltage range |
0.6~ 2.0Vp-p |
||
|
Differential gain (10%-90% APL) |
<1% |
||
|
S/N ratio |
>60dB(8Bit) |
||
|
Physical Interface |
BNC |
||
|
Data( forward/reverse/BIDI) |
|||
|
Physical Interface |
RS232/RS485/RS422, Manchester, Bi-phase,etc |
||
|
Communication rate |
0～300kbps |
||
|
Bit error rate |
10-9 |
||
|
Physical Interface |
Phoenix terminal blocks |
||
|
Audio( forward/reverse/BIDI) |
|||
|
Audio input/output impedance |
600 Ohm(unbalance) |
||
|
Audio input/output voltage |
2.0Vp-p(max) |
||
|
Frequence response |
20Hz~20kHz |
||
|
Audio digital bit wide |
25bit DVD |
||
|
SNR |
≥95dB |
||
|
Physical Interface |
Phoenix terminal blocks |
||
|
Contact Closure( forward/reverse/BIDI) |
|||
|
Signal input |
Any active or passive alarm, switch quantity input, supports TTL, RS232/422/485 or passive switch, button |
||
|
Signal output |
Any active or passive alarm, switching output, TTL, RS 232/485 or relay contacts output |
||
|
Physical Interface |
Standard Phoenix terminals |
||
|
Telephone( forward/reverse/BIDI) |
|||
|
Width |
8kHz |
||
|
Distortion |
˂ 1% |
||
|
Signal to noise ratio |
˂ 95dB |
||
|
Operation mode |
Point to point hot line Program-controlled exchange mode |
||
|
Physical Interface |
RJ11 |
||
|
Ethernet |
|||
|
Transmission Rate |
100Mbps |
||
|
Operation mode |
Half/full duplex |
||
|
Physical Interface |
RJ45 |
||
|
Optical |
|||
|
Wavelength |
1310/1550nm/CWDM |
||
|
Optical fiber type |
50/62.5/125um multimode,9/125um single-mode |
||
|
Optical output power |
-8～3dBm |
||
|
Receiver sensitivity |
-30dBm |
||
|
Optical interface |
FC(default), ST, SC |
||
|
General |
|||
|
Working temperature |
-35℃~70℃ |
||
|
Operator humidity |
0～95% RH non-condensing |
||
|
Dimensions |
1V,2V, Mini 4V Series: 94*91*25mm 4V Series: 173*173*30mm Mini 8V Series: 184*107*25mm 8V Series: 173*173*50mm Mini 16 Series: 439*176*44mm 16V Series:176*485*45mm |
||
- LED Indication
|
LED |
FUNCTION |
STATUS |
OPERATION |
|
PWR |
POWER |
ON |
Power on |
|
OFF |
Power off |
||
|
V1-V... |
Video signal |
ON |
Connected |
|
OFF |
Not link |
||
|
|
Optical Signal |
ON |
Connected |
|
FLASH |
Not link |
||
|
|
Data signal |
ON |
Connected |
|
FLASH |
Data flow |
||
|
|
Ethernet |
ON |
Top left LED: normal |
|
ON |
Top right LED: connected |
||
|
FLASH |
Top left LED: Data flow |
- Connection
Single Channel Video and Data Diagram
Multi-function Type Diagram
Cable Routing chart
