1Fiber and 4RJ45, 10/100Mbps, dual fiber, single mode, 25km Fiber Switch

Fiber optic outlet is a rugged, low cost, low profile interconnection unit suitable for all Fiber Optic and FTTx application

Fiber Switch
  • Fiber Switch

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMFS-Dual-SM-4RJ45

  • Shipping Port:

    shenzhen/hk

  • Payment:

    TT/WU

  • Price:

    $13/Pcs

  • Market Price:

    $18

  • Price Range:

    10-100/13$

  • Color:

    Black

  • Lead Time:

    5 days
Contact Now
  • Features & Benefits

Fiber Switch

Fiber optic outlet is a rugged, low cost, low profile interconnection unit suitable for all Fiber Optic and FTTx application.

The fiber switches are unmanageable, when convert transmission, all ports share the same data. They can extend the network transmission from100mto120kmand can realize the interconnection between motherboard server, Repeaters, hubs, switches, and terminal. Plug and play design makes easy installation, no on-site adjustment. Operation status can be monitored through a set of Diagnostic LED.

 Features

 * In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z, 1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.

 * Hot Plug-gable & Wall-Mountable

 * Stable performance more than 50thousand hours with fault-free.

 * Unique IC solution applied

 * Supports 10/100Mbps and 10/100/1000Mfull/half duplex, easy upgrades

 * Auto MDI/MDI-X.

 * Auto Negotiation.

 * Support flow control.

 * Stable performance more than 50 thousands hours with fault-free.

 * In conformity with safety code of FCC, CE and RoHS.

 Specifications

Optical Interface

Connector

1x9 SC/FC/ST

Data Rate

100Mbps, 1000Mbps

Duplex Mode

Full duplex

Fiber

MM 50/125um,62.5/125um

SM 9/125um

Distance

100Mbps:

MM2km,SM 25/40/60/80/100/120km

1000Mbps:

MM550m/2km,SM 20/40/60/80km

Wavelength

MM 850nm,1310nm

SM 1310nm,1550nm

WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side)

WDM Tx1490/Rx1550nm(A side),Tx1550/Rx1490nm(B side)

UTP Interface

Connector

RJ45

Data Rate

10/100Mbps, 10/100/1000Mbps

Duplex Mode

Half/full duplex

Cable

Cat5,Cat6

Power Input

Adapter Type

DC5V

Power Built-in Type

AC100~240V

Power Consumption

＜3W

Temperature

0~50℃Operating; -40~70℃Storage

Humidity

5~95%(no condensing)

MTBF

≥10.0000h

Certification

CE,FCC,RoHS

 Application

  * Extend your Ethernet connection up to 0~120kmaway using fiber optics

 * Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones

 * Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)

 * Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network

 System Design

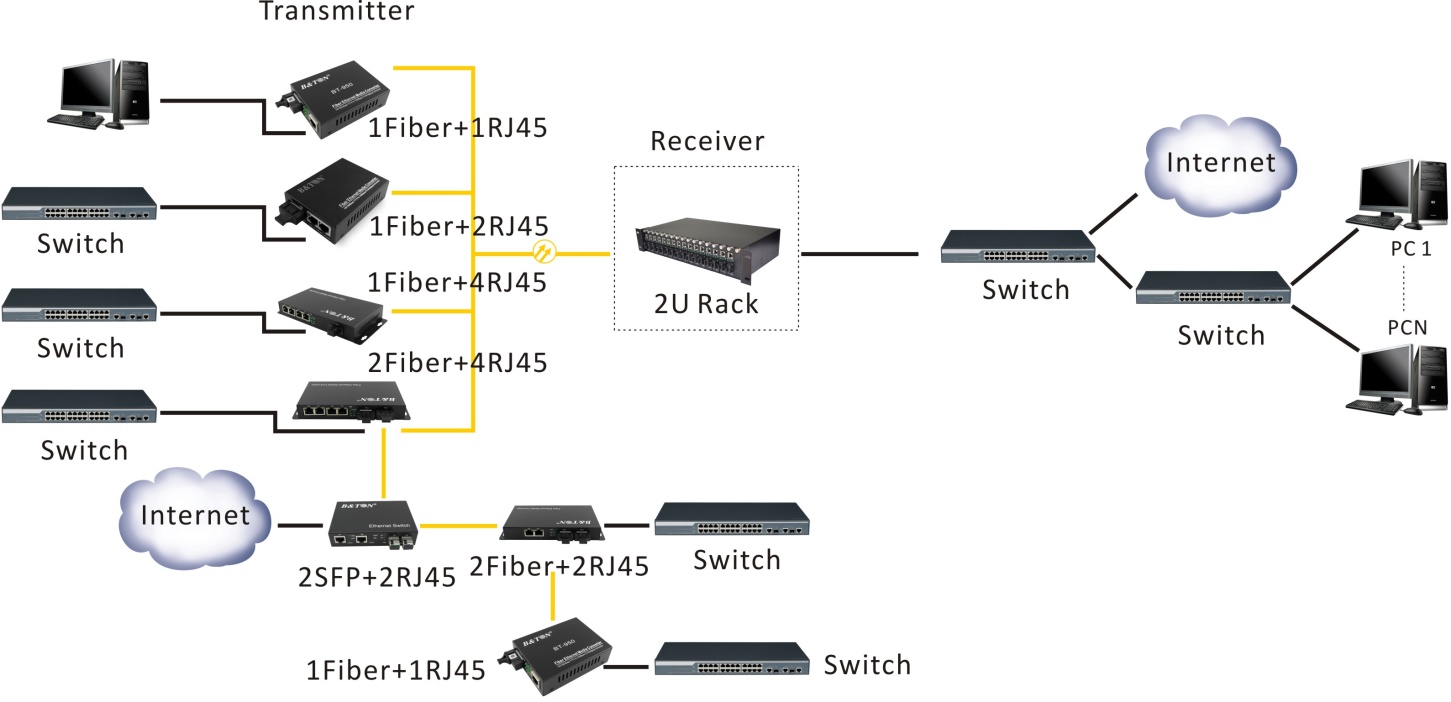

1、For Networking

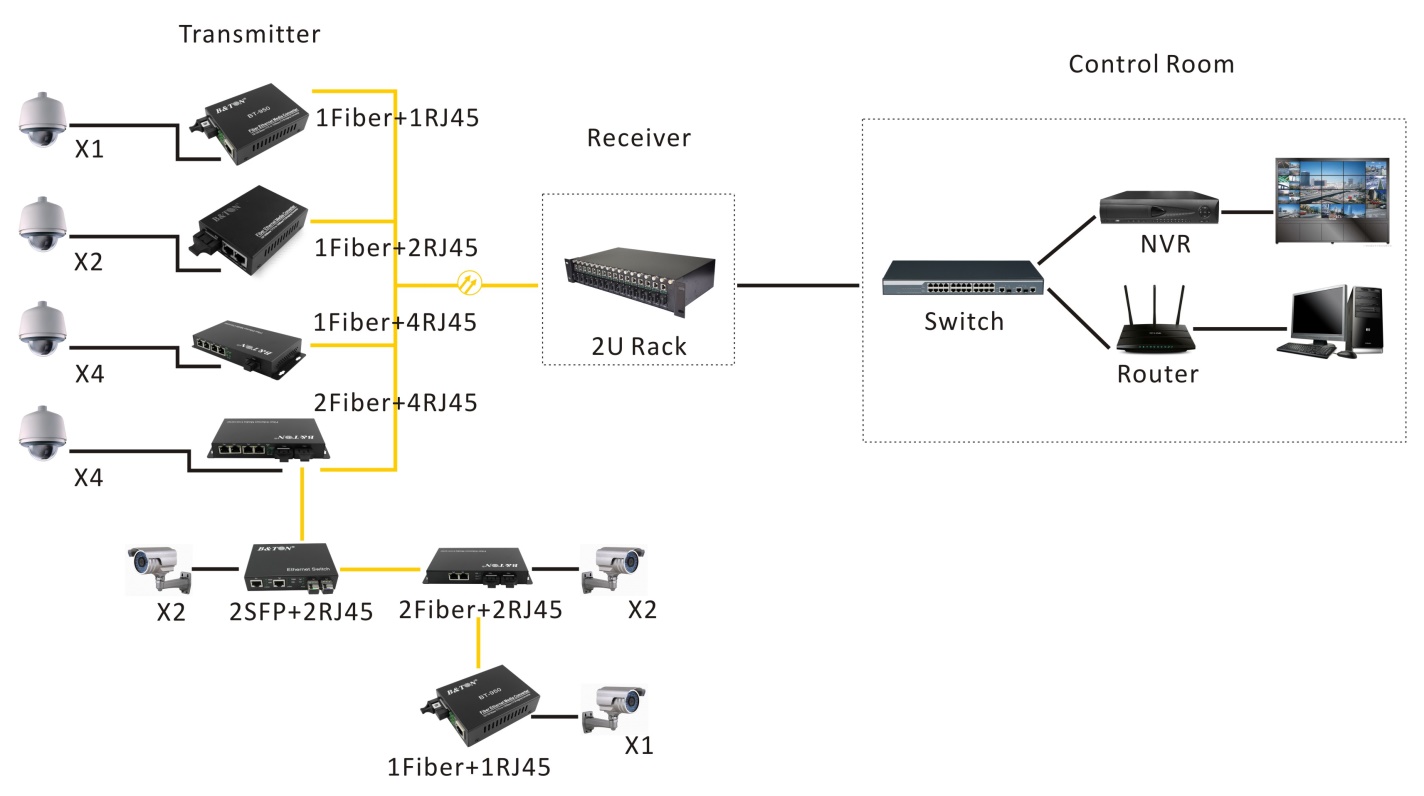

2、For CCTV Surveillance Security

Order Information

Part Number

Description(optional distance is20km)

BT-912SM-20

10/100MDual Fiber, 1Fiber and 2RJ45 ports

BT-912SM-20A/B

10/100MSingle Fiber, 1Fiber and 2RJ45 ports

BT-914SM-20

10/100MDual Fiber, 1Fiber and 4RJ45 ports

BT-914SM-20A/B

10/100MSingle Fiber, 1Fiber and 4RJ45 ports

BT-923SM-20

10/100MDual Fiber, 2Fiber and 3RJ45 ports

BT-923SM-20A/B

10/100MSingle Fiber, 2Fiber and 3RJ45 ports

BT-982SM-20

10/100MDual Fiber, 8Fiber and 2RJ45 ports

BT-982SM-20A/B

10/100MSingle Fiber, 8Fiber and 2RJ45 ports

BT-912GS-20

10/100/1000MDual Fiber, 1Fiber and 2RJ45 ports

BT-912GS-20A/B

10/100/1000MSingle Fiber, 1Fiber and 2RJ45 ports

BT-914GS-20

10/100/1000MDual Fiber, 1Fiber and 4RJ45 ports

BT-914GS-20A/B

10/100/1000MSingle Fiber, 1Fiber and 4RJ45 ports

BT-918GS-20

10/100/1000MDual Fiber, 1Fiber and 8RJ45 ports

BT-918GS-20A/B

10/100/1000MSingle Fiber, 1Fiber and 8RJ45 ports

BT-922GS-20

10/100/1000MDual Fiber, 2Fiber and 2RJ45 ports

BT-922GS-20A/B

10/100/1000MSingle Fiber, 2Fiber and 2RJ45 ports

BT-924GS-20

10/100/1000MDual Fiber, 2Fiber and 4RJ45 ports

BT-924GS-20A/B

10/100/1000MSingle Fiber, 2Fiber and 4RJ45 ports

BT-928GS-20

10/100/1000MDual Fiber, 2Fiber and 8RJ45 ports

BT-928GS-20A/B

10/100/1000MSingle Fiber, 2Fiber and 8RJ45 ports
