Product Orgin:
Shenzhen ChinaBrand:
K&MItem NO.:
KDMFTB-12SCSX/12LCDXShipping Port:
Shenzhen/hkPayment:
TT/WUPrice:
$13/PcsMarket Price:
$16Price Range:
500-1000/13$Color:
GrayLead Time:
two weeks

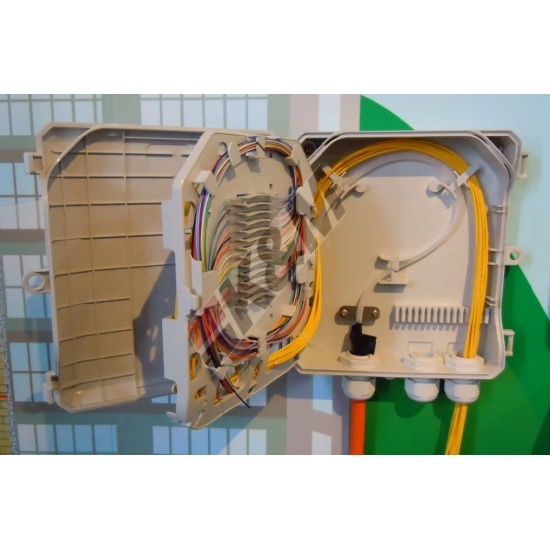

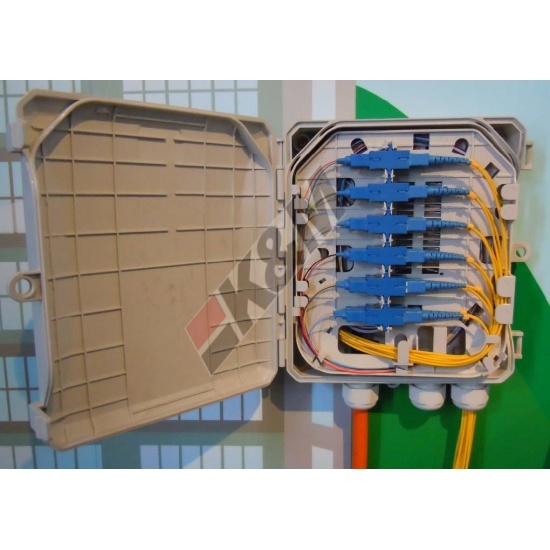

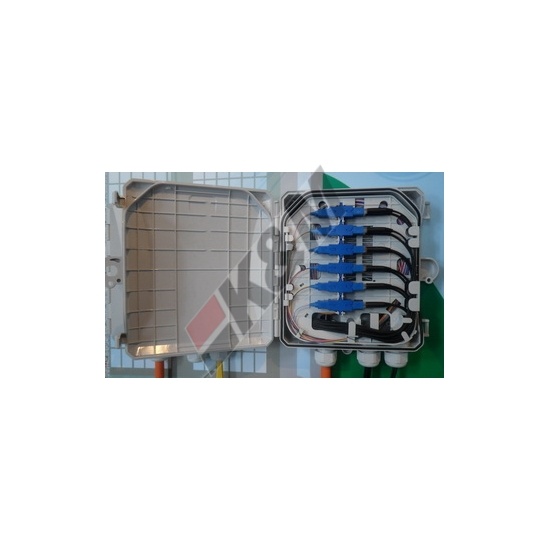

FIBER OPTIC TERMINATION BOX
Fiber optic termination box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises
Features
Indoor/Outdoor type
Nonmetallic material
Compacted wall mount type
Simple decorative design
Easy installation
Easy maintenance
Easy access with front door
Support both mechanical and fusion splicing
Low cost solution with high protection for the terminated fibers
IP55 rated for outdoor applications
Applications
FTTX Systems
PON Networks
Fiber Optic Termination
CATV
Specification
Fiber capacity 8/12 /24fibers
Number of Ports: 12 x SC Simplex, or, 12x LC Duplex,
Operating temperature -20°C to + 50ºC
Storage temperature -20°C to + 60ºC
Connector attenuation ≤ 0.35 dB
Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB
Number of termination > 500 times
Dimensions
|
Description |
Dimension (H x W x D mm) |
|
FO FTB |
214*195*50 |
Ordering Information
|
FDH with PLC Splitter |
|
|
Description |
Part No. |
|
Fiber Optic Termination box – FTB (SC connector) |
KMFTBO12SCxzzz |
|
Fiber Optic Termination box – FTB (LC connector) |
KMFTBO12LCxzzz |
x: Connector surface type (U=UPC, A=APC)
zzz: Coupler/Connector type (OM1, OM2, OM3, OS1, OS2)
Ordering Sample: KMFTBO2SCAOS2 (Fiber Termination Box - FTB, 12 ports, SC coupler,Or 12 LC DX)
Need a quote? Have a question ? Ask us!
K&M's Fiber Termination Box(FTB) Compliance with YD/T 778, YD/T 1636－2007, and YD/T893-1997
