Fiber optic termination box SC SX SM 8 Ports

Fiber optic termination box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises

SC/LC Fiber optic termination box 8Ports
  • SC/LC Fiber optic termination box 8Ports
  • SC/LC Fiber optic termination box 8Ports
  • SC/LC Fiber optic termination box 8Ports
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDMFTB-12SCSX/12LCDX
  • Shipping Port:

    Shenzhen/hk
  • Payment:

    TT/WU
  • Price:

    $11/Pcs
  • Market Price:

    $16
  • Price Range:

    500-1000/11$
  • Color:

    Gray
  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

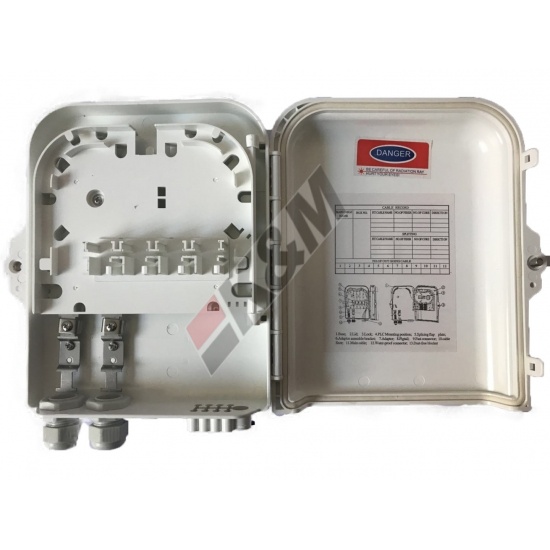

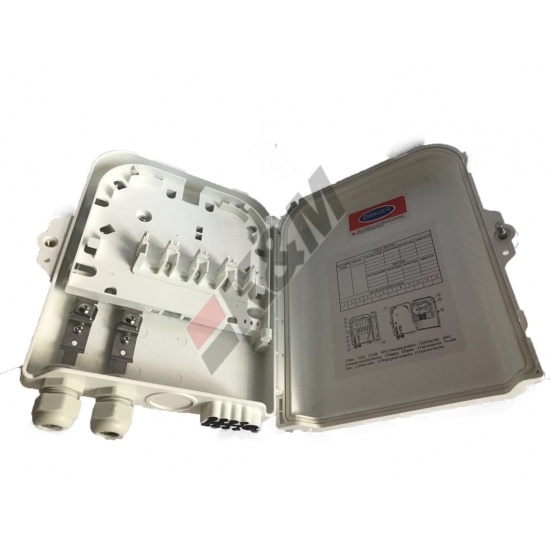

FIBER OPTIC TERMINATION BOX

 Fiber optic termination box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises

 Features

  • Indoor/Outdoor type

  • Nonmetallic material

  • Compacted wall mount type

  • Simple decorative design

  • Easy installation

  • Easy maintenance

  • Easy access with front door

  • Support both mechanical and fusion splicing

  • Low cost solution with high protection for the terminated fibers

  • IP55 rated for outdoor applications

  Applications

  • FTTX Systems

  • PON Networks

  • Fiber Optic Termination

  • CATV

 Specification


Fiber capacity 8 fibers


Number of Ports: 8x SC Simplex, or, 8xLC Duplex,


Operating temperature -20°C to + 50ºC


Storage temperature -20°C to + 60ºC


Connector attenuation ≤ 0.35 dB


Return Loss: APC ≥ 60 dB, UPC ≥ 50 dB, PC ≥ 40 dB


Number of termination > 500 times

 Dimensions


Description

Dimension (H x W x D mm)

FO FTB

240*195*66





Ordering Information

FDH with PLC Splitter

Description

Part No.

Fiber Optic Termination box FTB (SC connector)

KMFTBO12SCxzzz

Fiber Optic Termination box FTB (LC connector)

KMFTBO12LCxzzz


x: Connector surface type (U=UPC, A=APC)


zzz: Coupler/Connector type (OM1, OM2, OM3, OS1, OS2)


 Ordering Sample: KMFTBO2SCAOS2 (Fiber Termination Box - FTB, 8 ports, SC coupler,Or 4 SC DX
