144 Cores Dome closure

1）144 fiber Dome style fiber splices closure

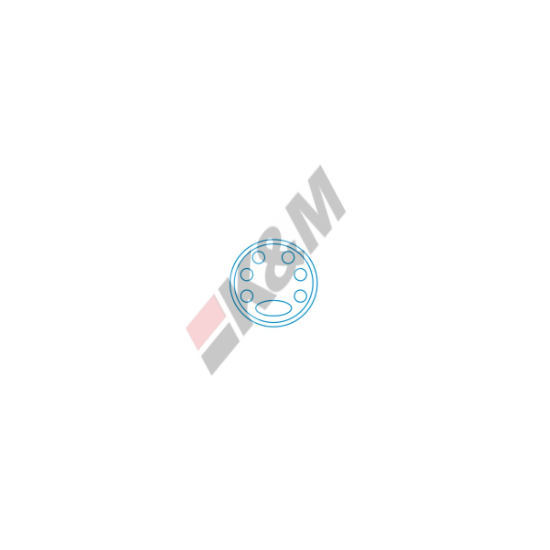

2）7 cable ports in total,6 Φ20mm round cable ports, and 1 oval port which can let in and out 1pc Φ42mm cable or 2pcs Φ20mm cables, as well as for few small size cables at the same time.

3）IP68

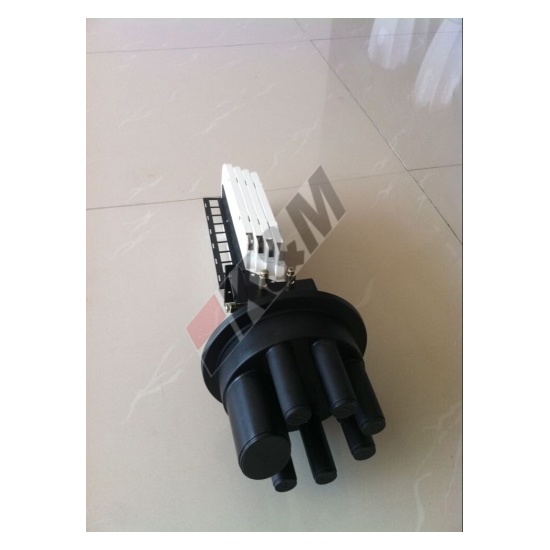

High quality 144 fibers fiber optic splicing closure
  • High quality 144 fibers fiber optic splicing closure
  • High quality 144 fibers fiber optic splicing closure
  • High quality 144 fibers fiber optic splicing closure

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDM-FDC-144F-7holes

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU

  • Price:

    $30/PCS

  • Market Price:

    $40

  • Price Range:

    100-500/30$

  • Color:

    Black

  • Lead Time:

    7 days
Contact Now
  • Features & Benefits

GJS-SPM003 Dome style fiber splices closure


The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network. Over FTTX network fiber splice closure is used for end A/B access of optical cable ，splicing of low-capacity single-fiber，lead-out and fixation of multi-fiber access cables.


Technical specifications

Compliance with YD 814.1-2004 and YD 814.2-2005


Physical performance

  1. Complete bend radius control， the bend radius > 30mm
  2.  Flammability: GB5169.7 Experiment A
  3.  Ambient condition
  4.  Operating temperature: -40℃~+65 ℃
  5.  Relative humidity: ≦ 85% （+30℃）
  6.  Atmospheric pressure： 70~106kP
  7.  Storage temperature: -25℃~+60 ℃
  8.  Voltage Strength: under 15KV direct current, without breakdown or flashover phenomenon.
  9.  Insulation Resistance: ≥2×104MΩ
  10.  Tensile Force: ≥800N
  11.  Leakproofness: inflate the closure, making internal pressure to 100Kpa，then put the closure into the water over 15min, without any bubbles or pressure drop happened.
  12.  Impact Strength: can bear 16N.m.after 3 impact times; there is no crack on the body.


Features:

  1. Installation modes: overhead-mounted，burry-mounted，wall-mounted，pole-mounted，manhole-mounted;
  2.  Aging-resistant plastic ，and corrosion-resistant metalworking subassemblies
  3.  The body adopts modified ABS, which is high strength and corrosion resistance, has longer lifetime and excellent sealing performance.
  4.  It has 7 cable ports in total,6 Φ20mm round cable ports, and 1 oval port which can let in and out 1pc Φ42mm cable or 2pcs Φ20mm cables, as well as for few small size cables at the same time.
  5.  Fast and easy sealing of closure body and optical cable openings
  6.  Perfect optical route design to ensure bend radius of fibers ，large fiber storage area
  7.  Optical splice tray ，applicable to ribbon and bundle cable， random configuration under the maximum capacity
  8.  Large storage space for splice tray with greater than 90°overturn angel，easy for maintenance and expansion
  9.  Configurable with grounding device and valve
  10.  Service life not less than 20 years
  11.  IP degree：IP68
  12.  Size DxH: Ф220mmx450mm
  13.  Weight: 2.1Kg
  14.  Oval port diameter: Φ42mm; round port diameter: Φ20mm
  15.  Max capacity: 240cores, 10pcs 24c splice tray.
  16.  Assembled with valve core and grounding device.

Packing List:

Dome closure: 1set

Hanging set: 1set (optional: pole mounting, wall mounting or aerial)

Heat shrinkable tube: 2~144pcs (according to the real capacity of the closure)

Hose clamp13~19: 8pcs

Shrinkable tube65/19-150: 1pc

Shrinkable tube28/6-150：6pc

Manual: 1pc

Certificate of Approval: 1pc


Ordering information
