OPGW/ADSS Dome style fiber splices closure 24-144Core

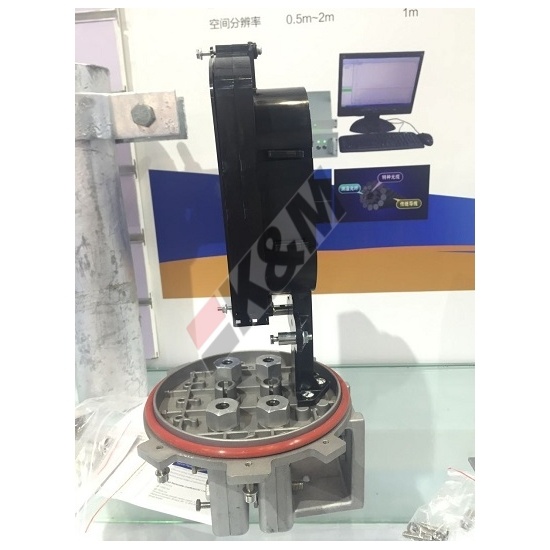

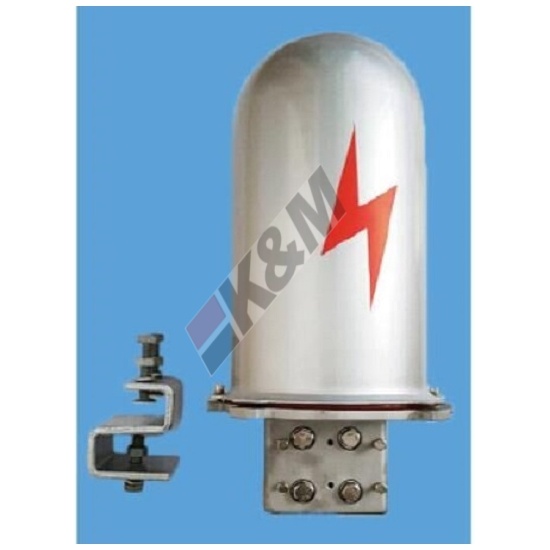

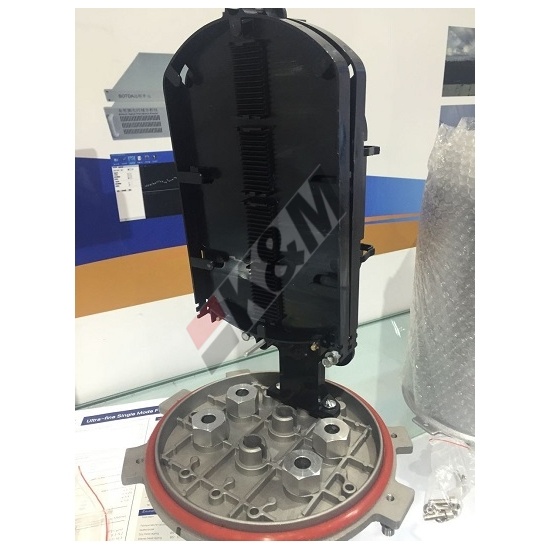

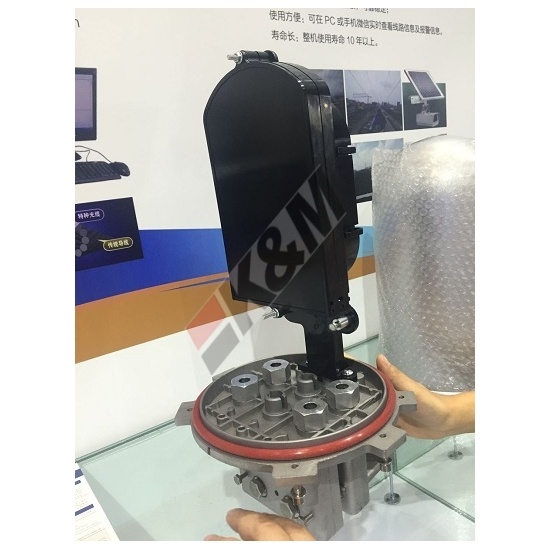

OPGW Dome closure
  • OPGW Dome closure
  • OPGW Dome closure
  • OPGW Dome closure
  • OPGW Dome closure
  • OPGW Dome closure
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDM-FDC-144-4holes
  • Shipping Port:

    Shenzhen/hk
  • Payment:

    TT/WU
  • Price:

    $49/Pcs
  • Market Price:

    $60
  • Price Range:

    100-500/49$
  • Color:

    Black
  • Lead Time:

    7-14 days
Contact Now
  • Features & Benefits

OPGW Dome style fiber splices closure

 The fiber splice closure is applicable to termination of branching downstream optical cable in PON optical communication network. Over FTTX network fiber splice closure is used for end A/B access of optical cable ,splicing of low-capacity single-fiber,lead-out and fixation of multi-fiber access cables。

 In according to environmental conditions, optic fiber closure is divided into closure for pole and closure for tower

Compare to Plastic closure, metal closure has many obvious advantages as mechanical strength, leak tightness and corrosion resistance.it is usually for OPGW cable.

 Technical specifications

Complete bend radius control, the bend radius > =43mm

Length of fiber remaining plate to remaining in the tray >=1.5m

Ambient condition

Operating temperature: -40℃~+80 ℃    lateral Pressure >=2000N

Relative humidity: ≦ 85% (+30℃)

Atmospheric pressure: 70~106kP

Storage temperature:-25℃~+60 ℃

 Features:

l  Installation modes: pole-mounted,tower-mounted

l  Aluminum Alloy Shell Material

l  Aging-resistant plastic ,and corrosion-resistant metalworking subassemblies

l  Fast and easy sealing of closure body and optical cable openings

l  Perfect optical route design to ensure bend radius of fibers ,large fiber storage area

l  Service life not less than 20 years

l  IP degree:IP67

 Installation Sketch of Metallic closure:



Ordering information

Product Name

Ordering code

Model

Dimension

Splice capacity

(fiber)

Cable Inlet

Remarks

Bundle/Ribbon

OPGW splice closure



Body

080103803

OPGWM001

Ф200x480mm

96

2-inlet

2-outlet (6 ports Max)

Inlet cable diameter:

Ф22

4 RJ-J201 (single)/ 4 RJ-J202 (single)

Splice stry

080103042

RJ-J202

\

24

\

\
