MPO Patch Panel

MPO Patch Panel K&M
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDMMPOPanel
  • Shipping Port:

    Shenzhen/HK
  • Payment:

    TT/WU
  • Color:

    Aqua
  • Lead Time:

    7 days
Contact Now
  • Features & Benefits


MPO Fiber Optic Assembly Cable

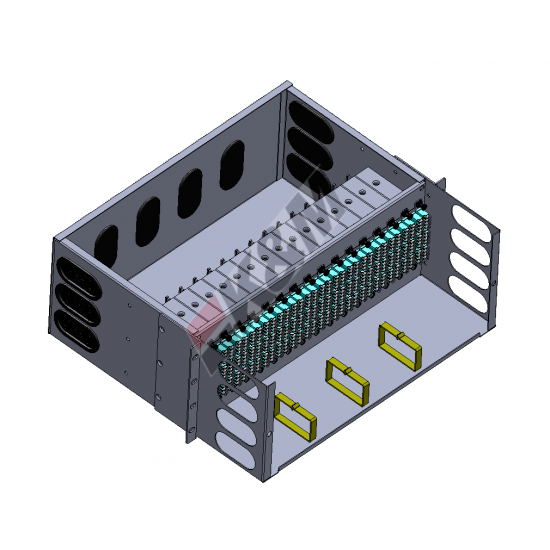

384 f.o 4U 19’’ Pre-termianted MTP OM3 Patch Panel (Loaded or Unloaded)

■ Application

• Data centre, Pre-terminated installations or telecommunication networks

 ■ General Features

• Dimension H*W*D:4U*482(Include side bracket)*400mm.

• Material: Cold-roll Steel

• Power coated, Black RAL9005

• Suitable to 19'' installation

• Easy to operate and maintain

• 16pcs cassettes or adapter panel may be install

• Max capacity: 16 x 6-port-MTP

• Meet to ROHS, 2002/95/EC, TIA/EIA568C, ISO/IEC11801, EN501733

Quick Details:

Model Number:MPO Patch Panel

MPO Patch Cord Model:MPO fiber cable

Application:Datacent backbone cabling

Datacent backbone cabling:12-144

Working temperature:-20°C~+60°C

MPO Pre-terminated cabling system solution

Custom made for you by K&M. It is custom made for your datacenter

and other high-end cabling solution with pre-termination MPO.

K&M MPO adopts Corning Clear Curve series OM3/OM4 fiber cable, plus

the connectors from US Connector MTP products. All the production is

done in K&M factory facility to ensure the system performance and

Quality.

 Modular and snapping fit design, which offer great convenience to installers

at the site for installations as well as future maintenances and services.

With the universal system and MPO interface, it will provide trouble-free

connection between fiber cable and equipments as well as ensure the channel

has the best flexibility, compatibility and reliability.



Product line construction

K&M pre-terminated MPO to SC/UPC Optic Patch Cord series offers the solution from

trunk cables to extended trunk cables, to hybrid trunk cables, to cassette modules,

to MPO adapter panels, to direct patch panels, to patch panels in both MPO

classification of G class(normal class) and L class(super low loss).

 Applications:

Ideal for high density datacenter application, choice from 12 to 144-fiber cable

Adopt MTP/MPO connectors’ single 12-fiber push/pull connector.

Custom made cable length.

Pre-wrapped cable pulling eye provide additional protection to the cable during shipping.

Cable distribution protection devise, ensure easy cable laying and neat installation.

Pre-terminated cables can take 450N pulling force when installed in the slots.

Available in LSZH,OFNR,OFNP, all can be custom made.  Single Mode MPO
