Listed Gel-Free LSZH Loose Tube Cable

Listed Gel-Free LSZH Loose Tube Cable are designed for use in traditional network communication infrastructures deployed in environments requiring the performance
of outside plant cabling, while offering the safety of a listed low smoke zero halogen solution. Applications in confined spaces such as tunnels and mine shafts require low
smoke zero halogen materials to enhance life safety and minimize damage to sensitive electronic equipment in the event of a fire. Additionally, AFL’s product line incorporates the latest dry water-absorption technology within the fiber-containing buffer tubes which results in user-friendly handling of fibers during routing and termination.

Loose Tube Stranding Cable
  • Loose Tube Stranding Cable

  • Product Orgin:

    Shenzhen,China

  • Brand:

    K&M

  • Item NO.:

    KDM-lOOSE Tube Stran

  • Shipping Port:

    ShenZhen/HK

  • Payment:

    T/T

  • Price:

    $28.7/100M

  • Market Price:

    $32

  • Price Range:

    500-1000/27.8$

  • Color:

    As your requirement

  • Lead Time:

    2 Weeks after remittance
Contact Now
  • Features & Benefits

Listed Gel-Free LSZH Loose Tube Cable (LL Series Gel-Free SJ)


Specifications:


  • OFNG-LS Listed, CSA-FT4, IEEE1202 and UL1685
  • Meets requirements of NFPA 130 and 502 for use in fixed guideway transit systems and road tunnesls
  • ANSI/ICEA, S-104-696, Telcordia and GR-20-CORE
  • Sunlight Resistant Jacket
  • Oil Res II Compliant Jacketing System
  • Zero Halogen Per MIL PRF 85045



Features:



  • OFN(C)G-LS allows for use in OSP and inside plant pathways
  • Gel-free buffer tubes reduce fiber prep termination time
  • SZ-stranded cable core for easy mid-span access of fibers
  • UV-stabilized outer jacket for long-term performance in outdoor applications
  • 6 to 288 fibers allow for specific cable choices for multiple applications




Applications Network Connectivity for:

  • Oil and Gas fields
  • Low Temperature Environments
  • Refineries
  • Mining
  • Mass Transit

Temperature Specifications:


TEMPERATURE RANGE
INSTALLATION -30ºC to +70ºC
OPERATING  -40ºC to +70ºC
STORAGE -40ºC to +75ºC

Mechanical:

Parameter  Value
Crush  440N/CM
Cold Impact 8.8 N*m
Tensile
Installation 		1,000 lbs (4,450N)
Operational 400 lbs (1,780N）

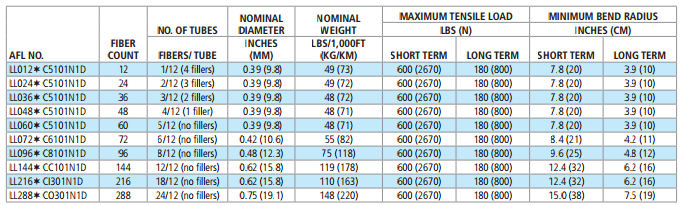

Cable Components:

Fiber Specification:


Note: Diameter and weight subject to change without notice

Fiber Types – Replace asterisk, in AFL number with number corresponding to desired fiber type below.

5 = 50/125 µm multimode GIGA-Link™ 600

7 = 50/125 µm multimode GIGA-Link™ 2000

6 = 62.5/125 µm multimode GIGA-Link™ 300

8 = 62.5/125 µm multimode GIGA-Link™ 1000

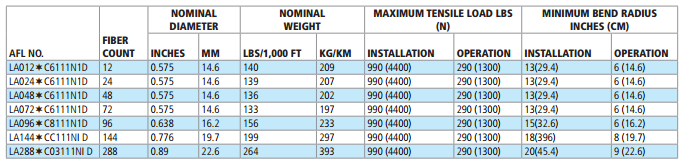

Ordering Information:
