Brand:
K&MItem NO.:
KDMGYXTW12Shipping Port:
Shenzhen/HongKongPayment:
T/T ,L/C,West Union,PayPalLead Time:
2 weeks

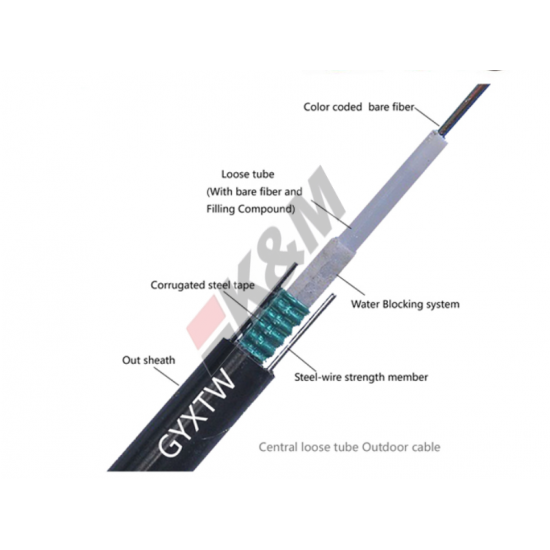

STRUCTURE SPECIFICATION
LTEMS |
DESCRIPTION |
|
Fiber count |
2-12F |
|
Loose Tube |
OD(mm): |
2.2±0.1 |
Material: |
PBT |
|
Water Block Material: |
Water blocking Compound |
|
Armored |
Corrugation Steel tape |
|
Strength Number(steel) |
0.9mm*2 |
|
Sheath |
Thickness: |
Non. 2.2mm |
Material: |
PE |
|
OD of cable (mm) |
8.0 |
|
Net weight ( kg/km) |
68 |
FIBER IDENTIFICATION
NO. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
Fiber Color |
Blue |
Orange |
Green |
Brown |
Slate |
natural |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
OPTICAL FIBER
Single Mode Fiber
LTEMS |
UNITS |
SPECIFICATION |
||
Fiber type |
|
G652D |
G657A |
|
Attenuation |
dB/km |
1310nm ≤ 0.36 1550nm ≤ 0.22 |
||
Chromatic Dispersion |
ps/nm.km |
1310nm≤ 3.5 1550nm≤ 18 1625nm≤ 22 |
||
Zero Dispersion Slope |
ps/nm2.km |
≤ 0.092 |
||
Zero Dispersion Wavelength |
nm |
1300 ~ 1324 |
||
Cut-off Wavelength (lcc) |
nm |
≤ 1260 |
||
Attenuation vs. Bending (60mm x100turns) |
dB |
(30mm radius,100ring )≤ 0.1 @ 1625nm |
(10mm radius,1ring)≤ 1.5 @ 1625nm |
|
Mode Field Diameter |
mm |
9.2 ± 0.4 at 1310nm |
9.2 ± 0.4 at 1310nm |
|
Core-Clad Concentricity |
mm |
≤ 0.5 |
≤ 0.5 |
|
Cladding Diameter |
mm |
125±1 |
125±1 |
|
Cladding Non-circularity |
% |
≤ 0.8 |
≤ 0.8 |
|
Coating Diameter |
mm |
245±5 |
245±5 |
|
Proof Test |
Gpa |
≥ 0.69 |
≥ 0.69 |
|
Multi-Mode Fiber
LTEMS
UNITS
SPECIFICATION
62.5/125
50/125
OM3-150
OM3-300
OM4-550
Fiber Core Diameter
μm
62.5±2.5
50.0±2.5
50.0±2.5
Fiber Core Non-circularity
%
≤6.0
≤6.0
≤6.0
Cladding Diameter
μm
125.0±1.0
125.0±1.0
125.0±1.0
Cladding Non-circularity
%
≤2.0
≤2.0
≤2.0
Coating Diameter
μm
245±10
245±10
245±10
C0at-Clad Concentricity
μm
≤12.0
≤12.0
≤12.0
Coating Non-circularity
%
≤8.0
≤8.0
≤8.0
Core-Clad Concentricity
μm
≤1.5
≤1.5
≤1.5
Attenuation
850nm
dB/km
3.0
3.0
3.0
1300nm
dB/km
1.5
1.5
1.5
OFL
850nm
MHz﹒km
≥160
≥200
≥700
≥1500
≥3500
1300nm
MHz﹒km
≥300
≥400
≥500
≥500
≥500
The biggest theory numerical aperture
/
0.275±0.015
0.200±0.015
0.200±0.015
|
|||||||||
|
|||||||||
|
