FTTH FLAT DROP CABLE(2-4 Fibres)

Drop cable all dielectric for Fibre To The Home (FTTH or FTTx) application containing from 1 to 4 250µm individually coloured single mode optical fibres. The cable contains two  Fibre Reinforced Plastic (FRP) strength members and Low Smoke Zero Halogen (LSZH) jacket with nominal dimension 2.0 x 3.0 mm Flat.

FIBER OPTIC DROP CABLE
  • FIBER OPTIC DROP CABLE
  • FIBER OPTIC DROP CABLE

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMDROPCABLE2/4SZ

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/LC/WU

  • Price:

    $72/KM

  • Market Price:

    $77

  • Price Range:

    6000-12000/72$

  • Color:

    White/Black

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits



FIBER OPTIC DROP CABLE:

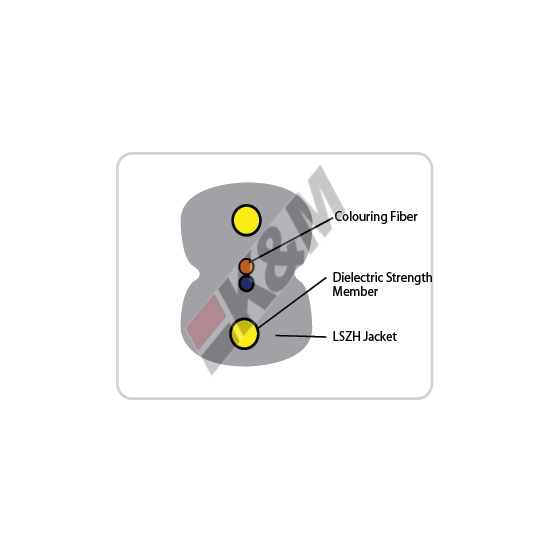

K&M drop flat cable is constructed with two single mode fibers (ITU-T G.657A) protected by dielectric strength member made of fiberglass reinforced plastic (FRP) and a LSZH outer jacket.



Ideal for use in FTTx applications between the building’s main telecommunications room and the apartment/office consolidation point.



Utilizing a 250mm fiber, the cable unit is suitable for use with industry standard connector.

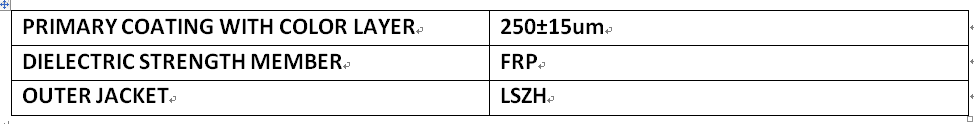

Cable Design Features:



 CABLE REQUIREMENTS:

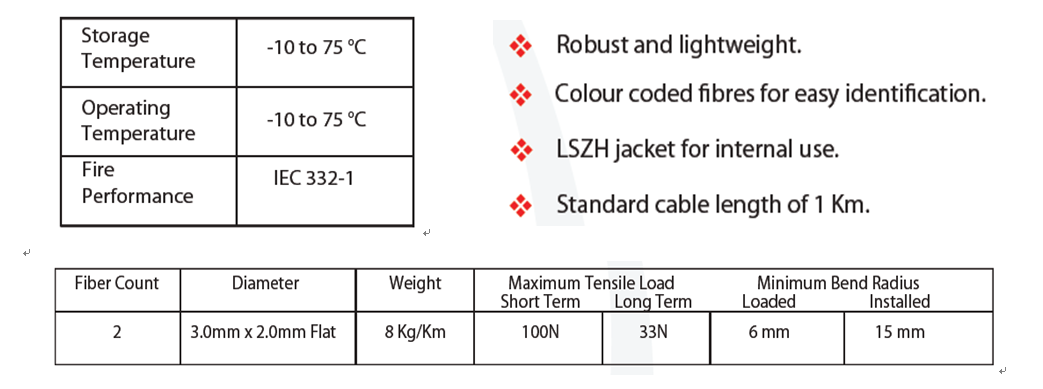

  MECHANICAL / ENVIRONMENTAL PROPERTIES:
