Fiber optic termination box SC SM 24 Ports

K&M's Fiber Termination Box(FTB) is mounted to in&out side wall of building or pole to distribute and connect  optical cable for distribution of subscriber

Fiber optic termination box SC sx 24Ports
  • Fiber optic termination box SC sx 24Ports
  • Fiber optic termination box SC sx 24Ports

  • Product Orgin:

    Shenzhen China

  • Brand:

    K&M

  • Item NO.:

    KDMFTB-SC/LCA-SX-24S

  • Shipping Port:

    Shenzhen/hk

  • Payment:

    TT/WU

  • Price:

    $35/Pcs

  • Market Price:

    $45

  • Price Range:

    500-1000/35$

  • Color:

    Gray

  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

FIBER OPTIC TERMINATION BOX

Fiber optic termination box is a rugged, low profile interconnection unit suitable for all Fiber Optic and FTTx application, specially designed for residential use and it is applicable for large business premises

 Features

  • Indoor/Outdoor type

  • Nonmetallic material

  • Compacted wall mount type

  • Simple and clearly arranged incoming and outgoing cable management

  • Higher fiber count capacity box is available upon request

  • Easy maintenance ,easy access with front door

  • Support both mechanical and fusion splicing

  • Low cost solution with high protection for the terminated fibers

  • IP55 rated for outdoor applications

  • Customized design product is available upon request

  Applications

  • FTTX Systems

  • PON Networks

  • Fiber Optic Termination

  • CATV

 Specification

  • Wall Mounted termination box for indoor/ourdoor use

  • Up to 24 Fiber capacity

  • Optical Splitter mountable:1x2 to 1x16

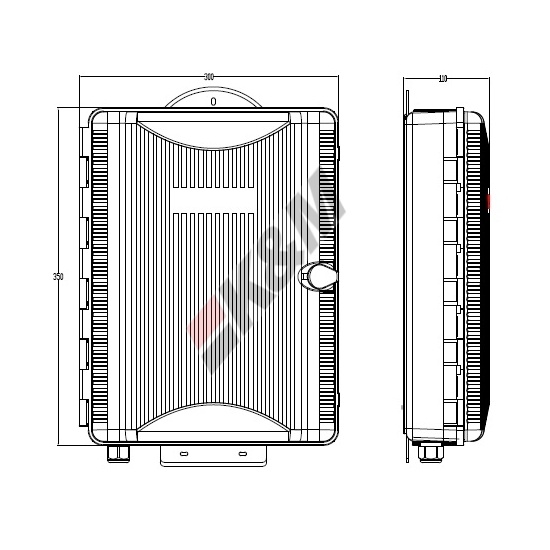

 Dimensions

Description FTB-
Dimensions(WxDxH) 350x300x110mm
Splice Capacity Max.24 Cores
Cable Port In:1-port/Out:3-ports
Cable Dia. Out 3-3.5mm
Color  Ivory/White
Main Body Material Plastic (ABS)/PC+Fiber Glass
Installation Type Wall Type  Outdoor
