Fiber optic termination box 16XSC Modular PLC Splitter 16Ports Simplex

K&M's Fiber Termination Box(FTB) is mounted to in&out side wall of building or pole to distribute and connect  optical cable for distribution of subscriber

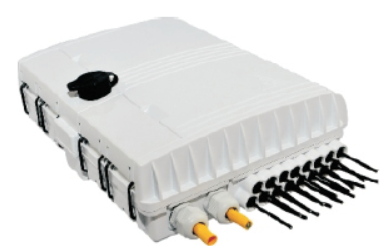

SC Simplex Fiber optic termination box 16 Cores
  • SC Simplex Fiber optic termination box 16 Cores
  • SC Simplex Fiber optic termination box 16 Cores
  • SC Simplex Fiber optic termination box 16 Cores
  • Product Orgin:

    Shenzhen China
  • Brand:

    K&M
  • Item NO.:

    KDMFTB-SC-SX-16C
  • Shipping Port:

    Shenzhen/hk
  • Payment:

    TT/WU
  • Color:

    Gray
  • Lead Time:

    two weeks
Contact Now
  • Features & Benefits

 FIBER Termination BoxFTTH Box

Fiber Termination Box (FTB) is mounted to in & out side wall of building or pole to distribute and connect optical cable for distribution of subscriber ,the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network

Features

  • Indoor/Outdoor type
  • Nonmetallic material
  • Compacted wall mount type
  • Simple and clearly arranged incoming and outgoing cable management
  • Higher fiber count capacity box is available upon request
  • Easy maintenance ,easy access with front door
  • Support both mechanical and fusion splicing
  • Low cost solution with high protection for the terminated fibers
  • IP65 rated for outdoor applications
  • Customized design product is available upon request

  Applications

  • FTTX Systems
  • PON Networks
  • Fiber Optic Termination
  • CATV

 Specification

  • Wall Mounted termination box for indoor/outdoor use
  • Up to 16  Fiber capacity LC duplex(16Pcs) or 16 fiber SC Simplex
  • Available for SC Simplex Adaptors or LC duplex

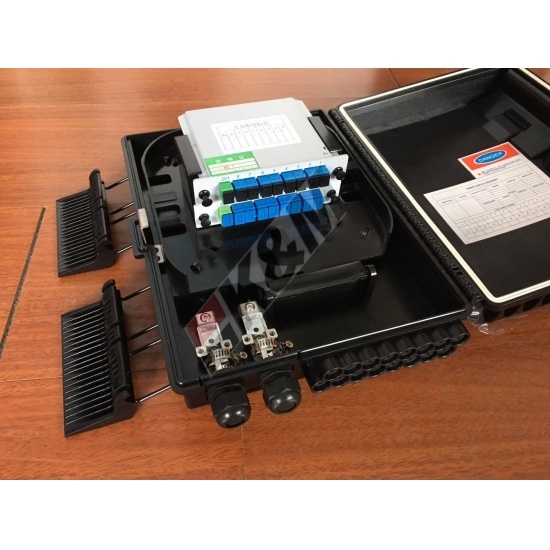

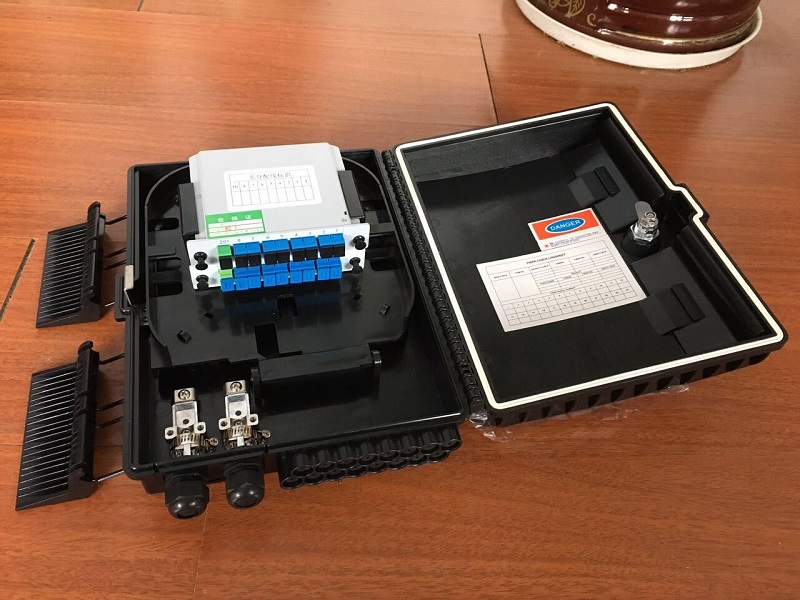

  • Available install 1x16 Modular type PLC Splitters as required

 Dimensions

Description

FTB-16SC-SX/16LC-DX

Dimensions (WxDxH)

292x218x83mm

Splice Capacity

Max.16Cores SC/ LC DX

Cable Port

In:1-port (¢12mm)/Out:16-port (¢3-6mm)

Color

Ivory/White

Main Body Material

Plastic: ABS+PC

Installation Type

Wall /Pole Type Outdoor










Order information

Name

Ordering code

Model

Max.Capacity

(splicing/terminal)

Dimension (HxWxD)(mm)

Remark

Fiber access terminal

210309716

FAT16SC-SX/16LC-DX-16C

16Cores (SC SX adapter 16PCS)

PLC 1X16 modular type



292x218x83mm

Outdoor

End
